LCD Touch Screen Furniture Testing Machines , Automatic Foams Ball Rebound Tester

LCD Touch Screen Furniture Testing Machines , Automatic Foams Ball Rebound Tester
LCD Touch Screen Furniture Testing Machines , Automatic Foams Ball Rebound Tester
video play

Large Image :  LCD Touch Screen Furniture Testing Machines , Automatic Foams Ball Rebound Tester

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE,SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-F754
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power: Electronic Product Name: Furniture Testing Equipment
Use: Foams Ball Rebound Interface: LCD Touch Screen
Diameter Of Iron Ball: 16±0.05 Mm Ball Rebound Accuracy: <0.5%
High Light:

furniture testing equipment

,

fatigue testing equipment

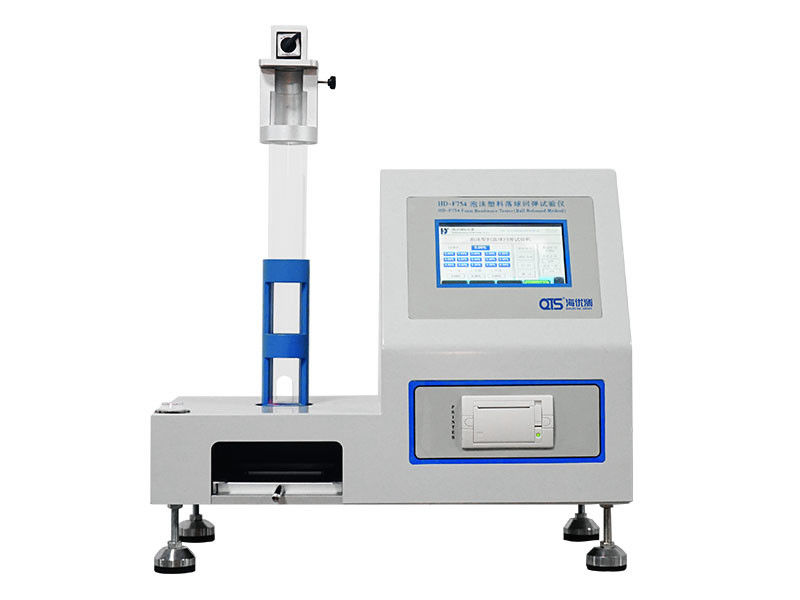

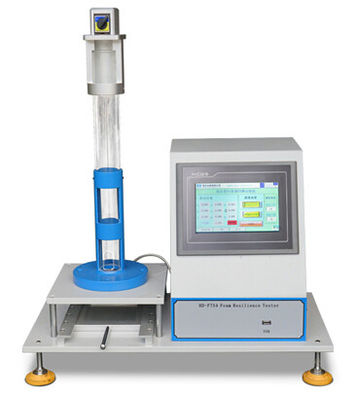

LCD Touch Screen Furniture Testing Machines , Automatic Foams Ball Rebound Tester



Foams Ball Rebound Tester
1. LCD Touch screen interface
2. According to ASTM D3574 and ISO 8307
3. Automatic calculate result



The Usage

Foams Ball Rebound Tester is designed and manufactured in accordance with ASTM GB/T6670-2008, American Standard D3574and ISO8307 testing standards. And it suits for testing rebound performance of soft polyurethane foam ball. The tester through a given diameter and weight of iron ball dropping on foam sample at a certain height, and then calculate the percentage between maximum height of iron ball rebound and the height of iron ball dropping, this percentage is also called resilience ratio . Resilience ratio means foam rebound performance of poly foam. The tester adopts the microprocessor control, Chinese liquid crystal display, and it can print the test result. The tester is safe, reliable, with high measuring precision.



Foams Ball Rebound Tester Parameter:

1. Distance of iron ball dropping

460+0.5%mm ( GB)

500+0.5%mm ( American Standard )

2. Diameter of iron ball 16±0.05 mm
3. Ball rebound accuracy <0.5%
4. Dimension of specimen 100 mm(L) ×100 mm(W) × 50mm(H)

6. Automatic calculation of average rebound height

7. Configuration of Automatic calculation of average resilience ratio

8. One set of tester (including release mechanism, capture mechanism and height adjustment mechanism)

9. One set of electro-optical distance measurement sensor

10. One set of control box(Chinese LCD display)

11. One set of micro type printer(desktop)



The Introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
