Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Product Name: | Furniture Testing Equipment |
|---|---|---|---|
| Type: | Office Chair Back Durability Tester | Height Of Seat Back: | 500~1200 Mm |
| Air Pressure: | 0~150 Ib | Stroke: | 0~18 In |
| High Light: | furniture testing equipment,fatigue testing equipment |
||

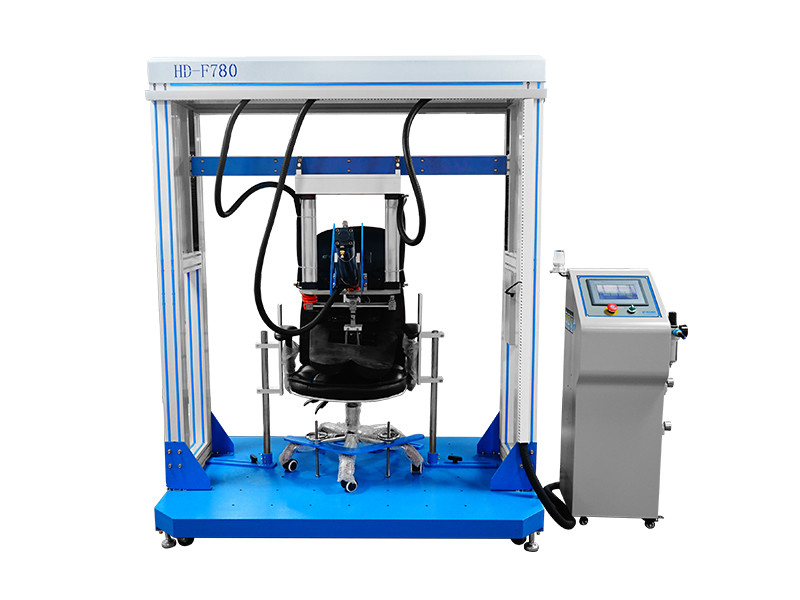

Professional Furniture Testing Machines For Office Chair Back Durability
GENERL SPECIFICATIONS
Machine Dimensions: (W x D x H) 2750*1510*1350 mm
Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)
Gross Weight: 750kg
EQUIPMENT DESCRIPTION
The machine is designed to test seating and back by specified load block with setting force and speed to assess chair seating and back durability.
DESIGN STANDARD: EN 1728; EN 1335; BifmaX5.4
STANDARD FEATURES
| Item | Description |
| Back Sensor | 200KG |
| Seat Sensor | 500KG |
| Force Actuator Height(Adjustable) | 500-1200mm |
| Test Sample Seat Height (Adjustable) | 300～600mm |
| Control system | PLC, Programmable controller |
| Display | Touch Screen |
| Back load | 50~110KG |
| Seat load | 100~300KG |
| Air Power | ≥0.6MPa |
| Test speed(Adjustable) | 1～30 time /min |
| Test Times(Adjustable) | 1~999999times |
CONFIGURATION:
| Configuration | Name | Details |
|
Items |
Documents |
Operation Manual*1 piece; Factory Inspection Report*1piece; Operation Video in USB flash disk with machine*1 piece |
| Power line | 1 piece | |
| Plug | 1 piece(Per your local plug standard) | |
| USB flash disk | 1G capacity *1 piece | |
| Air Pipe | 1 piece | |
| Load Sensor | 200kg Capacity *1 piece | |
| Load Sensor | 500kg Capacity *1 piece | |
| Screw combination | 2 Sets | |
| PLC System | 1 set | |
| Cylinder | 2 sets | |
| “L” type Chair blocker | 2 sets | |
| Back Plate | 1 piece | |
| Chair leg Ficture | Leg *1 piece; Arm*1 piece; Seat *1 pieces |
HAIDA INTRODUCTION
Founded in 2004, HAIDA Group is the recognized Dongguan, China market leader in the testing equipment industry, having four main manufacture series: Accelerated Environmental Series , Universal Tensile Machine , Paper & Packaging , Foam, Furniture & Optical, also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.
WHY CHOOSE US?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Contact Person: Kelly
