Power: | Electronic | Product Name: | Environmental Testing Chambers |
---|---|---|---|
Type: | Xenon Aging Testing Machine | Model: | HD-E711-1 |
Studio Size (mm): | 750*500*600mm | Rainfall Time: | 1~9999min, Adjustable |
Highlight: | environmental testing equipment,environmental testing machine |

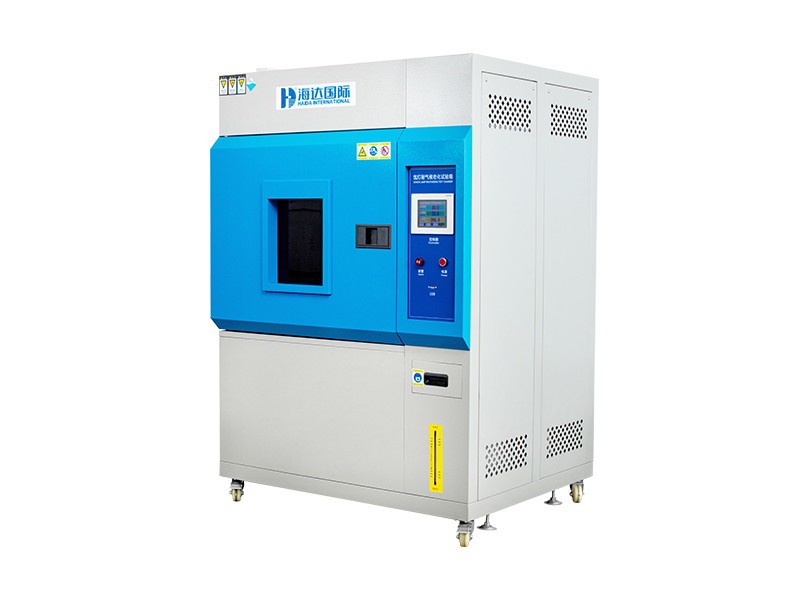

Environmental Test Chambers Test/Humidity/Climatic Change Xenon Aging Testing Machine
The Usage:
Xenon aging testing machine is to test the product undergone illumination / rain / condensation / temperature / humidity / wind and any other climatic changes. This aging tester mainly for the test of non-ferrous / organic / rubber / plastic and building materials. It can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.
The Certification:
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
Specifications:
Studio size (mm) | 750*500*600mm |
External size (mm) | 1350X1200X1750 (length × depth × height) |
Temperature range | normal temperature ~80℃ |
Humidity range | light cycle 45% ~ 95% R.H, dark cycle 30% ~ 95% adjustable |
Temperature of the test blackboard | adjustable from 45℃ to 100℃ (deviation ±3℃) |
Temperature fluctuation | ≤±0.5℃ |
Temperature uniformity | ≤±2.0℃ |
Humidity fluctuation | ≤±2% |
Glass filter | borosilicate glass |
Xenon light source | imported air-cooled xenon arc source |
Xenon lamp power | 2.5kw |
Xenon lamp power | 2.5kw ×3 = 5.4kw life of 1200 hours |
Rainfall time | 1 ~ 9999 minutes, continuous rainfall adjustable |
Rainfall cycle | 1 ~ 240 minutes, interval (break) rainfall adjustable |
Spray nozzle aperture | Ф 0.8 mm (return hose ultra-fine filters to prevent the nozzle blocking) |
Spraying period (spraying time/no spraying time) | 18min/102min or 12min/48min(spraying time/no spraying time) spraying pressure 0.12 ~ 0.15mpa |
Water pressure | 0.12 ~ 0.15kpa |
Sample rack | sample tray size 75×300mm |
Continuous adjustable duration of illumination cycle | 1 ~ 999 hours |
Xenon lamp spectral wavelength | 290nm ~ 800nm adjustable |
The irradiance range | 500W ~ 1200W/㎡(adjustable) |
Distance from arc center to sample | 250 ~ 300mm |
Effective exposure area | 6400C㎡ |
Heating power | 4.5kw |
Humidifying power | 3KW |
Refrigeration System:
(1) Refrigeration system and compressor
1. Refrigeration compressor: the original imported French "Taikang" fully enclosed refrigeration unit.
2. Cooling method: air cooling
3. Refrigerant: environmental protection refrigerant
4. Main refrigeration accessories: Japan "Arugong" solenoid valve; American "Emerson" drying filters, etc.
Excellent quality of domestic and foreign well-known brands of air-cooled condenser and fin multi - section evaporator.
(2) Advantages of refrigeration system
1. Improved lubrication performance and lower piston temperature bring greater reliability;
2. Streamline body to improve airflow management; Reduced pressure, improved refrigeration efficiency;
3. Top unloading valve provides continuous minimum discharge line pulse;
4. SENTRONIC provides reliable lubrication protection system;
5. Use of environmentally friendly refrigerants R23, R404A (excluding CFCS) which are not prohibited by the Montreal convention or the amendment to London.
Packaging Details:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
