Paint Type Foam Pounding Fatigue Tester 200kg Max Capacity For Foam Compression Test

Name: Paint Type Foam Pounding Fatigue Tester 200kg Max Capacity For Foam Compression Test
Brand: HAIDA
SKU: HD-F750
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (191 reviews)

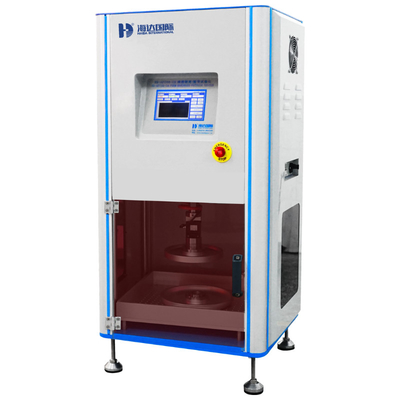

Large Image : Paint Type Foam Pounding Fatigue Tester 200kg Max Capacity For Foam Compression Test

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	CE，ISO
Model Number:	HD-F750

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	30 Sets per Month Haida

Contact Now

Detailed Product Description

Max Capacity:	200kg	Plane Plate:	Holes Diameter 6mm, Space 20mm
Speed:	(70 ± 5) Times Per Minute.(adjustable)	Display:	LCD Touch Screen
Dimension(L×W×H):	600×500×800mm	Power:	AC220V±10%, 50/60Hz, Single Phase
High Light:	Paint Type Foam Pounding Fatigue Tester , 200kg Capacity Foam Pounding Fatigue Tester , Foam Pounding Fatigue Tester

Paint Type Foam Pounding Fatigue Tester 200kg Max Capacity For Foam Compression Test

PRODUCT DESCRIPTION

The machine is used to test foam fatigue by repeating indentation of a test piece, the maximum load reached during each cycle being kept within specified limits. The machine test foam hardness and height before fatigue test and also hardness change and height loss after pounding fatigue test.

APPLICATION STANDARDS: ASTM D3574, ISO 3385

Paint Type Foam Pounding Fatigue Tester 200kg Max Capacity For Foam Compression Test 0

STANDARD FEATURES

Max capacity	200kg
Plane plate	Holes diameter 6mm, space 20mm
Indentor	Having an overall diameter of 250 mm± 1 mm with a 25 mm± 1 mm radius at its lower edge, provided with a device for applying a maximum force of 750 N ± 20 N during one loading cycle.
Speed	(70 ± 5) times per minute.(adjustable)
Sample size	Test pieces shall be right parallelepipeds having sides of length 380 mm± 20 mm and a thickness of 50 mm± 2 mm.
Counter	6 digits cycle counter for test cycle setting
Display	LCD touch screen
Additional function	Adjust the test position during testing to compensate the force automatically
Dimension(L×W×H)	600×500×800mm
Power	AC220V±10%,50/60Hz,single phase

ABOUT US

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

WHY CHOOSE US?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
