Electronic Environmental Test Chambers , Water Spray Test Machine

Brand Name:	HAIDA
Model Number:	HD-E710
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Power:

Electronic

Product Name:

Environmental Testing Chambers

Meet Standard:

GB10485-89

Spray Ring Radius:

375 And 500mm

Aperture Spacing:

500mm

Controlle:

Import FM Type Inverter

Power Supply::

110V, 60HZ

Controller::

Import FM Type Inverter

Water Pressure Control::

Flow Gauge

Swing Pipe ::

±45°,±60°,±90°,±180°(theory Number)

Supply Ability:

300 Sets per Month Haida

Highlight:

environmental testing equipment

environmental testing machine

Product Description

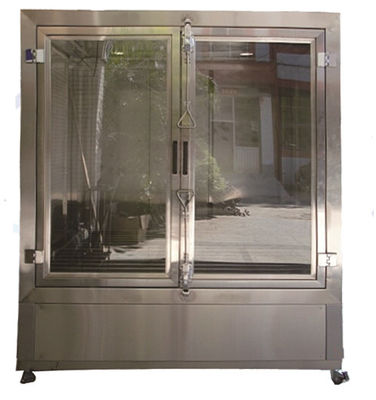

Electronic Environmental Test Chambers , Water Spray Test Machine

Application:

The product is suitable for testing the adaptability and reliability of electrical and electronic products, materials, spare parts, etc, in the condition of rain and temperature. Can also be used to external lighting and signal device and vehicle lamps shell protection.

Feature:

1. Studio equipped with lighting equipment

2. Rain time, interval time, rainfall intensity, regulate and control apart.

The Main Technical Parameters:

Spray ring radius	375 and 500mm
Aperture spacing	500mm
Swing pipe	±45°,±60°,±90°,±180°(theory number)
Water pipe diameter	φ16mm
Spray orifice diameter	φ0.4mm
Test stands rotate speed	1r/min(can be no quarter speed adjustment)
Controller	Import FM type inverter
Times controller	Import programmable computer integrated time controller (Jin Zhong Mo le)
Water pressure control	flow gauge
Observation plane	Large area of toughened glass door visualization,Water supply system, booster pump, water storage,Safety protection leakage, Short circuit, Motor overheating
Power supply	110V, 60HZ

Chamber Structure:

The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.

Large area of visible glass door, easy to observe the test specimens in the testing chamber

The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.

With 270 degree swing pipe & 360 degrees whorl pole water jet device.

Adjustable speed samples stage.

Control System:

(Germany) admiralty. Per stig moller programmable controller to complete the contrl of the whole system of time and sequence.Adopt imported frequency converter speed effectively guarantee the test according to the standard operation.

Meet Standard: GB10485-89
