Temperature And Humidity Test Chamber/Walk In Chamber With Environmental

Temperature And Humidity Test Chamber/Walk In Chamber With Environmental
Temperature And Humidity Test Chamber/Walk In Chamber With Environmental Temperature And Humidity Test Chamber/Walk In Chamber With Environmental Temperature And Humidity Test Chamber/Walk In Chamber With Environmental

Large Image :  Temperature And Humidity Test Chamber/Walk In Chamber With Environmental

Product Details:

Place of Origin: China
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-E705-7

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: FOAM.WOOD BOX
Delivery Time: 8 WORKING DAYS AFTER COMFIRED THE ORDER
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 SET / MONTH
Detailed Product Description
Temperature Range: -50c To +100c Dimension (Internal) (w X D X H): 1500 X 1500 X 3000 Mm
Dimension (External) (w X D X H): 2850 X 1700 X 3200 Mm Accuracy: Temp. ±1c, Humidity ±2.5%Rh
Product Name: Walk In Chamber
High Light:

humidity temperature test chamber

,

environmental testing machine

Temperature And Humidity Test Chamber/Walk In Chamber With Environmental





HD-E705-7 Walk-in Chamber.pdf



Walk In Chamber Ovreview:
walk in chamber is a environment test chamber with temperature and humidity testing.walk in chamber can accurately simulate low-temperature, high temperature, high temperature and humidity, low temperature and humidity and other complex natural environment, applicable to plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries in the reliability of product testing.

This  walk in chamber have a large chamber size (2850 x 1700 x 3200 Mm) for diffirence products to make a test.and it is easy to operate with touch screen system.and you will observe the sample testing by viewing windows.


Walk In Chamber Application Test Items:

walk in chamber main for testing the performance of materials in a variety of environments tempearetures heat resistance test , cold resistance test , dry resistance test, humidity resistance test.


Walk In Chamber Application Metarial or Industry:

walk in chamber suitable for electronics, electrical appliances, mobile phones, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products in different temperature and humidity environment quality testing.


Test Standard(including but not limited to... ):
Compliance with ASTM G53-77 specifications GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS and SAE.



Specifications:

Sr No Specification Hd-e705-7-1
1 Temperature Range -50c To +100c
2 Humidity Range 40% To 98% Rh
3 Dimension (Internal) (w x d x h) 1500 x 1500 x 3000 Mm
4 Dimension (External) (w x d x h) 2850 x 1700 x 3200 Mm
5 Ramp

Variable, Temp. 0~5c / Min & Humidity 0~5%/Min
In Average, No Load

6 Accuracy Temp. ±1c, Humidity ±2.5%Rh
7 Interior Walls Stainless Steel 304
8 Exterior Walls Cold Rolled Stell Plate With Baking Finish
9 Temperature & Humidity Measurement And Controller

32 Bit Control And Monitoring System.
Interface Facility With Rs232
Programmable Temp. Humid. Controller

10 Viewing Window Multi Pane Glass Window Size
11 Port Holes 50 Mm Diameter For Wire Routing
12 Power Supply Requirement Three Phase, Ac380 v ± 10 %, 50 Hz
13 Sound Pressure Level <72db (a)
14 Condenser Cooling Water Cooled

 (The above parameters are machine standard parameters and can be customized according to your requirements)

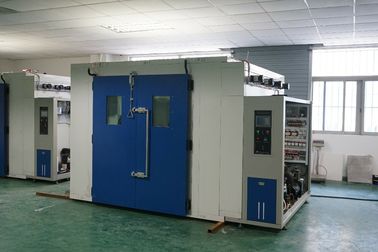

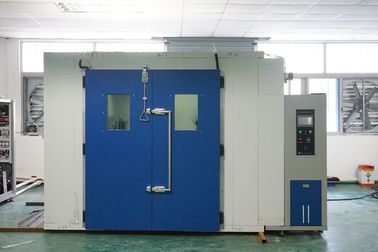

Chamber Pictures:
Walk In Chamber   walk in chamber
