| Internal Dimension (W*D*H): | 400*500*500mm | External Dimension (W*D*H): | 600*1080*1380mm |
|---|---|---|---|
| Temperature Range: | -40~+150℃ | Temperature Fluctuation: | ±0.5℃ |
| Temperature Uniformity: | 2℃ | Humidity Range: | 20~98%RH (Refer Image Below) |
| Highlight: | 100L Climatic Test Chamber,Programmable Climatic Test Chamber,68 dBA Climatic Test Chamber |
||

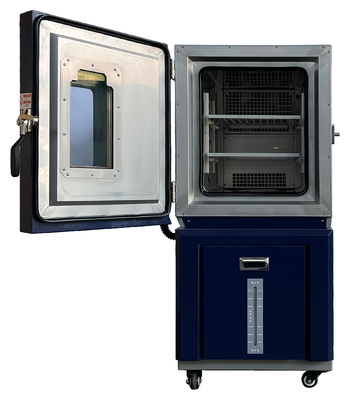

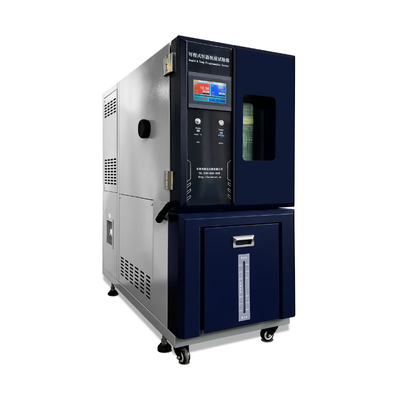

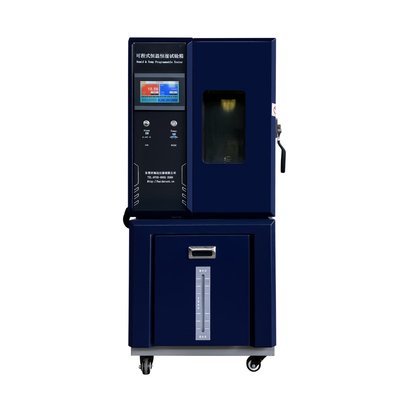

CE Approved 100L Programmable Automatic Touch Screen Paint type Climatic Test Chamber
HD-E702-100 Temperature & humidity test chamber.pd...
Applications
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
Chamber Design Features
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain
Programmable Controller
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
Standard Features
| Model | HD-E702-100 |
| Internal dimension (W*D*H) | 400*500*500mm |
| External dimension (W*D*H) | 600*1080*1380mm |
| Temperature range | -40~+150℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | 2℃ |
| Humidity range | 20~98%RH (Refer Image below) |
| Humidity fluctuation | ±2.5%RH |
| Humidity uniformity | 3%RH |
| Cooling speed | 1℃/min in average (without loading) |
| Heating speed | 3℃/min in average (without loading) |
| Internal chamber material | SUS#304 stainless steel, mirror finished |
| External chamber material | Stainless steel |
| Cooling method | Air cooling |
| Controller |
LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
| Compressor | France Tecumseh compressor |
| Lighting | Heat resistance |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS#304 stainless steel, 2pcs |
| Safety protection device |
Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
