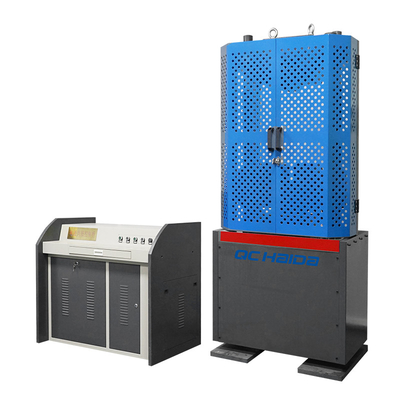

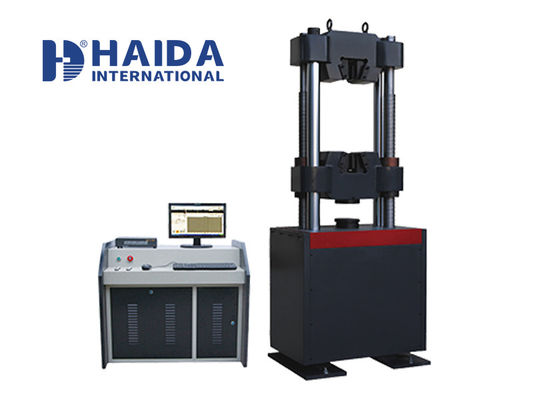

30T-200T Standing Double Column Tensile Test Using Universal Testing Machine

30T-200T Standing Double Column Tensile Test Using Universal Testing Machine
30T-200T Standing Double Column Tensile Test Using Universal Testing Machine
video play

Large Image :  30T-200T Standing Double Column Tensile Test Using Universal Testing Machine

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-B616
Power: Electric
Port: ShenZhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Frame Capacity: 200T Measure Range: 4%-100%F.S
Load Cell Brand: Oil Pressure Sensor, China Brand 200T (30T, 60T, 100T Are Optional) Load Accuracy: 1% F.S
Available Tensile Stroke: 900mm Available Compression Stroke: 800mm
Test Speed: 50mm/min Round Sample Diameter: Φ15-φ70mm
Flat Sample Thickness: 0-50mm Flat Sample Width: 125mm
High Light:

Tensile Universal Testing Machine

,

Double Column Universal Testing Machine

,

200T Standing Tensile Testing Machines

30T-200T Standing Double Column Tensile Test Using Universal Testing Machine





Applications

Tested sample: wood, steel sheet, steel rod, wire, screw and other metal materials.

Different test with different grips: tensile, bend, compression, shear test.

Software can issue report with results for max. force, elongation, tensile strength, compression strength, bend strength, etc.



Steel bar tensile testing machine can perform tensile, compression, bending, shearing, tearing, peeling and other tests on steel materials, calculate the maximum force, yield force, average peel force, maximum deformation, yield point, elastic modulus, etc.



Standard Features



Frame capacity 200T
Measure range 4%-100%F.S
Load cell brand

Oil pressure sensor, China brand

200T (30T, 60T, 100T are optional)

Load accuracy 1% F.S
Available tensile stroke 900mm
Available compression stroke 800mm
Test speed 50mm/min
Round sample diameter Φ15-φ70mm
Flat sample thickness 0-50mm
Flat sample width 125mm
Horizontal test space 700mm
Compression diameter Φ204mm
Operation control Hydraulic
Display PC
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength etc…
Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat



Shipment :

FOB SHENZHEN or GUANGZHOU

Delivery Terms:

Shipment for the above equipments is X-X days after mutually agreed terms and conditions of your order

Payment:

50 % Advance and balance payment before delivery of goods

Validity:

This quote is firm for 30 days

Warranty:

One-year warranty on all nonexpendable parts, labor is not covered. Warranty coverage excludes shipment
