Programmable Tensile Tester Machine Computerized Single Column Controllable

Programmable Single Column Controllable Universal Computerized Tensile Testing Machine

Applications

Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.

Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.

Deformation under defined load: Test deformation under defined load of tested sample

Load under defined deformation: Test load under defined deformation of tested sample

Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

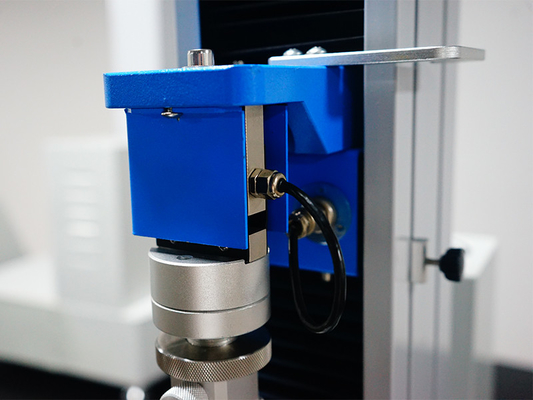

This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.

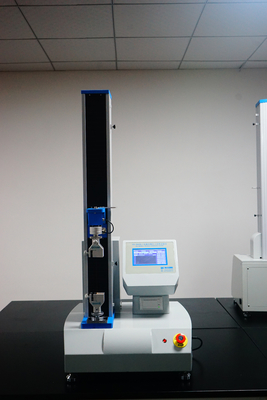

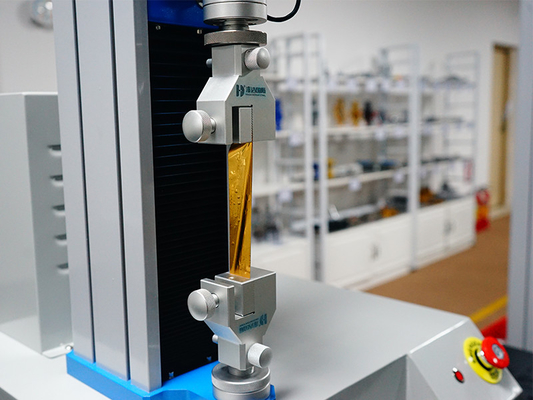

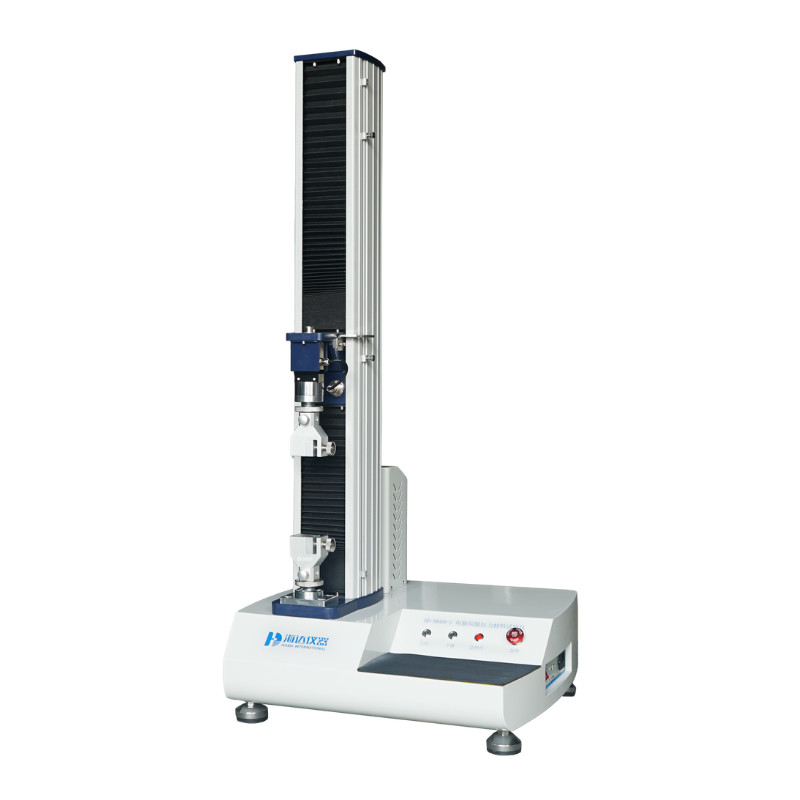

Product Image:



Product Features:

1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)
2. Control system: Microcomputer
3. Displacement resolution: 0.001mm
4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.

HAIDA TEST EQUIPMENT TEST STANDARDS FOR SHARING
Adhesives Tape/Pressure Sensitive Tape
EN 1719: Loop Tack Test
ASTM D3654: Shear Adhesion Test
ASTM D3759: Tensile &Elongation Test
FTM: 180&90 Degree Peel Test, Loop Tack
EN 1939, ASTM D3330: 180&90 Degree Peel Test
ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test

Adhesive
ASTM D903: Peel & Stripping Test
ASTM D1002: Shear Strength (Adhesive for metal to metal)
ISO 4587: Tensile lap-shear strength (Rigid-to-rigid bonded assemblies)

Film/Plastic Film
ASTM D882: Tensile Test
ASTM F1306: Puncture Test
ASTM D1938: Trouser Tear Test
ASTM D2732: Thermal Shrinkage Test
ASTM D1709, ISO 7765-1: Free-Falling Dart Method
ASTM D1894: Static and Kinetic Coefficients of Friction
ASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test

Plastic& Plastic Pipe
ISO 180: Izod Impact Test
ISO 9966: Ring Stiffness Test
ISO 179: Charpy Impact Test
ISO 4892: Weathering Aging Test
ASTM D3163: Plastic Lap-Shear Test
ISO 4422, ISO 3127: Pipe Impact Test
ASTM D4565, ISO 11357, EN 728: DSC/OIT
ISO 75: Heat Deflection Temperature (HDT)
ASTM D1598: Hydrostatic Pressure and Burst Test
ISO 1133, ASTM D1238: Melt Flow Rate Test (MFR/MVR)
ASTM D790, ISO 178, ISO 14125, ASTM D6272: Bend Test
ISO 306, ASTM D1525: Vicat Softening Temperature (VST)
ASTM D882, ASTM D 638, ISO 527, ASTM D1708: Tensile Test
