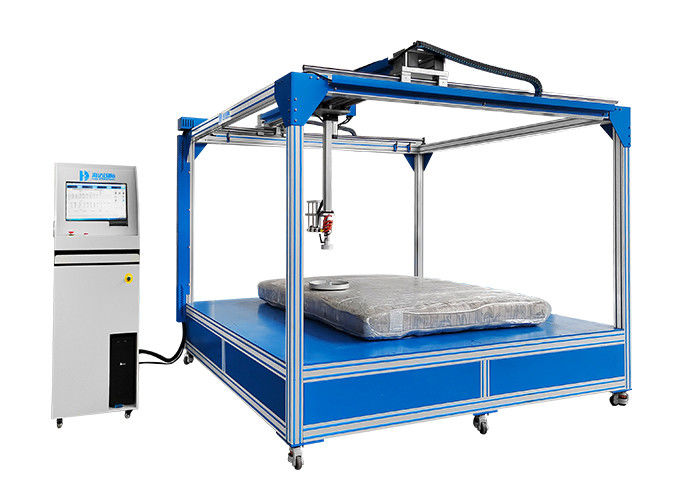

Mattress Fitness And Hardness Testing Machine Computer Control

Mattress Fitness And Hardness Testing Machine Computer Control
Mattress Fitness And Hardness Testing Machine Computer Control Mattress Fitness And Hardness Testing Machine Computer Control Mattress Fitness And Hardness Testing Machine Computer Control

Large Image :  Mattress Fitness And Hardness Testing Machine Computer Control

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,ISO
Model Number: HD-AF701
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 30 Sets per Month Haida
Detailed Product Description
Power: Electronic Load Cell Capacity: 200KG Imported Load Cell
Load Cell Accuracy: ≤0.5% Motor: Panasonic Servo Motor
Driver: 400W Panasonic Servo Driver Screw Rod: Ball Screw
Display: Computer Control Test Speed: 0.1-250mm/s
High Light:

Fitness And Hardness Testing Machine

,

Hardness Testing Machine Computer Control

,

Mattress Hardness Testing Machine

Computer Control 200kg Imported Load Cell Mattress Fitness And Hardness Tester



Machine Instruction:



The mattress fitness and hardness tester is used to test the finished products of spring soft mattress and foam mattress used in home, hotel, etc., and test the hardness, lagging loss rate and fit of mattress. After the test, the grade of sample is evaluated according to the test.



Machine Three Functions:



1. Test Whole Mattress Hardness

2. Test Mattress Surface Hardnessm Core Hardness, Bottom Hardness and Hysteresis Loss Rate

3. Test Mattres Fitness



Machine Advantage:



1. Automatic software operation procedure, no need to move mattress or reset software during test

2. Self developed software, can update accordingly to standard updates

3. No need to measure mattress size in advance, there is steel rule on machine test base can read mattress lenght and width and software can measure mattress thickness

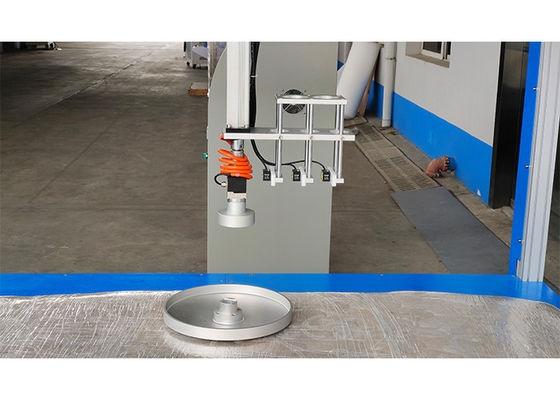

4. Three Panasonic laser displacement sensors, high test accuracy



Technical Parameters:



Indicator

Parameter

load Cell Capacity

200KG imported load cell

Load Cell Accuracy

≤0.5%

Electric Actuator Stroke

500mm

Motor

Panasonic servo motor

Driver

400W Panasonic servo driver

Screw Rod

ball screw

Display

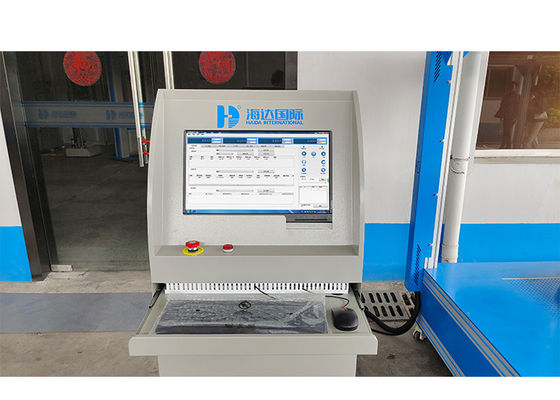

computer control, windows operation

Control Mode

Self developed circuit board and software, closed loop control

Test Speed

0.1-250mm/s (adjustable)

Position Measuring Device

Panasonic laser displacement sensor(3 sets)

Displacement Measuring Accuracy

±1mm

Test Result Display

automatic digital and curve display

Test Times

1~999,999 adjustable

Shutdown Mode

Reach the set number of times, travel limit, test completed, automatic stop

Max sample size

2000*1800*400mm(L*W*H)

Dimensions About 2300*2800*2300mm(L*W*H)

Machine Weight

Around 1000kg
