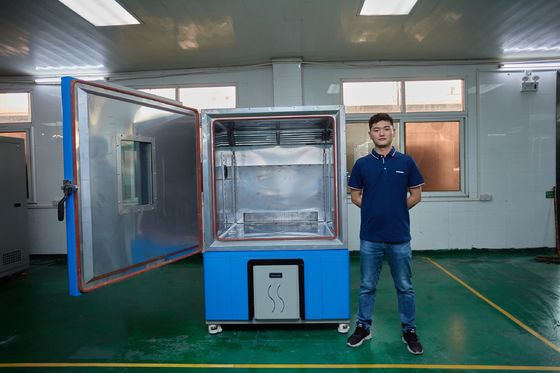

800L Benchtop Simulated Environmental Test Chambers Electrical Materials

800L Benchtop Simulated Environmental Test Chambers Electrical Materials
800L Benchtop Simulated Environmental Test Chambers Electrical Materials 800L Benchtop Simulated Environmental Test Chambers Electrical Materials 800L Benchtop Simulated Environmental Test Chambers Electrical Materials 800L Benchtop Simulated Environmental Test Chambers Electrical Materials

Large Image :  800L Benchtop Simulated Environmental Test Chambers Electrical Materials

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: CE,,ISO
Model Number: HD-E702-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 sets per month
Detailed Product Description
Internal Dimension (W*D*H): 1000*800*1000mm External Dimension (W*D*H): 1500*1180*1900mm
Observation Window: Tempered Glass Testing Hole: 400℃
Sample Tray: SUS#304 Stainless Steel, 2pcs Safety Protection Device: Protection For Leakage
High Light:

environmental testing equipment

,

humidity temperature test chamber

800L Benchtop Simulated Environmental Test Chambers Electrical Materials







APPLICATIONS

1. Simulate the test environment with different temperatures and humidity
2. Cycling tests include climatic conditions: heat preservation test, cooling test, heating test, wetting test and drying test...

3. The cable port is equipped with a flexible silicone plug for cable wiring to provide conditions for the test unit in operation

4. Discover the weakness of the test unit in the short-term test with accelerated time effect





CHAMBER DESIGN FEATURES

1. High performance and quiet running (68 dBA)

2. Space-saving design, which can be installed flush with the wall

3. Fully enclosed and insulated around the door frame

4. A 50mm diameter cable port o left side, with flexible silicone plug

5. Accurate wet/dry-bulb humidity measurement system for easy maintain





PROGRAMMABLE CONTROLLER

1. The PLC controller of the test chamber

2. Step types include: ramp, soak, jump, automatic start and end

3. The RS-232 interface connects to the computer output





 HUMIDITY RANGE

800L Benchtop Simulated Environmental Test Chambers Electrical Materials 0

                      20 to 98%RH per chat (no live load)





STANDARD FEATURES

Model HD-E702-800
Internal dimension (W*D*H) 1000*800*1000mm
External dimension (W*D*H) 1500*1180*1900mm
Temperature range -70~+150℃
Temperature fluctuation ±0.5℃
Temperature uniformity 2℃
Humidity range 20~98%RH (Refer Image below)
Humidity fluctuation ±2.5%RH
Humidity uniformity 3%RH
Cooling speed 1℃/min in average (without loading)
Heating speed 3℃/min in average (without loading)
Internal chamber material

mirror finished

External chamber material Stainless steel
Cooling method Air cooling
Controller

LCD touch screen, programmable control temperature and humidity

Can set different parameter for cyclic test

Insulation material 50mm high density rigid Polyurethane foam
Heater Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor France Tecumseh compressor x 2sets
Lighting Heat resistance
Temperature sensor PT-100 dry and wet bulb sensor
Observation window Tempered glass
Testing hole Diameter 50mm, for cable routing
Safety protection device

Protection for leakage

Over-temperature

Compressor overvoltage and overload

Heater short circuit

Water shortage





PLC OPERATION

800L Benchtop Simulated Environmental Test Chambers Electrical Materials 1





INTERNAL CHAMBER

800L Benchtop Simulated Environmental Test Chambers Electrical Materials 2
