Impact Wear Resistance Chair Drop Impact Tester Adjustable Height

Impact Wear Resistance Chair Drop Impact Tester Adjustable Height
Impact Wear Resistance Chair Drop Impact Tester Adjustable Height
video play

Large Image :  Impact Wear Resistance Chair Drop Impact Tester Adjustable Height

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Haida
Certification: CE,ISO
Model Number: HD-F736A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets per Month Haida
Detailed Product Description
Largest Chair Dimensions Width: 1000mm Chair Seating Height: 200-600mm ( Adjustable)
Adjustable Drop Height: 10mm To 250mm Test Speed: 10~30 Times/min
High Light:

PLC Chair Drop Impact Tester

,

Adjustable 250mm Chair Drop Impact Tester

,

Touch Screen Chair Drop Impact Tester

Impact Wear Resistance Chair Drop Impact Tester Adjustable Height





DESCRIPTION



Test rig for chair drop durability is used to evaluate the ability of the chair to withstand heavy and abusive impact forces on the seat. Chair drop impact tester can also to evaluate the ability of chairs to withstand fatigue stresses and wear caused by downward vertical force(s) on the seat.





GENERL SPECIFICATIONS



Machine Dimensions: (W x D x H) 2750*1510*1350mm

Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)

Gross Weight: 820kg

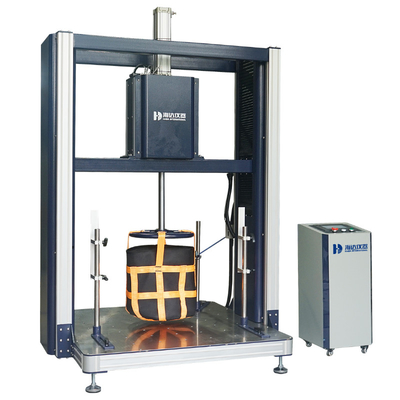

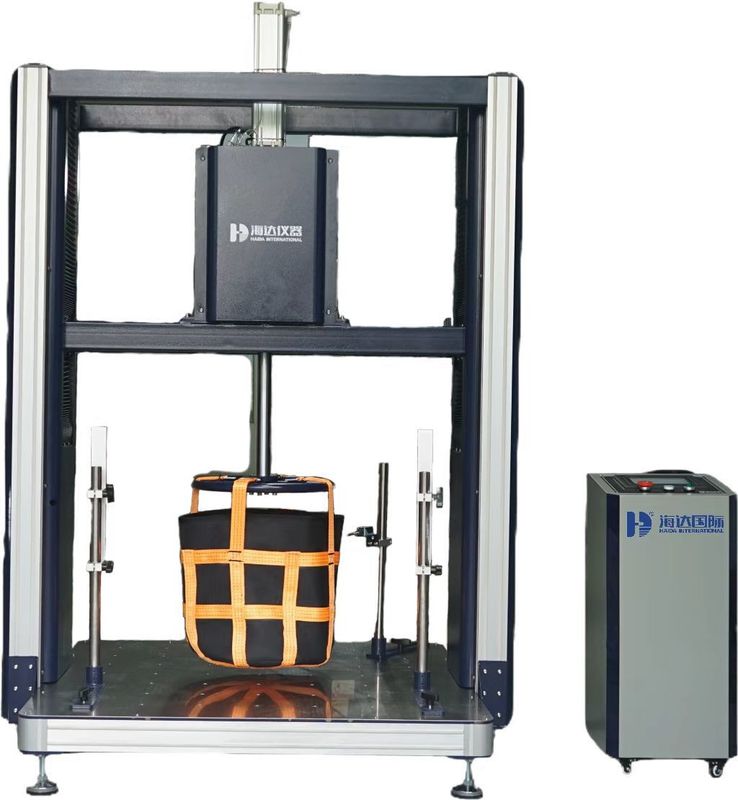

PRODUCT IMAGE



Impact Wear Resistance Chair Drop Impact Tester Adjustable Height 0

Impact Wear Resistance Chair Drop Impact Tester Adjustable Height 1

Impact Wear Resistance Chair Drop Impact Tester Adjustable Height 2



STANDARD FEATURES



Adjustable Drop Height 10mm to 250mm
Largest chair dimensions width 1000mm
Test speed 10~30 times/min
Times setting 0 ~ 999,999

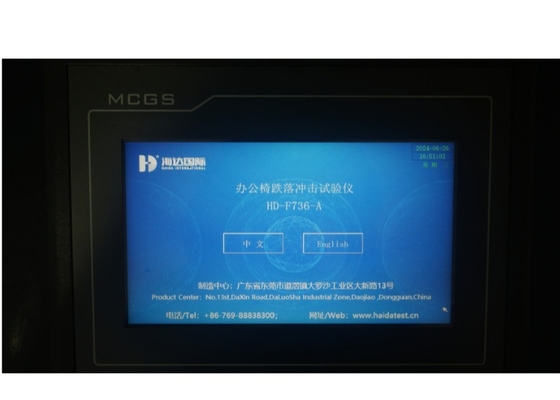

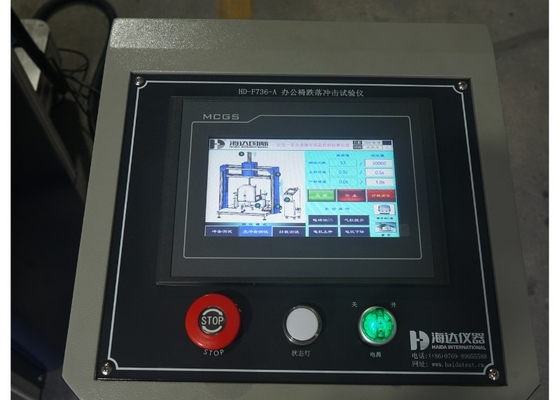

Control mode PLC and LCD touch screen
Chair seating height 200-600mm ( adjustable)
Air source 6kg/cm2
Accessories

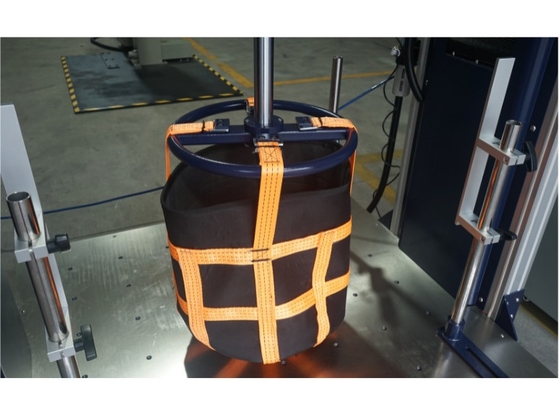

total test bag weight 136kg

( can be divided to 102kg, 57kg)







APPLICATION STANDARDS



BIFMA X5.1 2017

Reference Doc: BIFMA X5.1 2017 clause 7 Drop Test Dynamic





TEST PROCEDURES



1. Functional Load Test

A test bag weighing 102 kg (225 lb.) shall be raised 152 mm (6 in.) above the

uncompressed seat and released one time.

Remove the bag.

For chairs with seat height adjustment features, set height to its lowest position and

repeat a) and b).



Proof Load Test

(Similar with Functional Load Test, but the force is 136 kg(300 lb).)

Impact Wear Resistance Chair Drop Impact Tester Adjustable Height 3







REFERENCE DOC: BIFMA X5.1 2017 clause 10 Seating durability test-cycles ( 10.3 Impact test)





TEST PROCEDURES



A test bag weighing 57 kg (125 lb.) shall be raised 36 mm (1.4 in.) above the uncompressed seat and released for 100,000 at 10-30 cycles/min.







Impact Wear Resistance Chair Drop Impact Tester Adjustable Height 4

ABOUT US

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Impact Wear Resistance Chair Drop Impact Tester Adjustable Height 5
Impact Wear Resistance Chair Drop Impact Tester Adjustable Height 6
Impact Wear Resistance Chair Drop Impact Tester Adjustable Height 7



FAQ



Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.



Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.



Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
