20KN Computer Tensile Testing Machines With Normal Load Cell And Various Capacities

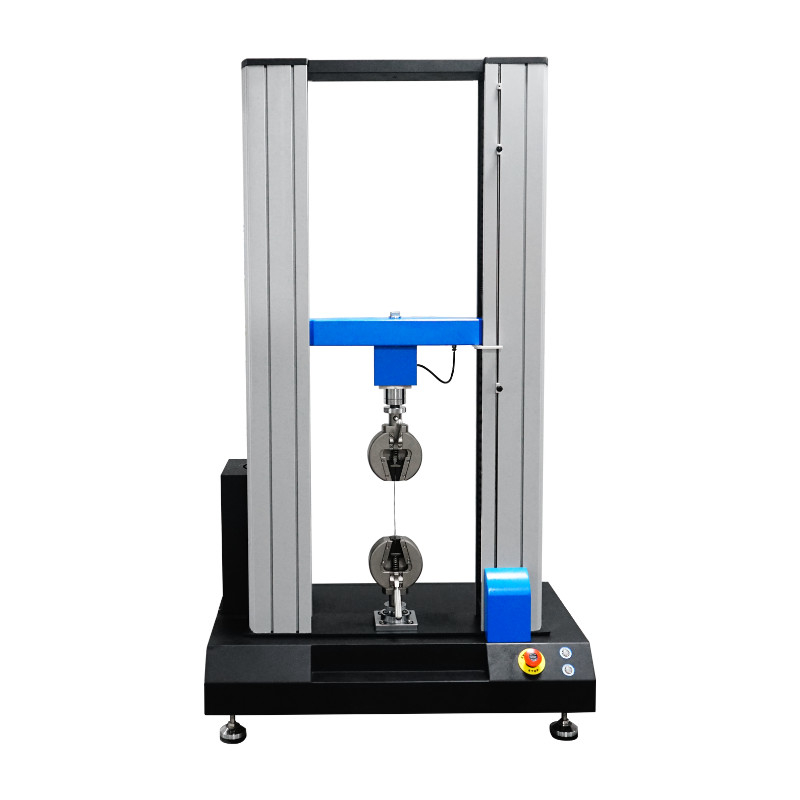

Double Column 20KN Servo Computer Tensile Testing Machines / Universal testing machine

HD-B604B-S Universal Test Machine.pdf

20KN Computer Tensile Test Machine is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force, etc. with different fixtures according to national and international standards customer required.

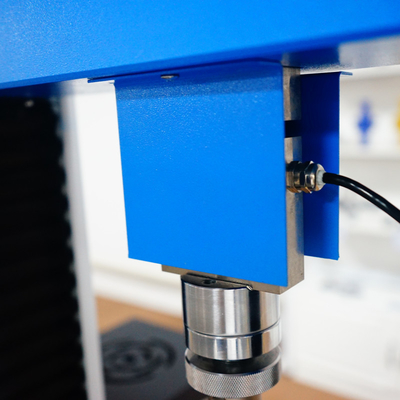

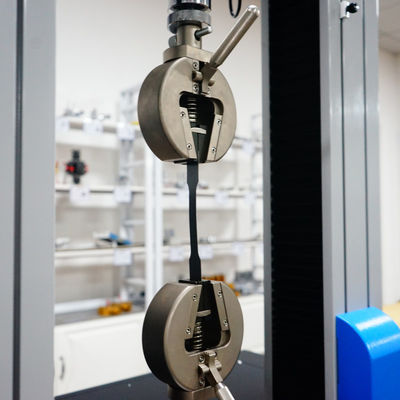

This Tensile Test Machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.

GB 8808, GB 13022, GB 1040, GB 4850, GB 7753, GB 7754, GB 453, GB / T 17200, GB / T 16578, GB / T 7122, GB / T 2790, GB / T 2791, GB / T 2792 ASTM E8, ASTM D828, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB / T 2358, QB / T 1130 and other test standards

• Motor system: Servo Motor + Driver + High precise ball screw (Taiwan)
• Control system: computer control with TM2101 software; Back to origin automatically after the test; store data automatically or by manual operation
• Data transmission: RS232
• Displacement resolution: 0.001mm
• Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force-time, elongation-time, stress-strain
• It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
• User can set parameters of product material such as length, width, thickness, radius, area and so on
• Many languages random switching: Simplified Chinese, Traditional Chinese, and English

The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing and peel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
