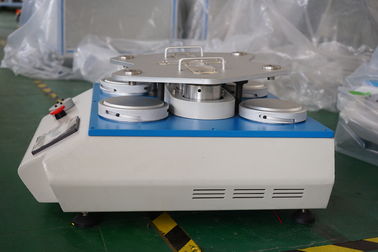

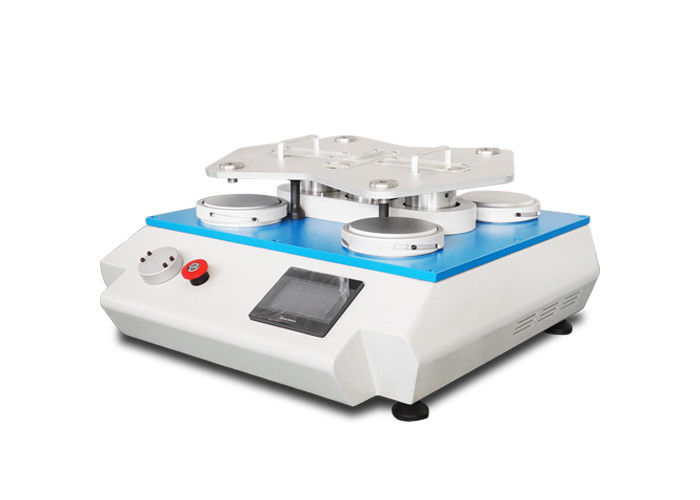

High Sensitivity Textile Testing Machine , ASTM-D4966 Martindale Textile Abrasion Testing Equipment

Brand Name:	HAIDA
Model Number:	HD-P306
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Test Specimen:

44±1mm×4

Load:

595G,795G

Counter/Timer:

LCD, 0-999999

Machine Size:

58.5×56.5×32.5cm

Weight:

67kg

Power:

1ø,AC220V,1.5A

Supply Ability:

300 Sets per Month Haida

Highlight:

fabric checking machine

textile testing instruments

Product Description

High Sensitivity Textile Testing Machine , ASTM-D4966 Martindale Textile Abrasion Testing Equipment

Feature
ASTM-D4966 Martindale Rubber Abrasion Testing Machine mainly applies to the resistance test of textile and outside layer, lining or underlayer of the footware or the similar fabric. Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajous-oriented for the regulated times, then observe the difference between it and the original samples and decide the grade of scrubbing resistance.

The parameters

ASTM-D4966 Martindale Rubber Abrasion Testing Machine
Mode	HD-P306
Test specimen	44±1mm×4
Load	595G,795G
Counter/Timer	LCD, 0-999999
Machine Size	58.5×56.5×32.5cm
Weight	67kg
Power	1ø,AC220V,1.5A
Design criteria	BS-3424,ASTM-D4966, DIN53863,SATRA TM31,ISO-20344

High Sensitivity Textile Testing Machine , ASTM-D4966 Martindale Textile Abrasion Testing Equipment 0
