Textile Industry Machines Fabric Colour Fastness Washing Performance Tester

Brand Name:	Haida
Model Number:	HD-YG086
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

GB/T12704 ASTM E90 JIS L1099 BS 7209

Distance From Shafts:

45 Mm

Speed Of Rotation:

40 ± 2 Rpm

Temperature Regulation:

± 2.0°C (as Per ISO)

Power Supply:

220V, 50Hz

Weight:

100 Kg

Dimensions:

800 X 500 X 1000 Mm

Supply Ability:

10set/ month

Highlight:

fabric checking machine

textile industry equipment

Product Description

Textile Industry Machines Fabric Colour Fastness Washing Performance Tester

Product description:

Washing Fastness Tester is used to test the washing resistance and dry washing resistance of various fabrics, such as cotton,wool, silk, jute, fibre and so on. Colour Fastness Washing Performance Tester is also can check the wash fastness of dyed fabrics and make small sample under room temperature.

Best Quality Fastness to Washing Test Machine

Testing method:

Attach the textile specimen and specified lining fabric, and out into standard liquid; then stir them by machine under provided time and temperature, then wash and dry it for compare the discolor and staining level.

Best Quality Fastness to Washing Test Machine
lity Thickness Tester for Fabric
Main technical parameters

Test cup capacity	550ml x 12pcs
Distance between holder center and cup bottom	45mm
Rotating speed	40±2r/min
Time control range	99.9min
Time control accuracy	<±5s
Temperature control range	0~100°C
Temperature control accuracy	<±2°C
Heating method	Electricity heat
Power supply	AC380V±10%, 50/60Hz, three phase phase

Design standard:

ISO 105-C06,ISO 105-C08,ISO 105-C09,ISO 105-C10,ISO 105-D01,ISO 105-E03

AATCC 61,190 AATCC 86,132

M&S C04,M&S C05, M&S C10A, M&S C12A, M&S C37

BS 1006,JIS L0844

1.5 Accessories:

1.Main Unit	01 No.
2.Beakers (Pots)	10 Nos for ISO, 10 Nos. for AATCC
3.Gaskets – (Fitted in the Beakers)	12 Nos.
4.Stainless Steel Balls (Pack of 100)	01 No.
5.Measuring Plastic Beaker (100 ml)	01 No.
6. Beaker	10No 550ml, 10No. 1200ml
7.Filter Unit – For taking out the S.S. balls from the beaker after testing	01 No.
8.Plastic Tubing (1½ Meters each) - for Outlet & Overflow Valves	01 No.
9.This User’s Manual	01 No.
10. Inspection & Conformance Certificate	01 No.

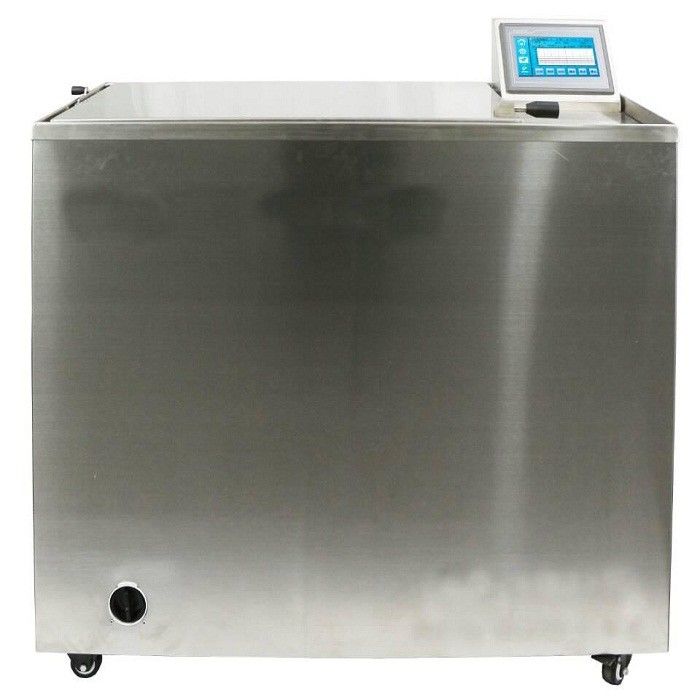

Textile Industry Machines Fabric Colour Fastness Washing Performance Tester 0
