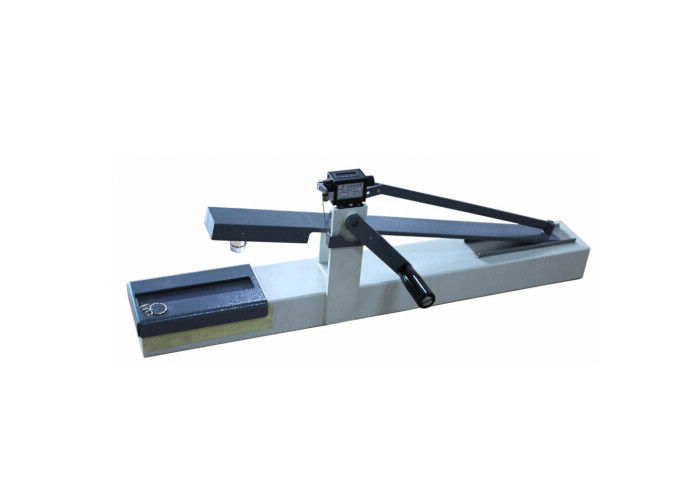

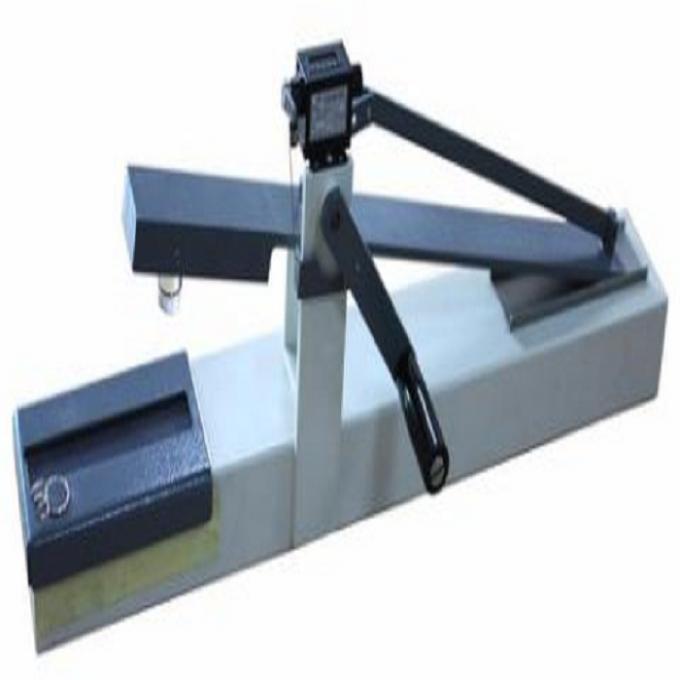

Electronic Textile Testing Machine Rubbing Fastness Testing Machine for Fabric Textile
Rubbing Fastness Tester ,also as a kind of textile testing equipment,is used for testing the transference of color from the surface of one material to another by either wet or dry rubbing. Specimens are rubbed with dry, standard cotton cloth (Crocking cloth) and again, if applicable, with wet cloth. The staining of the crocking cloths is assessed with a Grey Scale
To determine color fastness of textile to dry or wet rubbing.
AATCC 8 Colorfastness to Crocking: AATCC Crockmeter Method
AATCC 165 Colorfastness to Crocking: Textile Floor Coverings-Crockmeter Method
ISO 105-X12 Textiles -- Tests for colour fastness -- Part X12: Colour fastness to rubbing
BS 2543, BS 3424: Part 14, M&S C08, Mercedes Benz DBL 7384
1. A coloured test specimen is clamped and is rubbed,under controlled conditions, against a white crocking cloth.
2. Colour transferred to the crocking cloth is assessed with a suitable Grey Scale.
|Diameter of the Rubbing Finger
||16 ± 0.2 mm
|Force on the Finger
||9 N ± 0.2 N (917.43 gms)
|Size of Crock Square
||(5 x 5) cms
|Center to center Traverse of the Finge
||104 ± 3 mm
||0 - 9999, (Least Count : 1)
|Size of Test Specimen
||25 x 5 cm
||610 x 210 x 300 mm
Accessories supplied with this instruments
|Ø Main Unit
|Ø Crocking Cloths (Pack of 200 Nos.)
|Ø S.S Spring Clips (For mounting Crock squares)
|Ø 'U' Shape Specimen Holder
|Ø This User's Manual
|Ø Inspection & Conformance Certificate
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
