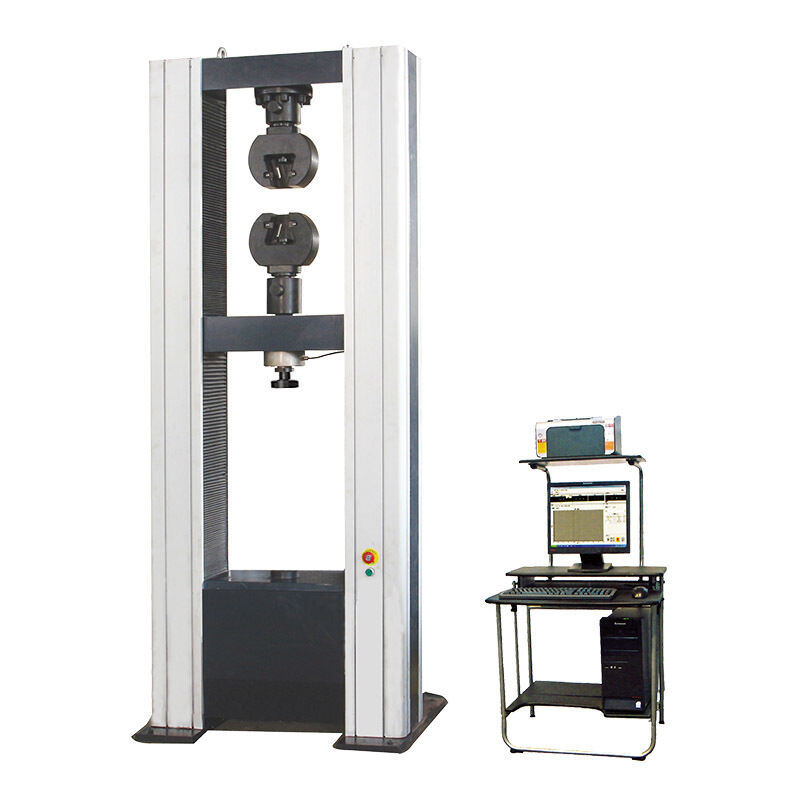

Computer Tensile Testing Machines 50KN With Panasonic Servo Motor / PC Display

Brand Name:	HAIDA
Model Number:	HD-B611S
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Accuracy:

±0.5%

Capacity:

5000 Kg (50KN)

Elongation Accuracy:

0.001mm

Max. Stroke:

1000mm (including Fixture)

Motor:

Panasonic Servo Motor

Power:

Electronic

Sensor:

Celtron Load Cell

Type:

Tensile Tester

Port:

1/250,000

Supply Ability:

300 Sets per Month Haida

Highlight:

universal tensile testing machine

compressive strength testing machine

Product Description

Computer Tensile Testing Machines 50KN With Panasonic Servo Motor / PC Display

Tensile Testing Machines are widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and other industries for testing tensile strength, tear resistance, peel strength, bend strength, shear force, and more with different fixtures according to national and international standards.

Technical Specifications

Parameter	Specification
Max. Force	5000 kg (50KN)
Load Cell	Germany brand load cell for high accuracy
Control System	PC with Windows 7 system
Motor	Panasonic servo motor with DC variable speed drive system, high-precision mechanical ball screw rod
Force Reading	kgf, lbf, N, KN, T etc
Stroke	1100mm including fixture
Load Cell Resolution	1/250,000
Load Precision	within ±0.5%
Test Speed	0.01~300mm/min (adjustable)
Software	TM 2101
Curves Display	Load-elongation, Elongation-time, Time-elongation, Stress-strain
Data Display	Max. force, speed, sample information, strength (Kpa, Mpa, N/mm, N/mm2) etc.
Safety Features	E-Stop, Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat

Key Features

Motor System: Panasonic servo motor + Servo driver + High precise ball screw (Taiwan)

Control System: Computer control with TM2101 software, automatic return to origin, automatic/manual data storage

Data Transmission: RS232

Displacement Resolution: 0.001mm

Graph Display: Automatic scale optimization, dynamic switching between force-elongation, force-time, elongation-time, stress-strain curves

Data Management: Automatic/manual result saving, displays maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval statistics

Custom Parameters: User-configurable material parameters including length, width, thickness, radius, area

Multi-language Support: Simplified Chinese, Traditional Chinese, and English

Testing Capabilities

Universal testing
Tensile strength testing
Bending strength testing
Shearing testing
Tear fatigue testing
3-point bending testing
Compressive testing
Other functional testing

Application Industries

Electronic products: mobile phones, computers, television, video recorders
Textile fabric products: clothes, hats, shoes, ropes
Wire and cable: data cable, USB
Leather products: handbags, wallets, leather shoes, leather chairs
Instrumentation, vehicles, plastic products, metal
Food, chemical, building materials, medical, aerospace
Other industries

Compliance Standards

Including but not limited to ASTM, JIS, CE, ISO, EN, BS EN, SAE and other international standards.

Product Image

Model	Description
HD-609/604	2000 kg (20KN) Max. Force for Tape, rubber, plastic, textile, waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
HD-611	10T (100KN) Max. Force for waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
HD-615	5000 kg (50KN) Max. Force for textile, waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
HD-B616	20KN-1000KN (Hydraulic) load range for waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
