PC Carton Compression Tester, Package ,Corrugate Box ,Carton Compression Tester

Brand Name:	HAIDA
Model Number:	HD-A502S-1500
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC

Capacity (optional):

Product Name:

Compression Test Machine

Load Resolution:

1/250000

Supply Ability:

300 Sets per Month Haida

Highlight:

packaging testing instruments

packaging drop test equipment

Product Description

PC Carton Compression Tester, Package ,Corrugate Box ,Carton Compression Tester

Specifications
Concrete Compressive Strength Tester Price
1.Motor:Import servo motor
2.Control system:Computer control

Product introduce:
PC Carton Compression Tester main for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. equipped with PC control .

Specifications:

Item	Description
Max. Force	5000 kg (50KN)
Load cell	1 load cell for highest accuracy
Control system	Windows 7, RS-232 interface
Motor	Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Load cell Resolution	1/250,000
Load Precision	within ±0.25%
Parallelism of Platens	Parallel within ±2.5mm
Effective test area	1300×1500×1300mm
Test speed	10 ±3mm/min (0.01~200mm/min adjustable)
Software	TM 2101
Data display	Load, displacement, speed, loading rate and elapsed time
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

The Features:
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. It can do test of compression, bending, pressure holding & fatigue.
11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

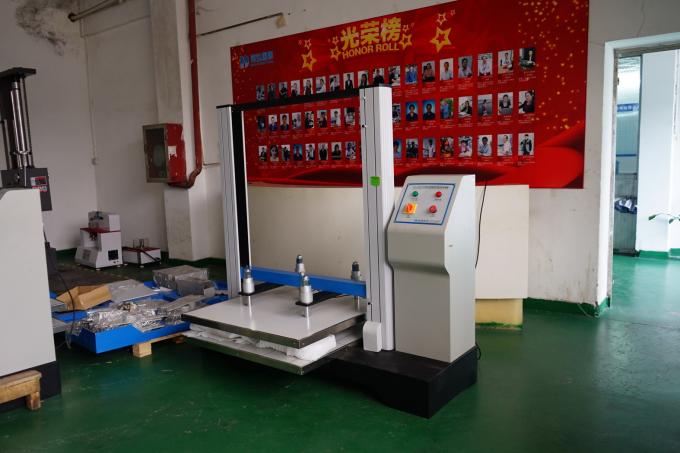

4 The pictures
