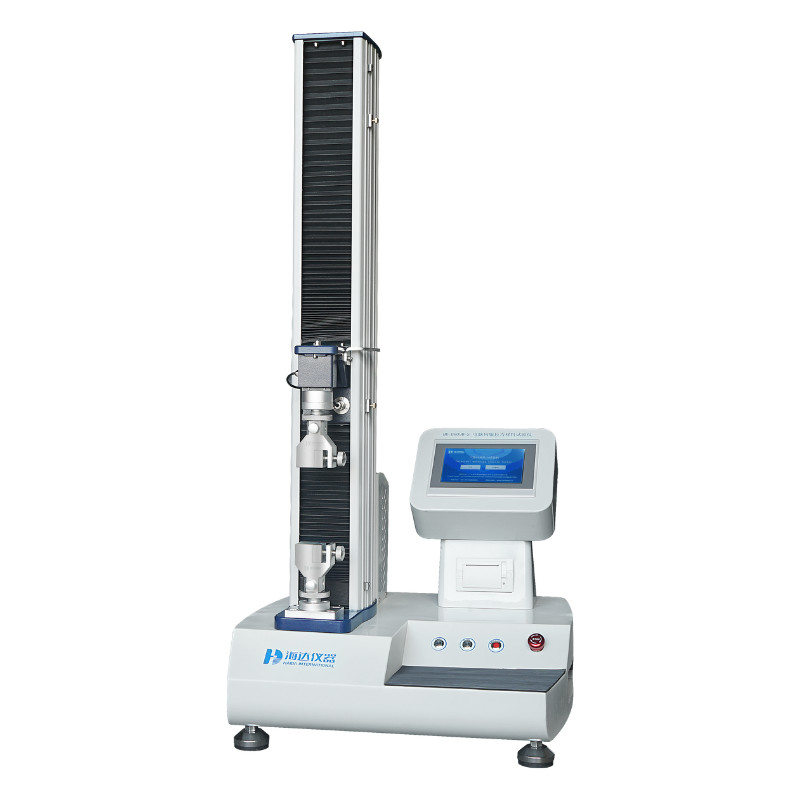

Electronic 2KN Textile Single Column Tensile Testing Machine

Electronic 2KN Textile Single Column Tensile Testing Machine
Electronic 2KN Textile Single Column Tensile Testing Machine
video play

Large Image :  Electronic 2KN Textile Single Column Tensile Testing Machine

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B609B-S
Power: Electric
Port: ShenZhen
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Max. Capacity: 2KN Motor: Panasonic Servo Motor
Control: LCD&PC Force Reading: Kgf, Ibf, N, KN, T Etc
Test Speed: 0.1~500mm/min (adjustable)
High Light:

electronic universal testing machine


compressive strength testing machine

Electronic 2KN Textile Single Column Tensile Testing Machine


Download File:
Tensile Testing Machine Standards Sharing.pdf
609 haida universal test machine.pdf



Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.

Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.

Deformation under defined load: Test deformation under defined load of tested sample

Load under defined deformation: Test load under defined deformation of tested sample

Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.


1. High-Tech, Low Noise
2. Humanized Industrial Design, Easy To Place And Transport
3. Security Protection System
4. Technical Engineer Support After Service
5. Manufacturers Direct Sales, Factory Prices
6. 1 Year Warranty, Free The Use Of Equipment Manual
7. Sales In Stock, Fast Delivery Time


Standard Features:

Item Description
Frame capacity 200kg
Load cell brand Germany brand load cell for high accuracy
200kg (5,10,50,100kg are optional)
Load accuracy 0.5% F.S
Control system LCD with build-in printer /PC with windows 7 system
Motor Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Vertical test space 900mm including fixture
Test speed 0.1~500mm/min (adjustable)
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat


TM2101 Software:

The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this universal test equipment system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
Electronic 2KN Textile Single Column Tensile Testing Machine 0

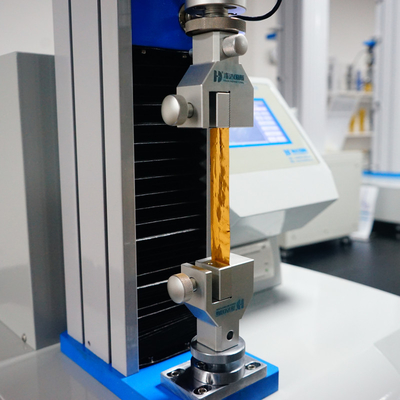

Different Clamps Can Do Different Test:

Electronic 2KN Textile Single Column Tensile Testing Machine 1
