| Type: | Universal Tensile Testing Machine | Load Accuracy: | ≤0.5% |
|---|---|---|---|
| Screw: | Imported Ball Screw | Maximum Stroke: | 900mm (including Fixture) |
| Motor: | 400w Panasonic Servo Motor | ||
| High Light: | Multifunction Strength Testing Machine,Computer Control Tensile Strength Testing,multifunction tensile strength testing |
||

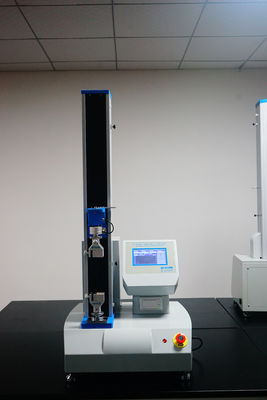

Multifunction Computer Control Tensile Strength Testing Machine
Application
This machine is especially used for button for clothing, toys or other products pull test with specified grip and also can be used for tape, paper, film tensile test with related tensile clamp.
Adhesives Tape/Pressure Sensitive Tape
EN 1719: Loop Tack Test
ASTM D3654: Shear Adhesion Test
ASTM D3759: Tensile &Elongation Test
FTM: 180&90 Degree Peel Test, Loop Tack
EN 1939, ASTM D3330: 180&90 Degree Peel Test
ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test
Main Technical Parameter
| Items | Specification |
| Capacity | 5-200kg imported sensor |
| Unit Switchover | gf, KGF, N , kN, LBf , T |
| Motor | 400w panasonic servo motor |
| Drive | 400w panasonic servo drive |
| Screw | imported ball screw |
| Control mode | panel control (LCD display), can be connected to the computer, Windows mode operation |
| Test Speed | 0.1-500mm/min (adjustable ) |
| Maximum stroke | 900mm (including fixture) |
| Resolution | 1/250,000 |
| Load accuracy | ≤0.5% |
| Overall size | (L*W*H) 520*515*1250mm |
| Weight | Approx.70kg |
| Power supply | 1∮ AC,220V |
