Rubber Tensile Strength Testing Equipment With Panasonic Servo Motor

Large Image : Rubber Tensile Strength Testing Equipment With Panasonic Servo Motor

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number:	HD-B604B-S

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Accuracy:	≤0.5%	Capacity:	100,500,1000;2000,kg
Elongation Accuracy:	0.001mm	Max. Stroke:	1200mm (including Fixture)
Motor:	Panasonic Servo Motor	Power:	1∮, AC220V, 50HZ
Resolution:	1/250000	Sensor:	Celtron Load Cell
Test Speed:	0.1-500mm/min (adjustable )	Type:	Universal Tensile Testing Machine
Highlight:	universal tensile testing machine , compressive strength testing machine

Rubber Tensile Strength Testing Equipment With Panasonic Servo Motor

Applications:

Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
Deformation under defined load: Test deformation under defined load of tested sample
Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Film/Plastic Film:

ASTM D882: Tensile Test
ASTM F1306: Puncture Test
ASTM D1938: Trouser Tear Test
ASTM D2732: Thermal Shrinkage Test
ASTM D1709, ISO 7765-1: Free-Falling Dart Method
ASTM D1894: Static and Kinetic Coefficients of Friction
ASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test

Main Technical Parameter:

Items	Specification
Sensor	Celtron load cell
Capacity	100,500, 1000, 2000KG
Unit Switchover	G, KG, N, LB
Display Device	PC
Resolution	1/250,000
Accuracy	±0.5%
Max. Stroke	1200mm (excluding fixture)
Test Speed	0.1-500mm/min (adjustable )
Motor	Panasonic Servo Motor
Screw	High Precise Ball Screw
Elongation Accuracy	0.001mm
Power	1∮, AC220V, 50HZ
Weight	Approx.155kg
Accessories	One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual

Product Features:
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm

Pictures:

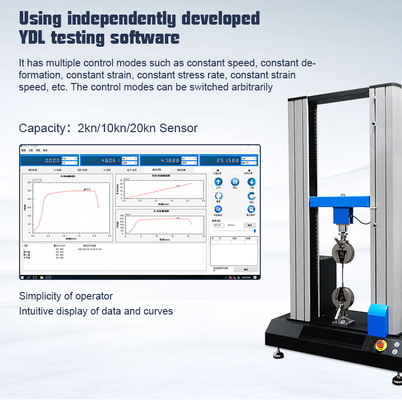

Rubber Tensile Strength Testing Equipment With Panasonic Servo Motor 0

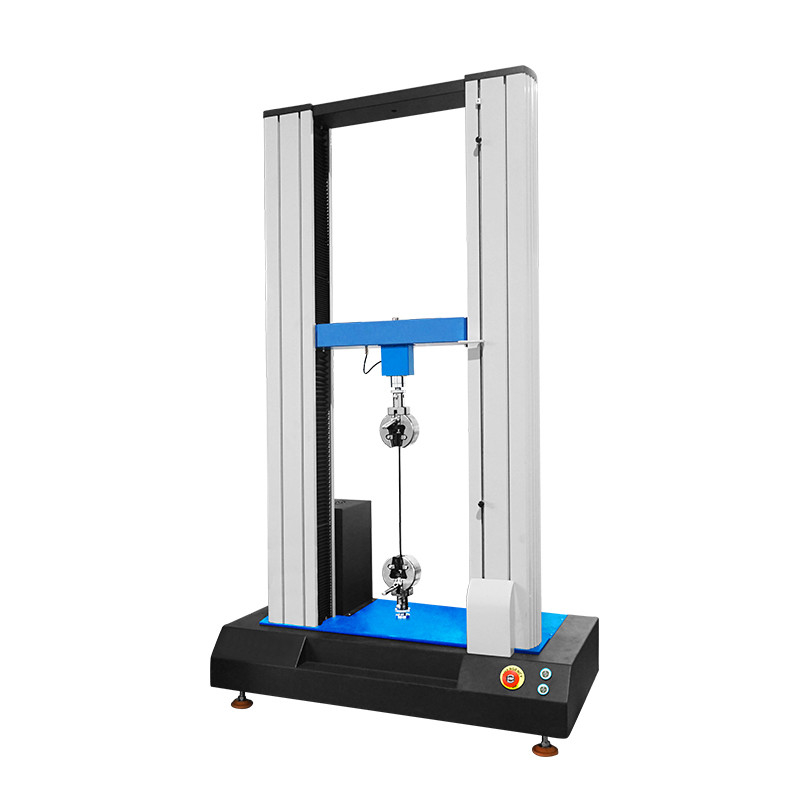

Rubber Tensile Strength Testing Equipment With Panasonic Servo Motor 1

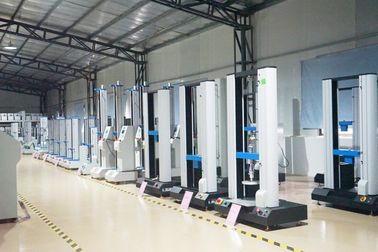

Rubber Tensile Strength Testing Equipment With Panasonic Servo Motor 2
