Medical Suture Diameter Tester for Surgical Thread Measurement

Brand Name:	HAIDA
Model Number:	8041-HD
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash,escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Nominal Size Range:

12-0 To 10 Medical Sutures

Diameter Measurement Range:

0–5 Mm

Measurement Error:

≤ ±1‰

Resolution:

0.001 Mm

Presser Foot Diameter:

12.7 ± 0.02 Mm

Reference Plate Diameter:

50 Mm

Presser Foot & Plate Flatness:

≤ ±0.005 Mm

Presser Foot & Plate Parallelism:

≤ 0.5%

Presser Foot Load:

≤60 G, 210 G ± 3 G

Power Supply:

AC 90V-240V / 50Hz

Data Saving:

Onboard Dot Matrix Printer / USB Export To Computer

Overall Dimensions:

320 × 1200 × 280 (mm)

Supply Ability:

300 Sets per Month Haida

Highlight:

Medical Suture Diameter Tester

50mm Tool Medical Suture Diameter Tester

Product Description

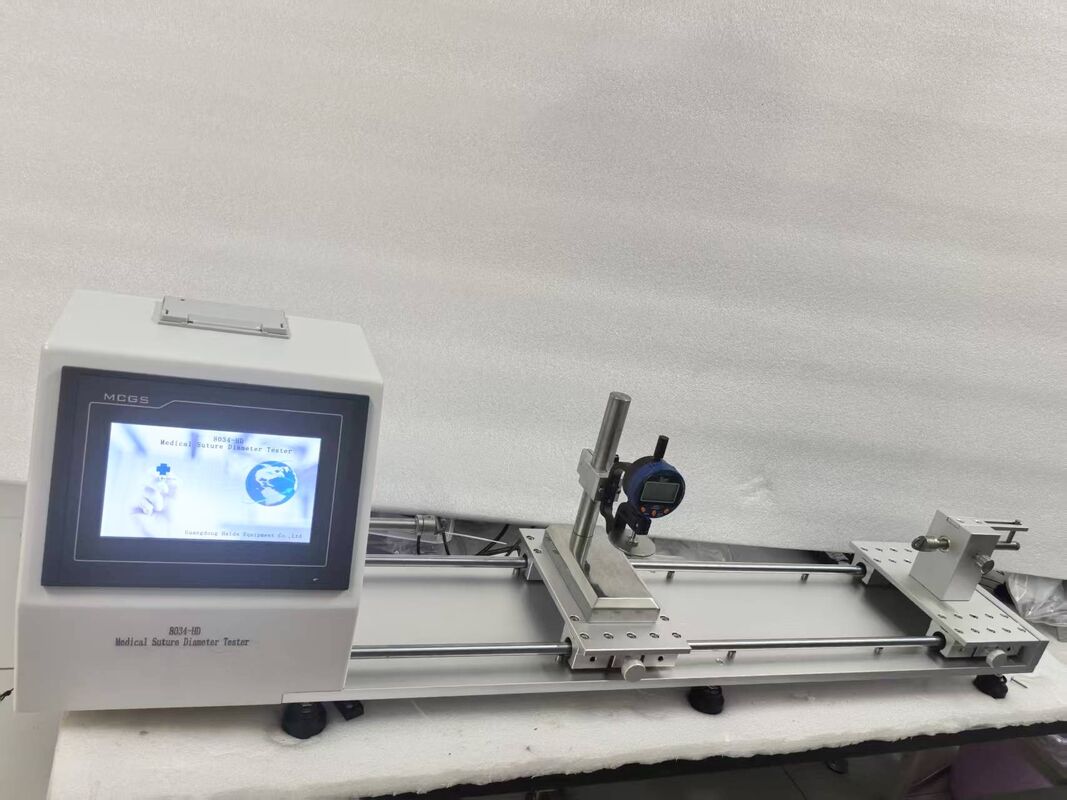

Medical Suture Diameter Tester

Product Overview

The Medical Suture Diameter Tester is a precision instrument designed for accurate diameter measurement of medical sutures. Equipped with advanced features including a 7-inch K600+ core/dot matrix 65-color touchscreen display at 800×480 resolution and PLC control system for dynamic loading force value display.

Multi-language operable interface: Chinese/English/Chinese-English switchable
Digital closed-loop control with AD acquisition speed of 500KHz
Internal resolution of 500,000 counts with high-precision clock chip
Power-off storage and overload alarm with automatic shutdown protection
Weight loading for tension with automatic diameter data recording
Built-in printer for test result output and data reports

Design Standards

Manufactured in accordance with the clauses related to diameter testing in standards YY1116-2020 "Absorbable Surgical Suture" and YY0167-2020 "Non-Absorbable Surgical Suture".

Technical Parameters

Parameter	Specification
Nominal Size Range	12-0 to 10 medical sutures
Diameter Measurement Range	0-5 mm
Measurement Error	≤ ±1‰
Resolution	0.001 mm
Presser Foot Diameter	12.7 ± 0.02 mm
Reference Plate Diameter	50 mm
Presser Foot & Plate Flatness	≤ ±0.005 mm
Presser Foot & Plate Parallelism	≤ 0.5%
Loading Weights Range	0-2 Kg
Weight Accuracy	±0.1 g
Presser Foot Load	≤60 g, 210 g ± 3 g
Print Method	Can print 3-point (1/4, 1/2, 3/4 positions) measurement data and average value; Can print the average of 10 tests, their overall average, and deviation.
Shipping List	Main unit x1, Certificate of Conformity x1, Matching fixtures, Operation manual x1, Printer paper x1 roll, Matching hook weights.
Power Supply	AC 90V-240V / 50Hz
Data Saving	Onboard dot matrix printer / USB export to computer
Net Weight	38 kg
Overall Dimensions	320 × 1200 × 280 (mm)

About HAIDA

Why Choose Us?

Design & Production

Solution consultation for each order, recommending the most cost-performance machine, and research & development of suitable models for special-designed requirements.

Shipping & Delivery

One-stop service from production to delivery at your door, including installation, training, and technical support.

Warranty

1 year warranty with lifetime technology support to ensure long-term reliability.

After-Sale Service

Rapid response within 2 hours with video inspection and on-site service combined for comprehensive support.

Frequently Asked Questions

How about your warranty?

Generally, our warranty is one year. Within the warranty period, we offer technical support and replacement parts. If necessary, our engineers may visit your location for better service.

What is the order process?

Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing and debugging → Packing → Document confirmation → Delivery arrangement → Product shipment → Customer receiving → After-sales service.

Can we visit your factory before order?

Yes, we warmly welcome and sincerely invite you and your team to visit our factory. We will help arrange hotel accommodations and provide airport pickup service.

Do you accept customization service?

Yes, we offer both standard machines and customized machines according to your specific requirements. Please share your needs, and we will do our best to meet them.
