Medical Needle Tip Strength and Piercing Force Tester

Brand Name:	HAIDA
Model Number:	8040-HD
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash,escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Test Items:

Strength, Puncture Force.

Nominal Specification:

0.2 ~ 2.4 Mm (can Be Arbitrarily Selected).

Set Load:

0.01 ~ 2.0 N, Error Not Greater Than ±1%.

Die Hole Diameter:

Ø5 Mm.

Loading Rate:

Speed ≤ 10 Mm/s When Loading To The Set Value.

Steel Block Hardness:

HRC ≥ 60.

Test Consumable:

Aluminum Foil.

Net Weight:

12 Kg.

Overall Dimensions:

400 × 240 × 240 (mm).

Supply Ability:

300 Sets per Month Haida

Highlight:

Medical Needle Tester

Piercing Force Tester

Tip Strength Tester

Product Description

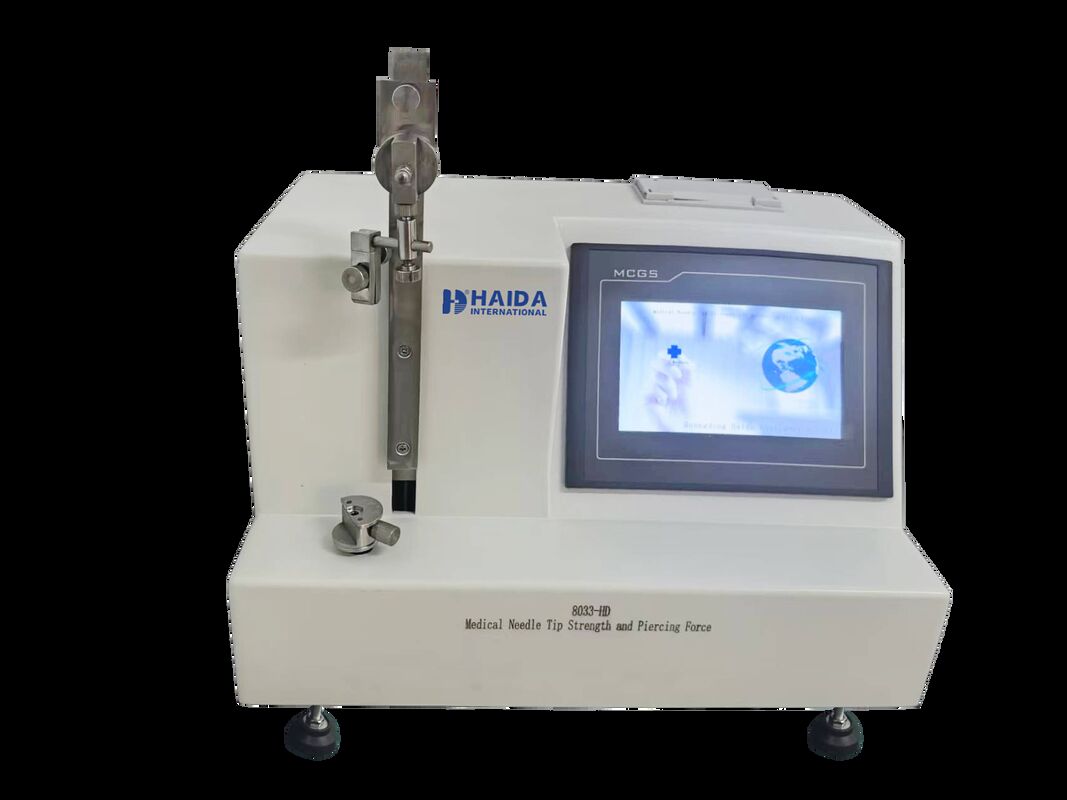

Medical Needle Tip Strength and Piercing Force Tester

Product Overview

The Medical Needle Tip Strength and Piercing Force Tester is designed to test the puncture force performance of syringe tips and evaluate whether the sharpness meets standard requirements. Also known as the Syringe Puncture Force Tester, this instrument ensures quality control in medical device manufacturing.

Technical Specifications

Feature	Description
Display	7-inch K600+ core / dot matrix 65-color, 800*480 resolution touch screen with dynamic loading force display via PLC control system
User Interface	Selectable: Chinese / English / Chinese-English switchable
Control & Data Acquisition	Digital closed-loop control, AD sampling speed of 500KHz, internal resolution of 500,000
Data & Protection	High-precision clock chip, power-off storage; Overload alarm and automatic shutdown protection
Touch Controls	Nominal specification, Test item, Applied load, Print, Test, Up, Down, Time, Calibration
Printing	Built-in printer outputs test results
Execution Standard	Designed and manufactured per standard "YY0043-2016" (Medical Suture Needles)
Test Items	Strength, Puncture Force
Nominal Specification	0.2 ~ 2.4 mm (can be arbitrarily selected)
Set Load	0.01 ~ 2.0 N, error not greater than ±1%
Die Hole Diameter	Ø5 mm
Loading Rate	Speed ≤ 10 mm/s when loading to the set value
Steel Block Hardness	HRC ≥ 60
Test Consumable	Aluminum foil
Printing Method	Each print outputs 3 puncture force test data points, their average value, and strength test result
Shipping List	Main unit x1, Qualification certificate x1, Matching fixtures, Operation manual x1, Printer paper x1 roll, Matching weights
Power Supply	220V / 50Hz
Data Saving	Built-in needle printer / Can be saved to U drive for computer storage
Net Weight	12 kg
Overall Dimensions	400 × 240 × 240 (mm)

About HAIDA

Why Choose Us?

Design & Production: Solution consultation for each order, recommending the most cost-effective machines, and developing specialized models for unique requirements
Shipping & Delivery: One-stop service from production to delivery, installation, training, and technical support
Warranty: 1-year warranty with lifetime technology support
After-Sale Service: React within 2 hours with video inspection and on-site service options

Frequently Asked Questions

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we offer technical support and replacement parts. If necessary, our engineers may provide on-site service.

Q: What is the order process?

A: Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing and debugging → Packing → Document preparation → Delivery arrangement → Shipping → Customer receiving → After-sales service

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory. We will help arrange hotel accommodations and airport pickup.

Q: Do you accept customization service?

A: Yes, we offer both standard machines and customized solutions according to your specific requirements. Please share your needs, and we will do our best to meet them.
