HD Battery Discharge Test Equipment Battery Vacuum Planetary Mixer

Brand Name:	HAIDA
Model Number:	8051-HD
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Function 1:

OCV Test

Function 2:

Power-on Power Consumption Test

Function 3:

Cell Voltage Accuracy Test

Function 6:

SOC Comparison Test

Function 7:

Insulation Resistance Accuracy Comparison Test

Function 8:

Balancing Function Test

Supply Ability:

300 Sets per Month Haida

Highlight:

HD Battery Discharge Test Equipment

Accuracy Battery Discharge Test Equipment

Product Description

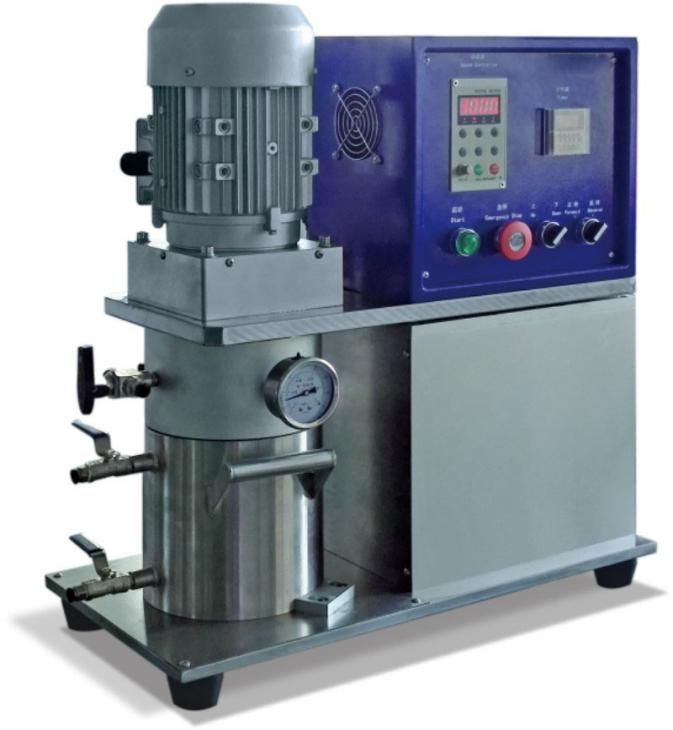

Battery Vacuum Planetary Mixer

Description:

This products is an vacuum mixing and disperse into one efficient equipment.It suitable for the mixing process of positive and negative slurry. And a mixture of powdered materials and various ceramics.This products is use the programmable controller to setting time, speed, and direction of rotation.

HD Battery Discharge Test Equipment Battery Vacuum Planetary Mixer

Main feature

*Adopting industry-leading soft seal process, can hold -0.098 Mpa over 24 hours.

*Adopting precision guide pillar support. The cylinder automatically pushes the barrel to open and close. Human design, precision and high efficiency.

*An 2L double stainless steel container, the barrel is made of high quality 304 stainless steel. After finishing the lathe, use the precision automatic polishing machine polishing to ensure high accuracy.

* Change range 0~2800 rpm, use the programmable controller to setting time, speed, and direction of rotation.

* The mixer motor is adjusted by gearbox frequency conversion, it can according to different processes, different viscosity to choose the different Speed and Torque.

* Design of double disperse blade, can make the materials turn up and down and about, to make the slurry mix quickly and evenly.

* It is small size can save space.

* The exquisite appearance, use the solid geometry design, simple and beautiful.

Technical parameter

* Power rating: 0.75KW,220V；

* Stirring speed :0-2800 rpm; speed regulation by frequency converter.

* Vacuum :-98 KPa (No vacuum pump)

* Material tank effective volume: 1X 2L tank;Φ100mm diameter,160 mm outer diameter,140 mm high.

* The tank has a cold wall.

* Material barrel opening and closing mode: cylinder drives the upper cover up.

* Machine size:0.7 M×0.6 M×0.3 M( H × L× W)

* Have timing function, can set time 0-99(H).

* Until it stops running automatically, can always in vacuum.

* Tank cover : vacuum gauge, vacuum outlet, etc

* Full weight: about 90 kg.
