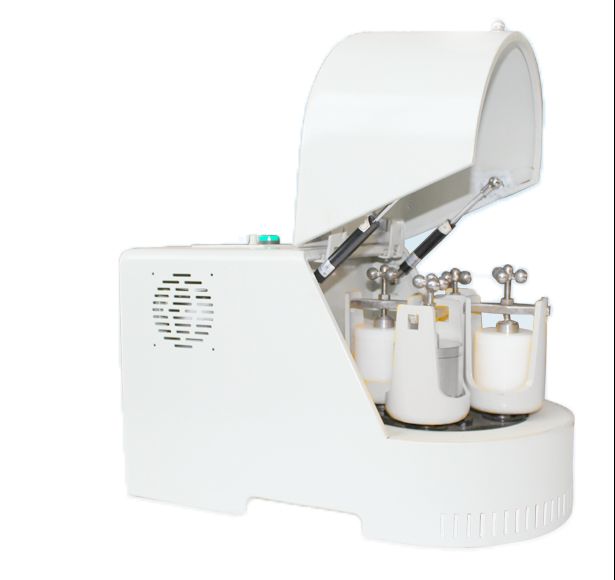

HD Battery Production Experimental Equipment Planetary Ball Mill Machine

Brand Name:	HAIDA
Model Number:	8050-HD
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Function 1:

OCV Test

Function 2:

Power-on Power Consumption Test

Function 3:

Cell Voltage Accuracy Test

Function 6:

SOC Comparison Test

Function 7:

Insulation Resistance Accuracy Comparison Test

Function 8:

Balancing Function Test

Supply Ability:

300 Sets per Month Haida

Highlight:

Experimental Planetary Ball Mill Machine

HD Battery Production Experimental Equipment

Product Description

Planetary Ball Mill Machine

Description:

The planetary ball mill is mixing, fine grinding , sample preparation, nanometer dispersion, new product development and essential devices for mass production of high-tech materials. This The product is small in size, full in function, high in efficiency and low in noise. It is the Ideal equipment for scientific research units, institutions of higher learning, enterprise Laboratories to obtain microparticle research samples (four samples can be obtained simultaneously for each experiment). It use Vacuum Grinding Tank can grinding specimens Grinding specimens under vacuum. It widely used in geology, mineral, metallurgy, electronics, building materials, ceramics, chemical, light industry, medicine, beauty, environmental protection and other departments. Can According to the process requirements, set the speed, alternating time of positive and negative rotation, and the total grinding time.

HD Battery Production Experimental Equipment Planetary Ball Mill Machine

STANDARD FEATURES

* Volume of grinding tank:1000ml*4

* Grinding tank material: stainless steel.

* Grinding material: stainless steel, etc

* Maximum charge per tank: materials and grinding medium shall not exceed two thirds of the volume.

*Feed particle size: Crispy materials<10mm, other<3mm

*Particle size :10 to 0.1 micron minimum

*Speed: revolution of 35~335r/min, rotation of 70~670r/min.

*Speed ratio : (rotation : rotation)1:2

*Speed control mode: brand inverter stepless speed control, Speed Accuracy 0.2 turn/min

*Work way : two or four tanks working simultaneously.

* Maximum continuous working time :72 hours (timer 0-9999 h)

* Program Control: the ball mill adopts high-tech microcomputer chip control, can run alternately with forward turns and reversals(1-999min) and run forward, pause, reverse, pause, and forward (1-999min) alternately.It specially suitable for cooling or intermittent operation.

Working voltage: 220V

* Motor power and frequency conversion power 0.75KW * Outline dimension: 750*470*564mm/93kg.

ABOUT HAIDA

HD Battery Production Experimental Equipment Planetary Ball Mill Machine

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
