HD Small Roll to Roll Battery Electrode Continuous Coating Machine

Brand Name:	HAIDA
Model Number:	8052-HD
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Function 1:

OCV Test

Function 2:

Power-on Power Consumption Test

Function 3:

Cell Voltage Accuracy Test

Function 6:

SOC Comparison Test

Function 7:

Insulation Resistance Accuracy Comparison Test

Function 8:

Balancing Function Test

Supply Ability:

300 Sets per Month Haida

Highlight:

Continuous Battery Electrode Coating Machine

Roll to Roll Battery Test Equipment

Product Description

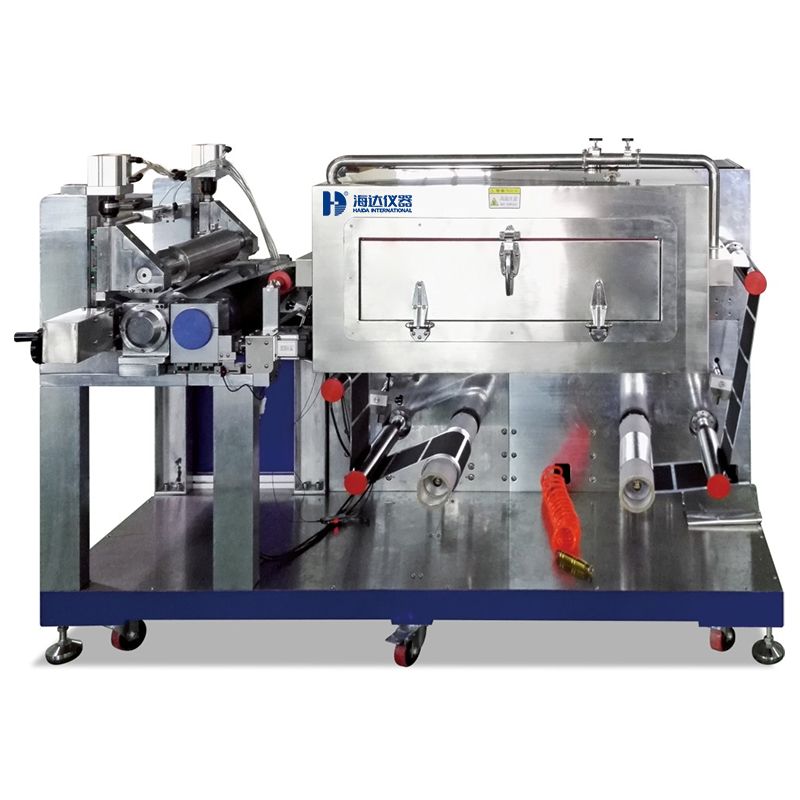

Small Roll To Roll Battery Electrode Continuous Coating Machine

Description:

The intermittent type test coating machine is a three roll transfer coating equipment, can continuous and intermittent coating, It is convenient to be used for surface coating process of various substrates. Especially used in lithium ion battery industry. This equipment is easy for researchers and design to meet the requirements of coating accuracy and consistency no different from production. The drying effect is excellent , It is the ideal Choice for lithium ion batteries, super capacitors, nickel batteries and other secondary batteries research and development.

HD Small Roll to Roll Battery Electrode Continuous Coating Machine

Main feature

* Can free switch to achieve continuous and intermittent coating.

* Base material tension control, belt stable, equipped with correction device.

* Hot air drying oven, upper and lower double side air drying, high quality drying effect.

* Three roll transfer coating, have wider coating window.

* Comma scraper gauge, work in with precision regulator mechanism, can Obtain high coating accuracy.

STANDARD FEATURES

Suitable for the coating process of battery positive and negative electrode sheet of ternary, lithium iron phosphate, lithium cobalt oxide, lithium manganate, graphite, silicon carbon and other systems

1.Coating method: Continuous coating, intermittent coating

2. Number of oven sections: 1 section 1 meter oven

3. Coating speed: 0~0.5m/min

4. Operating base material thickness: Aluminum foil (Al): 8～30um, Copper foil (Cu): 8～30um

5. Roll surface design width: 330 mm

6. Guarantee coating width: within 280mm

7. Coating roller, rubber roller: Φ120mm

8. Scraper: Φ80mm

9. Coating accuracy: ±3um

10. Double-sided coating weight accuracy (mg/cm2): coating center value ±1.0%

11. Suitable for slurry viscosity: 2000~12000 (mPas)

12. Single-sided coating dry thickness range: 20-200μm

13. Solvent characteristics: Oily solvent NMP (s.g=1.033, b.p=204℃)

14. Aqueous solvent: H2O/NMP(s.g=1.000, b.p=100℃)

15. Suitable solid content range: 20~85%

16. Coating size accuracy (mm): L≤±1, W≤±0.5

17. Accuracy of front and back faces (mm): L≤±1, W≤±0.5

ABOUT HAIDA

HD Small Roll to Roll Battery Electrode Continuous Coating Machine

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
