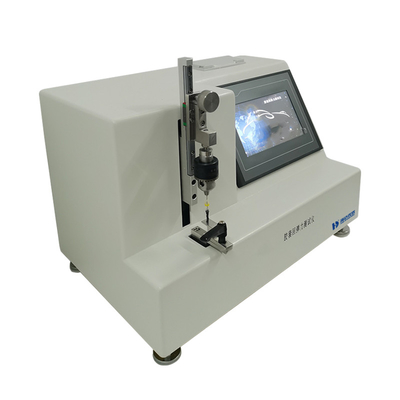

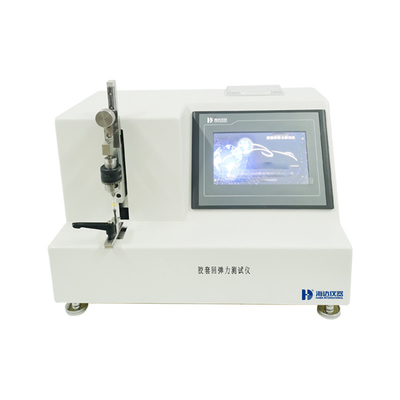

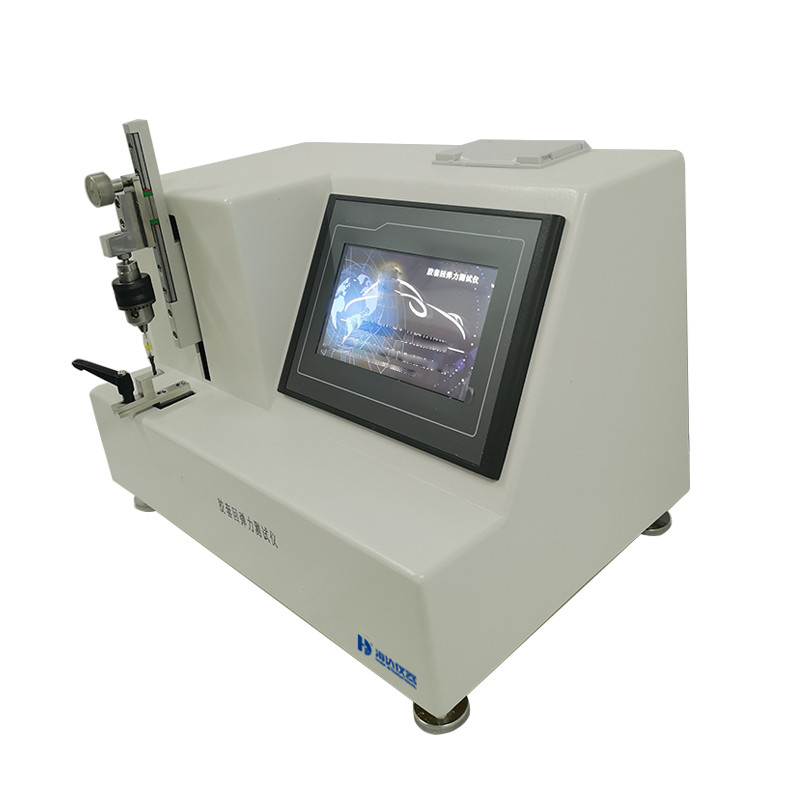

Rubber Sleeve Rebound Tester 70W Power and 0-50mm Measurement Distance

Large Image : Rubber Sleeve Rebound Tester 70W Power and 0-50mm Measurement Distance

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	8039-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Test Force Range:	1~20N, Error Not Greater Than ±1%	Force Measuring Mechanism:	Built-in
Fixture:	Stainless Steel (easy To Grip)	Power:	AC 90V-240V/50Hz, 70W
Resolution:	0.001N	Test Time:	1~999S
Test Speed:	50mm/min, 80mm/min, 100mm/min(error Of No More Than ± 2%)	Measurement Distance:	0~50mm
Test Item:	Sliding Performance Test Of Sterile Syringes
Highlight:	Rubber Sleeve Rebound Tester , 70W Rubber Sleeve Rebound Tester

Rubber Sleeve Rebound Tester

Description:

Rubber Sleeve Rebound Tester is used to measure and evaluate the ability of the lancet sleeve to return to its original shape after being squeezed or stretched by an external force. The tester uses high-precision force sensors and displacement sensors to monitor the force value change and deformation of the rubber sleeve in real time during the recovery process, so as to evaluate its resilience force characteristics.

Test Standard:

YYT1618-2018

Rubber Sleeve Rebound Tester 70W Power and 0-50mm Measurement Distance 0

Technical Parameters

Model	8039-HD
Test Standard	YYT1618-2018
Test item	Single use human vein blood sample collection needle rubber sleeve rebound
Test Force range	1~20N, error not greater than ±1%
Resolution	0.001N
Test time	1~999S
Test speed	50mm/min, 80mm/min, 100mm/min(error of no more than ± 2%)
Measurement distance	0~50mm
Power off storage	Yes
Power	AC 90V-240V/50Hz, 70W
Sensor	High-precision force sensor (with software and hardware protection function)
Fixture	Stainless steel (easy to grip)
Force measuring mechanism	built-in
Printer	Airborne needle printer
Printing method	You can print 8 or 10 test data or13 test data as well as the average and deviation values each time.
Data storage	USB flash drive can be imported into the computer for storage

ABOUT HAIDA

Rubber Sleeve Rebound Tester 70W Power and 0-50mm Measurement Distance 1

Rubber Sleeve Rebound Tester 70W Power and 0-50mm Measurement Distance 2

Rubber Sleeve Rebound Tester 70W Power and 0-50mm Measurement Distance 3

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
