USB Data Storage Medical Needle Penetration Force Tester 100mm/min Moving Speed

Brand Name:	HAIDA
Model Number:	8034-HD
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Nominal Specification:

0.18-3.4mm

Test Range:

0-5N

Resolution:

0.001N

Moving Speed:

100mm/min

Power Off Storage:

Available

Sensor:

High Precision Force Sensor (with Software And Hardware Protection Functions)

Printer:

Airborne Needle Printer

Force:

Measuring Device Built-in

Data Storage:

Can Be Imported Into The Computer Through A USB Drive

Supply Ability:

300 Sets per Month Haida

Highlight:

Medical Needle Penetration Force Tester

Needle Penetration Force Tester

Product Description

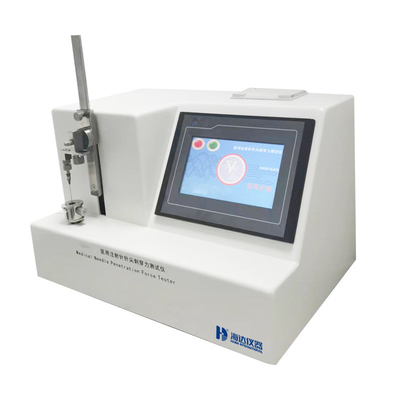

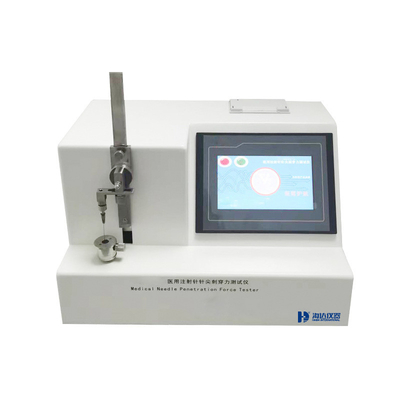

Medical Needle Penetration Force Tester

Description:

Medical Needle Penetration Force Tester is used to test the penetration force of disposable injection needles.
USB Data Storage Medical Needle Penetration Force Tester 100mm/min Moving Speed 0

Technical Parameters

Model	8034-HD
Nominal specification	0.18-3.4mm
Test range	0-5N
Resolution	0.001N
Moving speed	100mm/min
Power off storage	Available
Power supply	AC220/50Hz(Can be customized)
Sensor	High precision force sensor (with software and hardware protection functions)
Fixture	Stainless steel
Printer	Airborne needle printer
Force measuring device	built-in
Data storage	Can be imported into the computer through a USB drive
