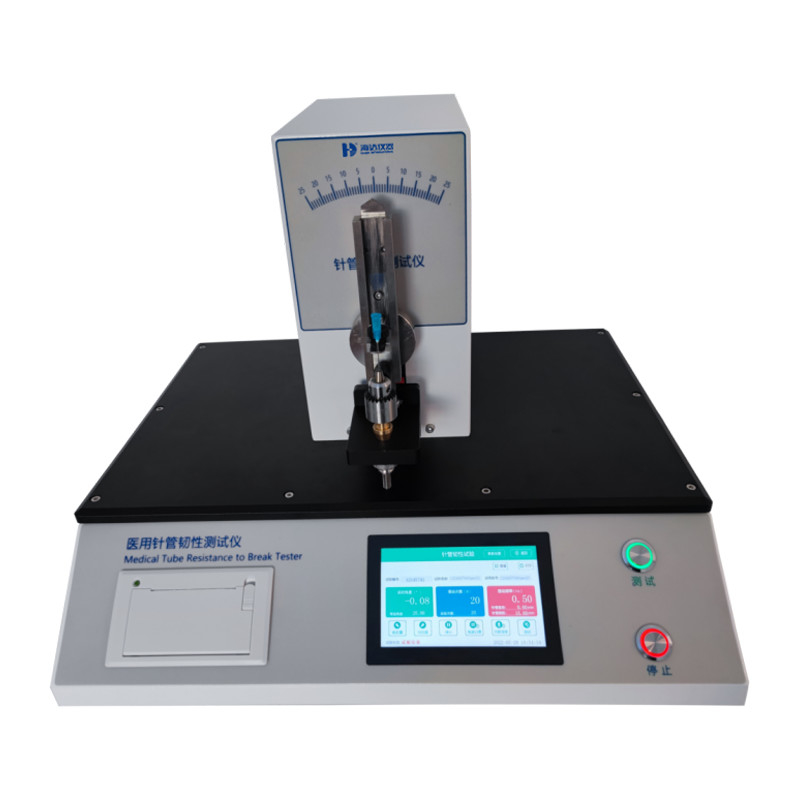

Medical Tube Resistance To Break Tester with 6-95mm Clamping Span

Brand Name:	HAIDA
Model Number:	8031-HD
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Tube Wall:

Normal Wall, Thin Wall, Ultra-thin Wall

Test Frequency:

0.5Hz

Swing Angle:

15°, 20°, 25°

Clamping Span:

6～95mm

Swing Accuracy:

±0.05°

Test Times Setting:

Bidirectional Force 20 Times (adjustable)

Dimension(W*D*H):

460mm*380mm*360mm

Power Supply:

AC 220V, 50Hz

Supply Ability:

300 Sets per Month Haida

Highlight:

Medical Tube Break Tester

Medical Tube Resistance Tester

Medical Tube Break Resistance Tester

Product Description

Medical Tube Resistance to Break Tester

Description:

Medical Tube Resistance to Break Tester is suitable for the determination of toughness of common syringe needles, prefilled syringe needles, infusion needles, etc.

It is widely used in medical product manufacturers, quality inspection institutes, third-party testing agencies, colleges and universities, scientific research institutes, etc.

The fixture adopts a special design to rigidly clamp the needle tube instead of the commonly used rubber pad clamp. This is because when the rubber pad clamps the needle tube for testing, it is a soft clamp. The fixture will be compressed by the needle tube and cannot reach the set swing angle. The actual swing angle of the needle tube has a large deviation and does not meet the standard requirements. Rigid fixtures do not have this problem.

Medical Tube Resistance To Break Tester with 6-95mm Clamping Span 0

Technical Parameters

Model	8031-HD
Tube Wall	Normal wall, thin wall, ultra-thin wall
Specification of needle tube	0.1～4.0mm
Test frequency	0.5Hz
Swing angle	15°, 20°, 25°
Clamping method	Rigid clamping (not rubber pad clamping, rubber pad clamping test error is large)
Clamping span	6～95mm
Swing accuracy	±0.05°
Test times setting	Bidirectional force 20 times (adjustable)
Dimension(WDH)	460mm380mm360mm
Power	AC220V/50Hz
Weight	24kg
