Adjustable Loading Speed Medical Tube Stiffness Tester

Brand Name:	HAIDA
Model Number:	8030-HD
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO,CE,

Tube Wall:

Normal Wall, Thin Wall, Ultra-thin Wall

Specification Of Needle Tube:

0.1～4.0mm

Set Load:

1.0～100N Accuracy: ±0.01N

Loading Speed:

1mm/min(0.1～200mm/min Adjustable)

Span Range:

5～50mm Accuracy: ±0.01mm

Deflection Test:

0～10mm Accuracy: ±0.001mm

Controller:

LCD Controller Type

Dimension(W*D*H):

460*380*450mm

Power Supply:

AC 220V, 50Hz

Supply Ability:

300 Sets per Month Haida

Highlight:

Medical Tube Stiffness Tester

Adjustable Speed Medical Tube Stiffness Tester

Product Description

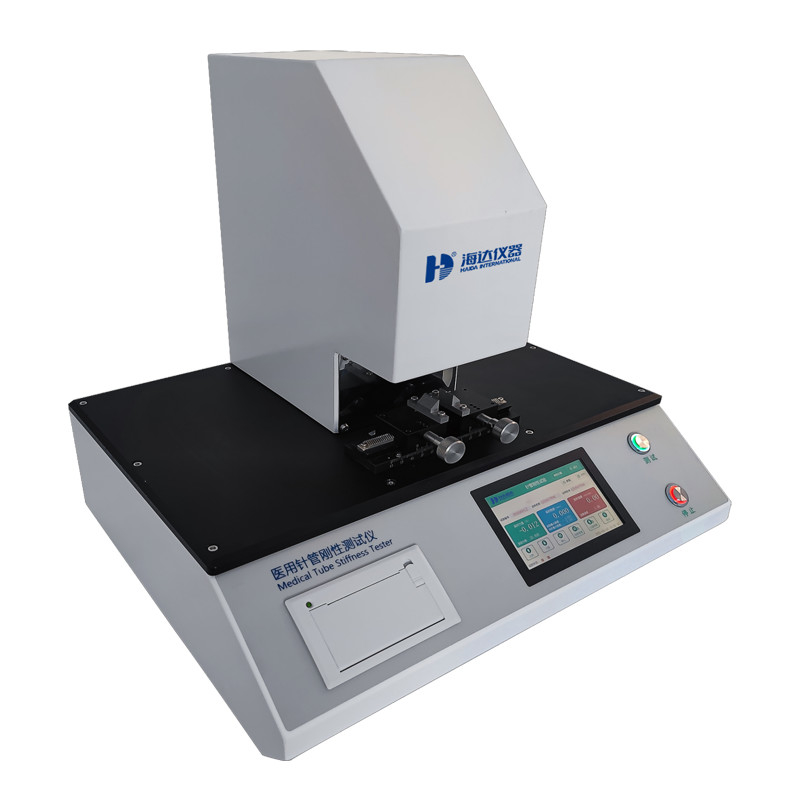

Medical Tube Stiffness Tester

Description:

Medical Tube Stiffness Tester is suitable for the determination of stiffness of common syringe needles, prefilled syringe needles, infusion needles, etc.

It is widely used in medical product manufacturers, quality inspection institutes, third-party testing agencies, colleges and universities, scientific research institutes, etc.

The machine adopts a high-rigidity loading structure to ensure the accuracy of deflection testing. The span support blocks are tightly matched, which is far superior to the accuracy of clearance-matched fixtures.

Adjustable Loading Speed Medical Tube Stiffness Tester 0

Technical Parameters

Model	8030-HD
Tube Wall	Normal wall, thin wall, ultra-thin wall
Specification of needle tube	0.1～4.0mm
Set load	1.0～100N Accuracy: ±0.01N
Loading speed	1mm/min(0.1～200mm/min adjustable)
Span range	5～50mm Accuracy: ±0.01mm
Deflection test	0～10mm Accuracy: ±0.001mm
Dimension(WDH)	460380450mm
Controller	LCD Controller Type
Power	AC220V/50Hz
Weight	28kg
