Finished / Semi-Finished Power Battery Testing System Battery Test Machine

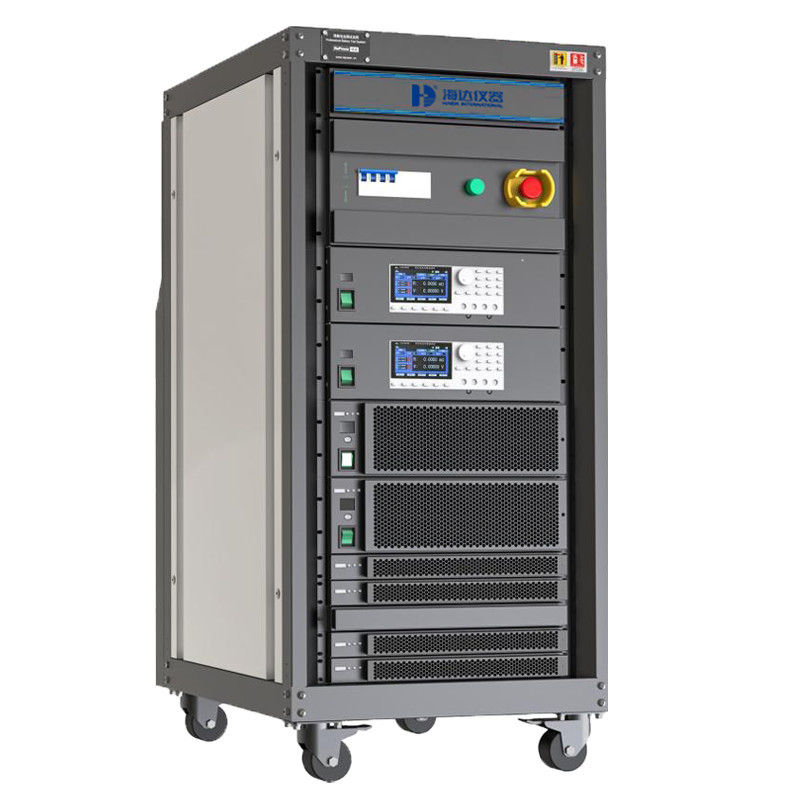

Large Image : Finished / Semi-Finished Power Battery Testing System Battery Test Machine

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	HD-220

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Capacity:	60V~200V 60A~300A	Function 1:	OCV Test
Function 2:	Comparison Test Of OCV Difference	Function 3:	Normal Charging Test
Function 4:	Normal Discharge Test	Function 5:	Wake Up
Function 6:	Charging Current Accuracy Comparison Test	Function 7:	Discharge Current Accuracy Comparison Test
Function 8:	ACR AC Impedance Test	Function 9:	ACR AC Impedance Test
Highlight:	Power Battery Testing System , Semi-Finished Battery Test Machine , Finished Battery Test Machine

Finished/semi-finished power battery testing system

Description:

Finished/semi-finished power battery testing system applied in performance testing and quality control of power battery pack of e-tool, e-bike, e-motorcycle, e-vehicle, and battery module of energy storage base.

Finished / Semi-Finished Power Battery Testing System Battery Test Machine 0

Product Function Test

1. OCV Test
2. DCIR DCIR Test
3. Charge/Discharge Over-Current Protection Test
4. ID Resistance Test
5. NTC Resistance Test
6. AC Impedance Test
7. Over Current Delay Test
8. Load Capacity Test

Product Advantages

1. Soft-start for current output, avoid current shock.
2. Current source open-circuit and voltage-limiting design, avoid high voltage output.
3. Each channel is with independent and programmable constant voltage source and constant current source.
4. Support multi-channel independent testing simultaneously, improving efficiency and production capacity.
5. Support lithium battery pack solutions for the same port, different port, hardware and software versions.
6. Support to read, write and comparison of Gas Gauge data in protection board of finished/semi-finished PACK.
7. Software detects the battery and tests it automatically and record testing result.

Technical Parameters

Models	HD-H220-60V~200V 60A~300A
Simulated battery’s output	Output Voltage	6-60V	12-200V	±0.05% F.S	1mV
	Voltage	6-60V	12-200V	±0.05% F.S	1mV
Discharge Voltage	Voltage Measurement	6-60V	12-200V	±0.05% F.S	1mV
Charge Current	Output Current	0.1-60A	0.1-300A	±0.05% F.S	1mA
	Current Reading	0.1-60A	0.1-300A	±0.05% F.S	1mA
Discharge Current	Output Current	0.1-60A	0.1-300A	±0.05% F.S	1mA
	Current Reading	0.1-60A	0.1-300A	±0.05% F.S	1mA
Charge/discharge Over-current Protection testing	Time Range	0-60000mS	0-60000mS	0.1%	1mS
ACR	Voltage	0-60V	0-300V	±(0.01%rdg+10dgt)	1mV
	Impedance	0.001mΩ~3mΩ	3mΩ~3KΩ	±(0.5%rdg+10dgt)	0.001mΩ
Resistance Measurement	IDR	0.01KΩ~1MΩ		0.1%	1Ω
	NTC	0.01KΩ~1MΩ		0.1%	1Ω
Basic function test	OCV test
	Comparison test of OCV difference
	Charge Pedormance Test
	Discharge Pedormance Test
	Wake Up
	Comparison test of charging current accuracy
	Comparison test of discharge current accuracy
	ACR impedance test
	Load impedance test
	Charge Over current protection and recoveQ test (OCP)
	Discharge Over current protection and recoveQ test (OCP)
	Charge and discharge DCR test
	Cell voltage sampling test
	Cell temperature sampling test
	SOC test
	Software and hardware version reading test
Communication function	CANBUS / Rs485 / Rs232 / I2C / SUMBUS etc.
