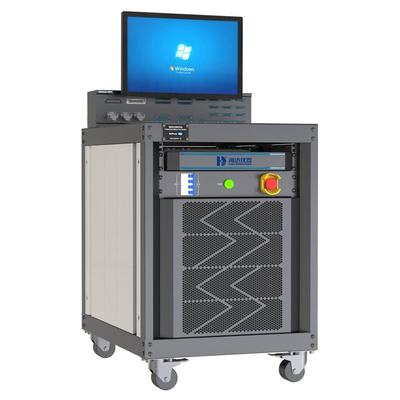

PCB Battery Protection Board Testing System Power Battery Pack Protection Board Test System Battery Test Machine

Large Image : PCB Battery Protection Board Testing System Power Battery Pack Protection Board Test System Battery Test Machine

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	HAIDA
Certification:	ISO,CE,
Model Number:	HD-219

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month Haida

Contact Now

Detailed Product Description

Capacity:	16~24S 100A/200A/300A	Function 1:	OCV Test
Function 2:	Normal Power Consumption Test	Function 3:	Sleep Power Test
Function 4:	Cell Over-voltage Protection And Recover Test	Function 5:	Balance Voltage And Current Test
Communication Function:	CANBUS / RS485 / RS232 / I2C / SUMBUS Etc.
Highlight:	Battery Pack Protection Board Test System , PCB Battery Protection Board Test System , Battery Test Machine Protection Board

PCB battery protection board testing system

Description:

PCB battery protection board testing system applied in the testing of power battery pack protection board system, testing of PCB performance and its technical items, and generated a complete testing report.

PCB Battery Protection Board Testing System Power Battery Pack Protection Board Test System Battery Test Machine 0

Product Function Test

1. Balanced Current Measurement Verification
2. Over-Charge And Over-Discharge Measurement Verification
3. Quiescent Current Measurement
4. Protection Delay Time Measurement
5. Charge And Discharge Protection
6. On-Resistance Test
7. Current Limiting Test
8. Temperature Protection Test

Product Advantages

1. Composed by virtual battery, short-circuit free, safety guaranteed.
2. Pluggable design of virtual battery enables it to be extended, range from 4S to 36S.
3. Software supports modular setting of testing projects, production validation and research and development, research-oriented testing, and other modes, supporting secondary development;
4. Support manual start testing and one click start automatic testing, including button start, barcode start, PLC start testing, etc;
5. Support multi-channel independent testing to improve efficiency and production capacity;

Technical Parameters

Models	HD-H219-16~24S 100A/200A/300A
Pack Voltage	Voltage Measurement	5-180V	0.1% F.S	1mV
Simulated battery’s output	Voltage range	100-5000 mV	0.01%R.D ± 0.02% F.S	0.1mV
	Current range1	1-5000uA	0.01%R.D ± 0.1% F.S	0.1uA
	Current range2	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Simulated battery sampling	Voltage range	100-5000 mV	0.01%R.D ± 0.02% F.S	0.1mV
	Current range1	1-5000uA	0.01%R.D ± 0.1% F.S	0.1uA
	Current range2	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Simulated batte's ability of absorbs current	Current range	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Temperature simulation	Temperature range	-50℃~300℃	0.1%R.D ± 3% F.S	0.1℃
High precision constant-current source	Voltage range	1-5V	0.1%FS	0.1mV
	Charge current	1-300A	0.05%RD±0.05% FS	0.1uA
	Discharge current	1-300A	0.05%RD±0.05% FS	0.1mA
Recharger	Voltage range	1-120V	0.1% FS	0.1mV
Recharger	Current range	1-500mA	1% FS	0.1mA
Load	Voltage range	1-120V	0.1% FS	0.1mV
Load	Current range	1-500mA	1% FS	0.1mA
Basic function test	OCV test
	Normal power consumption test
	Sleep power test
	Cell over-voltage protection and recoveQ test
	Cell under-voltage protection and recoveQ test
	Total voltage over-voltage protection and recoveQ test
	Total voltage under-pressure protection and recoveQ test
	Balance voltage and current test
	Charge and discharge over-current protection and recoveQ test
	Shok-circuit protection and recoveQ test
	High and low temperature protection and recoveQ test
Signal function test	Voltage sampling test,temperature sampling test,resistance sampling test, IO signal test
Communication function	CANBUS / RS485 / RS232 / I2C / SUMBUS etc.
