Product Details:
Payment & Shipping Terms:
|
| Heating Speed: | 3℃/min In Average (without Loading) | Temperature Range: | ±1℃ |
|---|---|---|---|
| Vertical Test Space: | 1200mm Including Fixture | External Chamber Material: | Stainless Steel With Paint Spray |
| Control System: | PC With Windows 7 System | Temperature Sensor: | PT-100 Dry And Wet Bulb Sensor |
| Frame Capacity: | 2000kg | Compressor: | France Tecumseh Compressor |
| High Light: | 50mm Diameter Tensile Testing Machines,Stainless Steel Tensile Testing Machines |
||
Clamp both ends of the sample, fix the lower clamp, and the upper clampl moves and stretches until the sample is deformed or broken.. At the end of the test, thel fixture will automatically return to the position, and the computer will automatically calcu-l late the data and print the report
| Parameter | Details |
|---|---|
| Compressor | France Tecumseh Compressor |
| Load cell brand | Germany Brand Load Cell For High Accuracy |
| Lighting | Heat Resistance |
| Load accuracy | 0.5% F.S |
| Temperature sensor | PT-100 Dry And Wet Bulb Sensor |
| Vertical test space | 1200mm Including Fixture |
| Cooling speed | 1℃/min In Average (without Loading) |
| Heating speed | 3℃/min In Average (without Loading) |
| Test speed | 0.1~300mm/min (adjustable) |
| External chamber material | Stainless Steel With Paint Spray |

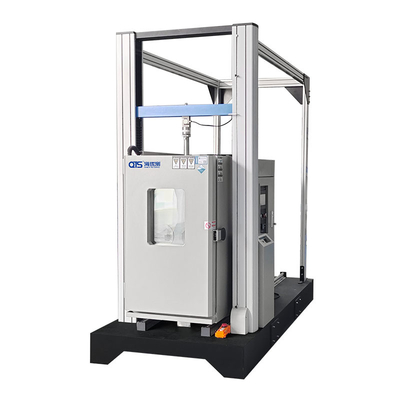

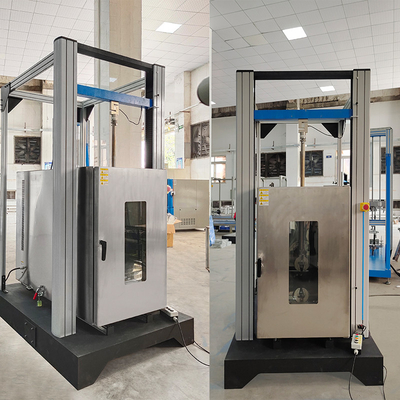

This machine is used to meet customer specified test requirements, which it can do tensile, tear test under specified temperature. This machine includes two parts: high & low temperature chamber and tensile tester
We provide comprehensive technical support and services for our Tensile Testing Machines. Our team of highly skilled engineers and technicians are on hand to assist with any technical questions or problems you may have.
Our technical support team is available 24/7 to answer any questions or troubleshoot any issues with your Tensile Testing Machines. Whether it is a mechanical or electrical problem, we are here to help.
We provide regular maintenance services to ensure that your Tensile Testing Machines are kept in optimal condition. Our technicians can perform routine inspections, repairs, and replacements to ensure that your machines are operating correctly and efficiently.
We also offer training services to teach you how to properly use and maintain your Tensile Testing Machines. Our experienced trainers can provide hands-on instruction and demonstrate the correct procedures for operating and maintaining your machines.
Tensile Testing Machines should be packaged in a sturdy shipping box and supported by appropriate packaging material to ensure secure and safe delivery. The product should be inspected for any signs of damage and a detailed packing list should be included in the packaging.
Q1: What is the Brand Name of the Tensile Testing Machines?
A1: The Brand Name of the Tensile Testing Machines is HAIDA.
Q2: What is the Model Number of the Tensile Testing Machines?
A2: The Model Number of the Tensile Testing Machines is HD-B607-S.
Q3: Where is the Place of Origin of the Tensile Testing Machines?
A3: The Place of Origin of the Tensile Testing Machines is Guangdong, China (Mainland).
Q4: What is the Certification of the Tensile Testing Machines?
A4: The Certification of the Tensile Testing Machines is ISO and CE.
Q5: How many Sets of Tensile Testing Machines can be supplied per month?
A5: The Supply Ability of the Tensile Testing Machines is 150 Sets per Month.
