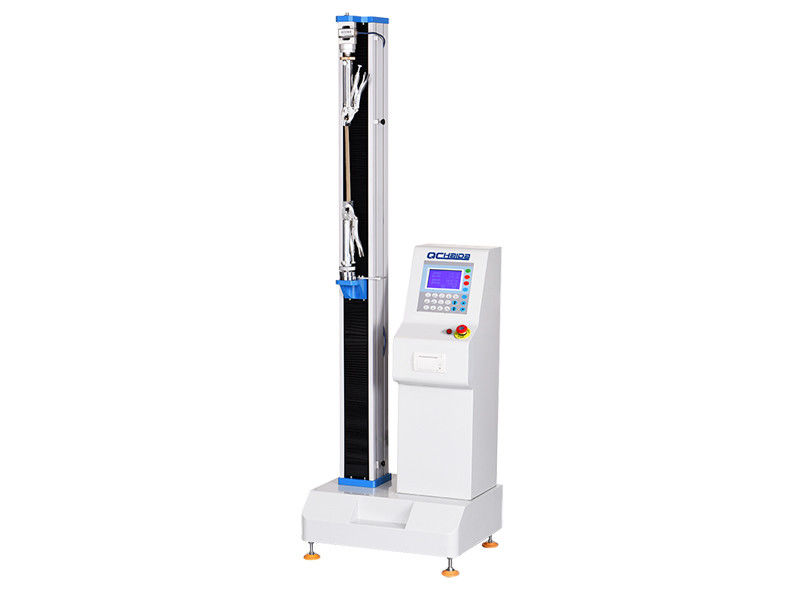

Electronic Tensile Testing Machines Compressive Tensile Strength Tester QB/T 1053

Electronic Tensile Testing Machines Compressive Tensile Strength Tester QB/T 1053
Electronic Tensile Testing Machines Compressive Tensile Strength Tester QB/T 1053
video play

Large Image :  Electronic Tensile Testing Machines Compressive Tensile Strength Tester QB/T 1053

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B617-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Capacity: 50,100, 200kg(optional) Units: Gf, Kgf, N, LBf, W, KN, T
Load Resolution: 1/250, 000 Load Accuracy: Within ± 0.5%
Maximum Trip: 1400mm (excluding Fixture) Test Speed: (0.1-500)mm/min (optional)
High Light:

Electronic Tensile Testing Machines

,

Compressive Tensile Testing Machines

Electronic Tensile Testing Machines/Compressive Tensile Strength Tester QB/T 1053



Description of UTM

A tensile tester, also known as a pull tester or univeral testing machine (UTM), is an electromechanical test system that applies a tensile (pull) force to a material to determine the tensile strength and deformation behavior until break.

A typical tensile testing machine consists of a load cell, crosshead, extensometer, specimen grips, electronics and a drive system. It is controlled by testing software used to define machine and safety settings and store test parameters specified by testing standards such as ASTM and ISO. The amount of force applied to the machine and the elongation of the specimen are recorded throughout the test. Measuring the force required to stretch or elongate a material to the point of permanent deformation or break helps designers and manufacturers predict how materials will perform when implemented for their intended purpose.



Application:

  1. Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
  2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
  3. Deformation under defined load: Test deformation under defined load of tested sample
  4. Load under defined deformation: Test load under defined deformation of tested sample
  5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Plastic& Plastic Pipe:

  • ISO 180: Izod Impact Test
  • ISO 9966: Ring Stiffness Test
  • ISO 179: Charpy Impact Test
  • ISO 4892: Weathering Aging Test
  • ASTM D3163: Plastic Lap-Shear Test
  • ISO 4422, ISO 3127: Pipe Impact Test
  • ASTM D4565, ISO 11357, EN 728: DSC/OIT
  • ISO 75: Heat Deflection Temperature (HDT)
  • ASTM D1598: Hydrostatic Pressure and Burst Test
  • ISO 1133, ASTM D1238: Melt Flow Rate Test (MFR/MVR)
  • ASTM D790, ISO 178, ISO 14125, ASTM D6272: Bend Test
  • ISO 306, ASTM D1525: Vicat Softening Temperature (VST)
  • ASTM D882, ASTM D 638, ISO 527, ASTM D1708: Tensile Test



Main Technical Parameter:



Item Description
Frame capacity 500kg
Load cell brand China brand, 500kg (5,10,50,100,200kg are optional)
Load accuracy 1% F.S
Control system LCD with build-in printer /PC with windows 7 system
Motor Adjustable-speed motor with reduction box, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Vertical test space 1400mm including fixture
Test speed 0.1~500mm/min (adjustable by rotary knob)
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat



A tensile tester or tensile testing machine is used to determine the strength and deformation behavior of a material up to the point of fracture. Choosing the right tensile testing machine depends on the material to be tested and the standard(s) that must be followed.



Detail Pictures:



Electronic Tensile Testing Machines Compressive Tensile Strength Tester QB/T 1053 0     Electronic Tensile Testing Machines Compressive Tensile Strength Tester QB/T 1053 1
