Automatic Universal strength Testing Machine Desktop Tensile Test Equipment

Brand Name:	HAIDA
Model Number:	HD-B602
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Load Accuracy:

≤1%

Capacity:

5, 10, 20, 25, 50, 75,100,150, 200kg

Elongation Accuracy:

0.001mm

Max. Stroke:

1000mm (including Fixture)

Motor:

AC Motor

Power:

AC Motor

Resolution:

1/100,000

Supply Ability:

300 Sets per Month Haida

Highlight:

universal tensile testing machine

compressive strength testing machine

Product Description

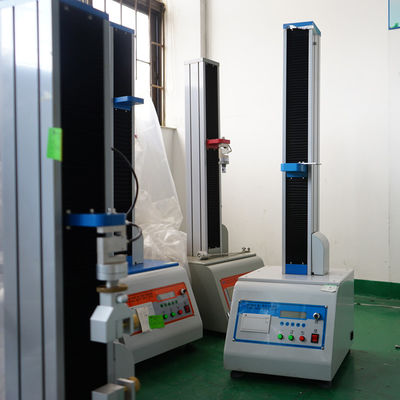

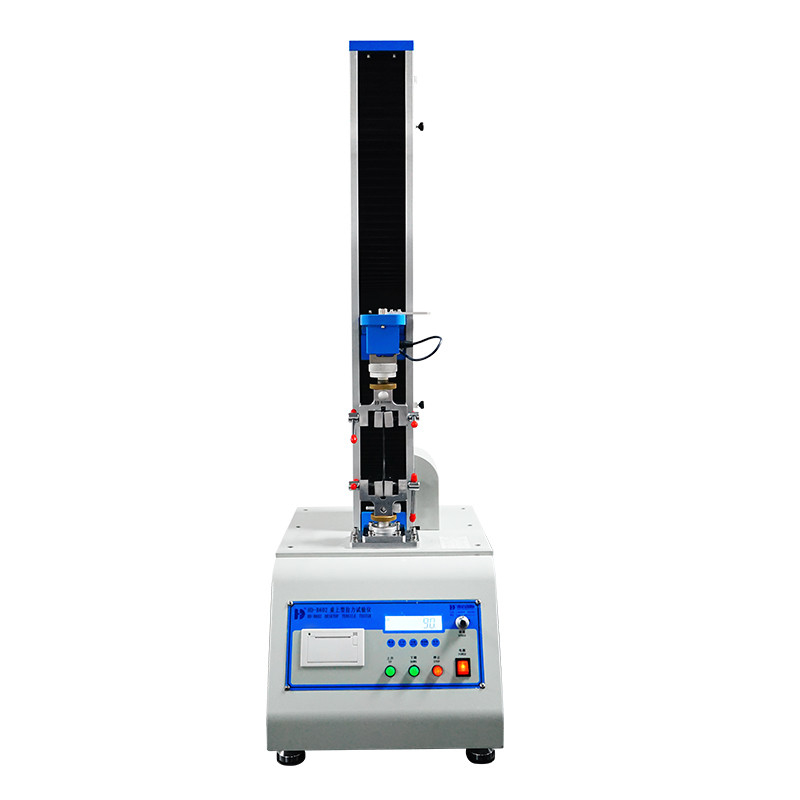

Automatic Universal Strength Testing Machine Desktop Tensile Test Equipment

Product Description:

Tensile Testing Equipment is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

Automatic Universal strength Testing Machine Desktop Tensile Test Equipment 0

Product Features:

1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)

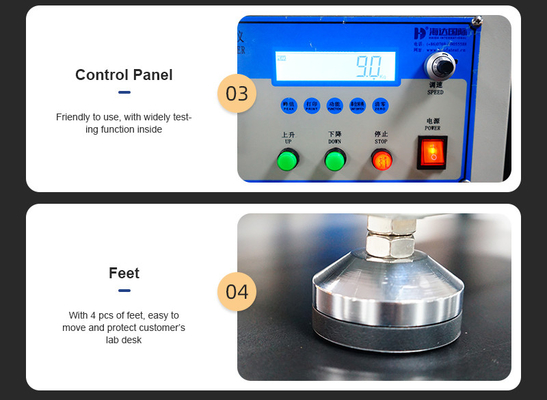

2. Control system: Microcomputer

3. Displacement resolution: 0.001mm

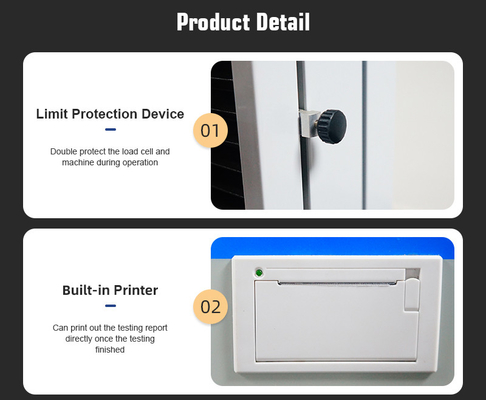

4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.

Main Technical Parameter:

Items	Specification
Capacity	5, 10, 20, 25, 50,75, 100, 150,200kg
Unit Switchover	G, KG, N, LB
Display Device	LED liquid crystal display
Resolution	1/100,000
Load Accuracy	≤1%
Max. Stroke	900mm (including fixture)
Test Speed	50-300mm/min (adjustable )
Motor	AC Motor
Screw	High Precise Ball Screw
Elongation Accuracy	0.001mm
Power	1∮, AC220V, 50HZ
Weight	Approx.40kg
Accessories	One set tensile clamp, one piece English software CD, one piece operation video CD, one piece English user manual
