Accuracy: | ±1% | Capacity: | 2000 Kg (20KN) |
---|---|---|---|
Max. Stroke: | 650mm (include The Fixture) | Power: | Electronic |
Resolution: | 1/100,000 | Sensor: | Load Cell |
Test Speed: | 20-300mm/min (adjusted By The Knob ) | Type: | Universal Tensile Testing Machine |
Highlight: | universal tensile testing machine,electronic universal testing machine |
Double Column Tensile Testing Machines for Rubber / Plastic / Fabric Strength Testing
Product Description:
Tensile Testing Machines is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.
Benefit Features:
This Tensile Testing Machines is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Desktop Tensile Testing Machines , LCD Display Tensile Test Equipment
Detection Function:
Standard:
Inculding but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE...etc.
Application Industry:
1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others...
Main Technical Parameter:
Item | Description |
Max. Force | 2000 kg (20KN) |
Load cell | Germany brand load cell for high accuracy |
Control system | PC with windows 7 system |
Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Stoke | 1200mm including fixture |
Load cell Resolution | 1/250,000 |
Load Precision | ≤0.5% |
Test speed | 0.1~500mm/min (adjustable by PC) |
Test width | ≤400mm |
Software | TM 2101 |
Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Theory:
Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltage sign and output to the display screen.And the strength value will be displayed automatically on the computer
Product Features:
1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)
2. Control system: Microcomputer
3. Displacement resolution: 0.001mm
4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.

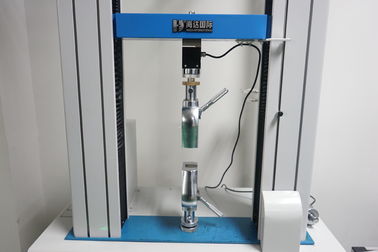

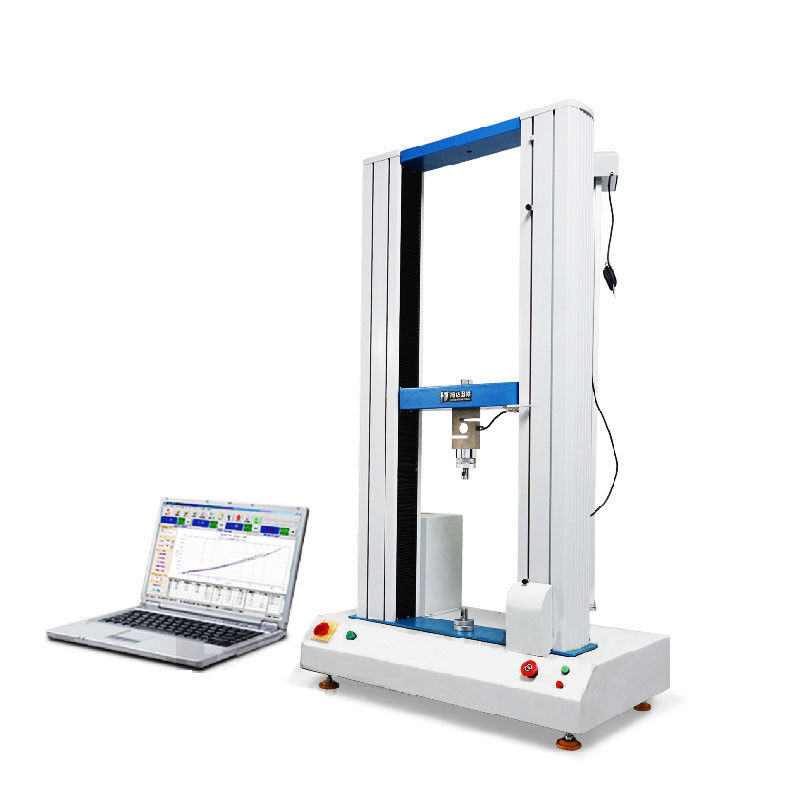

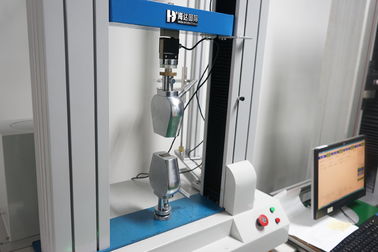

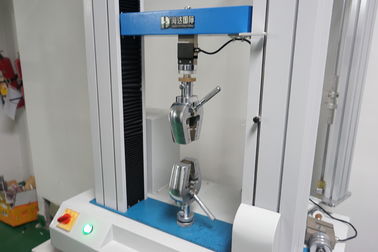

Pictures:
