Double Column Computer Servo High Precision Steel Wire Strength Tensile Testing Machines

Brand Name:	HAIDA
Model Number:	HD-B604B-S
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Capacity:

Max 2000kg

Stroke:

1200mm With Extensometer

Load Accuracy:

≤0.5%

Resolution:

1/250, 000

Unit:

G, Kg, Lb, N, Kn

Test Speed:

0.1-500mm/Min (Adjustable )

Delivery Time:

15 Days After Receive The Deposit

Warranty:

One Year

Supply Ability:

300 Sets per Month Haida

Highlight:

universal tensile testing machine

compressive strength testing machine

Product Description

Double Column Computer Servo High Precision Steel Wire Strength Testing Equipment

Tensile Testing Machine Standards Sharing.pdf

Product Description:
This series of Tensile Tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.
This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.

Main Technical Parameters :

Items	Specification
Sensor	Celtron load cell
Capacity	500, 1000, 2000KG
Unit Switchover	G, KG, N, LB
Display Device	PC
Resolution	1/250,000
Load Accuracy	≤0.5%
Max. Stroke	1200mm (excluding fixture)
Test Speed	0.1-500mm/min (adjustable )
Motor	Panasonic Servo Motor
Screw	High Precise Ball Screw
Elongation Accuracy	0.001mm
Power	1, AC220V, 50HZ
Weight	Approx.155kg
Accessories	One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual

Features of Ultimate Tensile Strength Tester:

1. Motor system	Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).
2. Control system	a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.
3. Data transmission	RS232.
4. Displacement resolution	0.001mm.

5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Languages : English.

Tensile Strength Machines View:

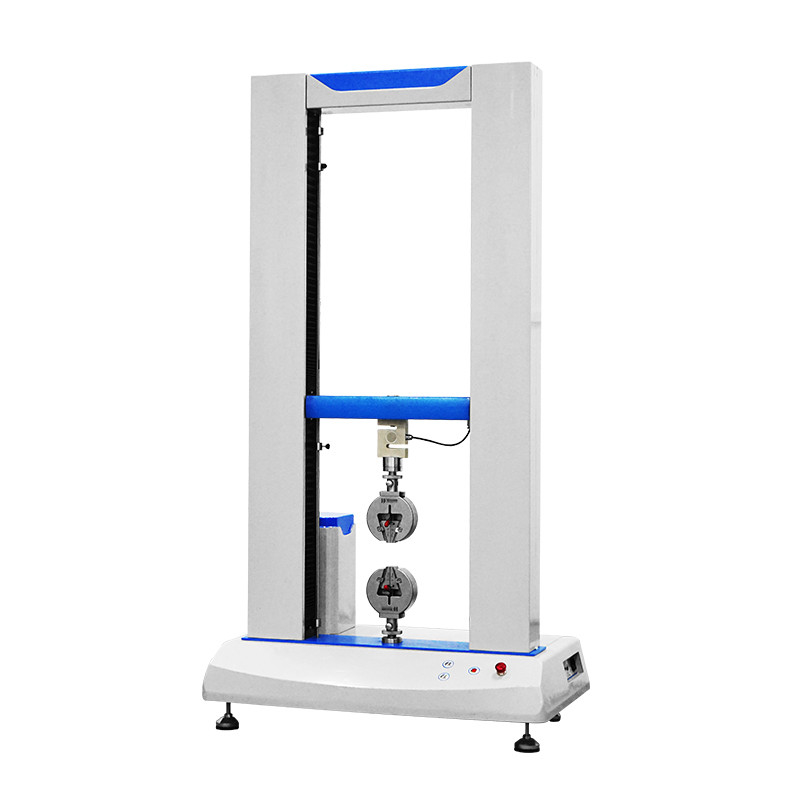

Double Column Computer Servo High Precision Steel Wire Strength Tensile Testing Machines 0

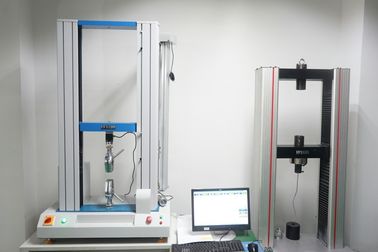

Double Column Computer Servo High Precision Steel Wire Strength Tensile Testing Machines 1
