Customized Temperature Humidity Environmental Testing Equipment For Electronic

Brand Name:	HAIDA
Model Number:	HD-E702-408B
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Display:

LCD

Humid. Range:

20% ~ 98% Percent R.H.

Material:

Stainless Steel Plate(SUS304)

Product Name:

Thermal Cycling Device

System:

Balanced Temperature|Balanced Temperature & Humidity Control System

Temp. Range:

-70°C~150°C

Supply Ability:

300 Sets per Month Haida

Highlight:

humidity and temperature controlled chamber

temperature and humidity chamber

Product Description

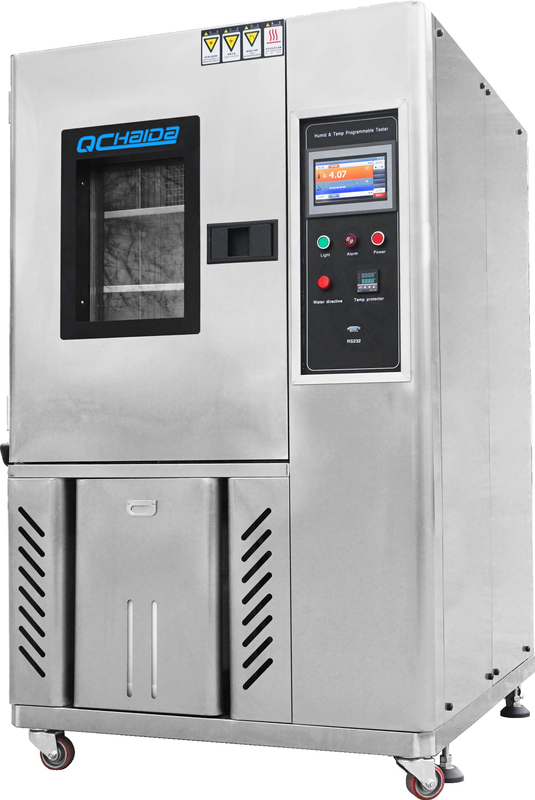

Customized Temperature Humidity Environmental Testing Equipment For Electronic / Food

HD-E702-408-4 Climatic Chamber.pdf

PRODUCT INTRODUCTION

It used to detect the material in a variety of environmental performance equipment and test a variety of materials heat, cold, dry, moisture resistance with -70°C~150°C temperatures and 20~98%R.H..the test place can be customized.

STANDARD FEATURES

Item	Parameter
Inner container	60x85x80cm(WHD)
Outer case	120x177x140cm(WHD)
Temperature range	-70℃ ~ 150℃
Humidity range	20%R•H ~ 98%RH
Weight	400 kg
Temperature and humidity deviation	±0.5℃,±2%R•H
Average difference of temperature and humidity	±2℃,±3%R•H
Heating rate	≤2.5℃/min
Cooling rate	0.7~1.2℃/min
Humidity rate	+2%R.H /-3%R.H
Refrigerant	R23/R404A
Compressor	France taikang
Microcomputer & display screen	Youyi e-560/600
Drive motor	wind flow
Temperature and humidity sensor	Japan
Equipped	RS-232 can be connected to a computer to output test data to save 12 safety protection devices
Electronic 8	Mechanical 4

APPLICATIONS
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect

CHAMBER DESIGN FEATURES
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain

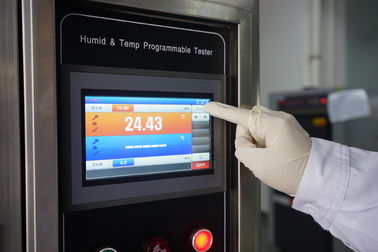

PROGRAMMABLE CONTROLLER
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output

Customized Temperature Humidity Environmental Testing Equipment For Electronic 0

PLC OPERATION

Customized Temperature Humidity Environmental Testing Equipment For Electronic 1

(climatic chamber chamber)Related Products:
Model / Link	Interior Dimensions(W x D x H)	Temperature Range	Humidity range
HD-E702-100	*400500500mm*	-70~+150℃	20~98%R.H.
HD-E702-150	*500500600mm*	-70~+150℃	20~98%R.H.
HD-E702-225	*500600750mm*	-70~+150℃	20~98%R.H.
HD-E702-408	*600800850mm*	-70~+150℃	20~98%R.H.
HD-E702-1000	*10008001000mm*	-70~+150℃	20~98%R.H.
