408L Programmable Environment Temperature Humidity Chambers With BTHC Control System

China 408L Programmable Environment Temperature Humidity Chambers With BTHC Control System supplier

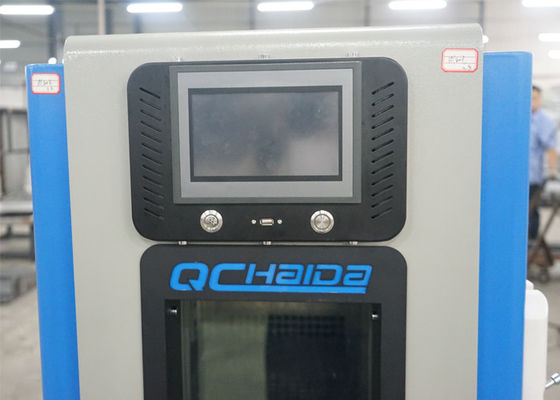

Large Image :  408L Programmable Environment Temperature Humidity Chambers With BTHC Control System

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-E702-408

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Display: LCD Exterior Dimension: 105x175x135cm
Humid. Range: 20 ~ 98 Percent R.H. Interior Dimension: 65×85×80cm
Material: Stainless Steel Plate(SUS304) Product Name: Thermal Cycling Device
System: Balanced Temperature|Balanced Temperature & Humidity Control System



408L Programmable Temperature Humidity Chambers With BTHC Control System

Produce description:

Programmable Environment Temperature Humidity Chambers is equipped with 408L test inner box, spacious test box can be used for different sizes of testing products which need do constant temperature and humidity testing. Constant temperature and humidity test chamber of the test data indicators can reach the temperature -70 ~ + 150 ℃, humidity range of 20 ~ 98% R.H. This type of constant temperature and humidity chamber is the most important feature is equipped with intelligent control system. To ensure that the operation is simple, fast and accurate to achieve the specified constant temperature and humidity parameters, less error.


Application industry (not limited to the following):
1. electronic, electrical, mobile, data
2. communication, instrumentation, vehicle parts
3. Plastic products, metal, food
4. Chemistry, building materials, medical treatment
5. Space and other products to detect the quality of use



Function and Features:

1) Programmable Temperature Humidity Chambers is an reliable test equipment for all kinds of electronic, electrical, electronics, plastics raw materials and devices to do testing such as cold, heat, moisture, resistance to dry and the quality control;

2) The test machine is mainly used in testing the adaptability of electronics, electrical appliances, food, automobile, rubber and plastic, metal and other products, parts and materials in the high and low temperature alternating hot and humid environment when storage, transport and using;

3) Especially suitable for optical fiber, LCD, crystal, inductor, PCB, batteries, computers, mobile phones, rubber, plastics and other product.

4) The new perfect design, the appearance of high texture level, the system extracts Japan, West Germany, the essence of design and manufacture of advanced technology.

5) Balanced temperature humidity control system (BTHC), to PID mode control SSR, so that heated humidification system was equal to heat loss capacity, it could be used long-term stability;

6) All-capillary, automatic load capacity adjustment system technology, more expansion valve system more stable and reliable, precise temperature and humidity control, heating and cooling rate of rapid, steady, uniform, saving valuable time for users.


Main Technical Parameter:


ItemSpecification
Internal dimension(W*D*H) 1000*1000*1000mm
External dimension(W*D*H) 1500*1380*1900mm
Temperature range-70~+150℃
Temperature Accuracy±1℃
Humidity range20~98%R.H. (Refer Image below)
Humidity accuracy±3%R.H
Cooling speed1℃/min in average (without loading)
Heating speed3℃/min in average (without loading)
Internal chamber materialSUS#304 stainless steel, mirror finished
External chamber materialStainless steel with paint spray
Cooling methodAir cooling
Controller

LCD touch screen, programmable control temperature and humidity
Can set different parameter for cyclic test

Insulation material50mm high density rigid Polyurethane foam
HeaterExplosion-proof type SUS#304 stainless steel fins radiator pipe heater
CompressorFrance Tecumseh compressor
LightingHeat resistance
Temperature sensorPT-100 dry and wet bulb sensor
Observation windowTempered glass
Testing holeDiameter 50mm, for cable routing
Safety protection device

Protection for leakage
Over-temperature
Compressor overvoltage and overload
Heater short circuit
Water shortage



Programmable Controller:

1. PIC controller for test chamber

2. Step types include: ramp, soak, jump, auto-start, and end

3. RS-232 interface to connect computer for output
408L Programmable Environment Temperature Humidity Chambers With BTHC Control System

408L Programmable Environment Temperature Humidity Chambers With BTHC Control System


(climatic chamber)Related Products:
Model / LinkInterior Dimensions(W x D x H)Temperature RangeHumidity range
HD-E702-100-7400*500*500mm-70~+150℃20~98%R.H.
HD-E702-150-7500*500*600mm-70~+150℃20~98%R.H.
HD-E702-225-7500*600*750mm-70~+150℃20~98%R.H.
HD-E702-408-7600*800*850mm-70~+150℃20~98%R.H.
HD-E702-1000-71000*1000*1000mm-70~+150℃20~98%R.H.
