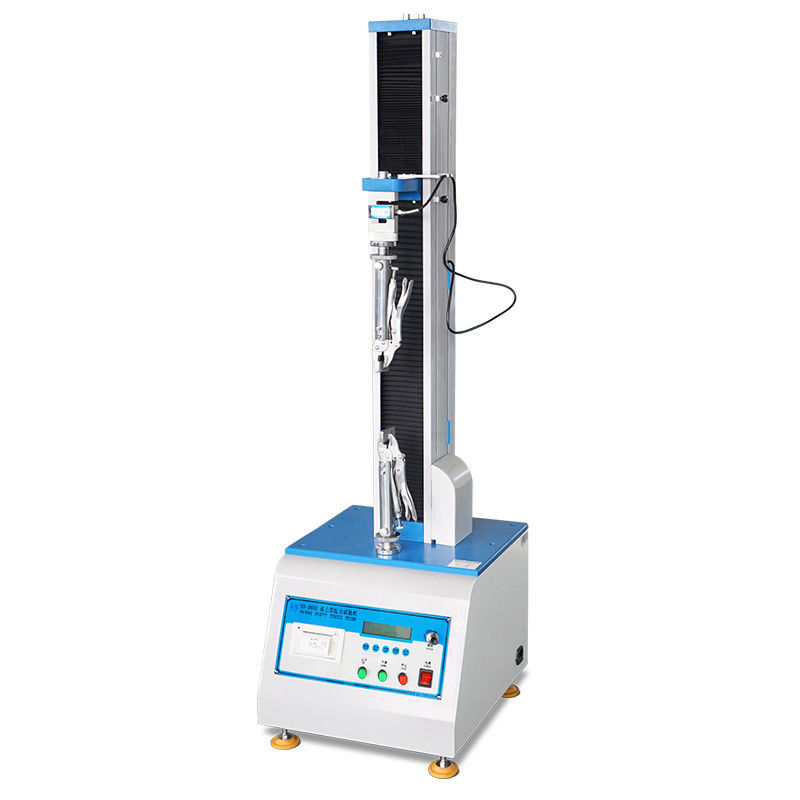

Microcomputer Bend Strength Tensile Testing Machine

Microcomputer Bend Strength Tensile Testing Machine
Microcomputer Bend Strength Tensile Testing Machine
video play

Large Image :  Microcomputer Bend Strength Tensile Testing Machine

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B602
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Load Accuracy: ≤1% Capacity: 5-200kg (Push-pull Gauge Optional)
Max. Stroke: 900mm (include The Fixture) Motor: AC Motor
Power: 1 Phase ,AC 220V Sensor: Load Cell
Test Speed: 50-300mm/min (adjusted By The Knob ) Type: Tensile Tester
Resolution: 1/10,000
High Light:

electronic universal testing machine


compressive strength testing machine

Microcomputer Tensile Testing Machines AC Motor Build-in Printer For Bend Strength


601 602 haida universal test machine.pdf



This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps for paper, tape, film, etc.


Adhesives Tape/Pressure Sensitive Tape:

  • EN 1719: Loop Tack Test
  • ASTM D3654: Shear Adhesion Test
  • ASTM D3759: Tensile &Elongation Test
  • FTM: 180&90 Degree Peel Test, Loop Tack
  • EN 1939, ASTM D3330: 180&90 Degree Peel Test
  • ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test

Main Technical Parameter:

Items Specification
Capacity 5, 10, 20, 25, 50, 100, 200kg
Unit Switchover G, KG, N, LB
Display Device Microcomputer
Resolution 1/100,000
Load Accuracy ≤1%
Max. Stroke 900mm (including fixture)
Test Speed 50-300mm/min (adjustable )
Motor AC Motor
Screw High Precise Ball Screw
Elongation Accuracy 0.001mm
Power 1∮, AC220V, 50HZ
Weight Approx.40kg
Accessories One set tensile clamp, one piece English software CD, one piece operation video CD, one piece English user manual

Product Description:

Microcomputer Display 2KN Material Tensile Testing Machine is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.


Product Features:

1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)

2. Control system: Microcomputer

3. Displacement resolution: 0.001mm

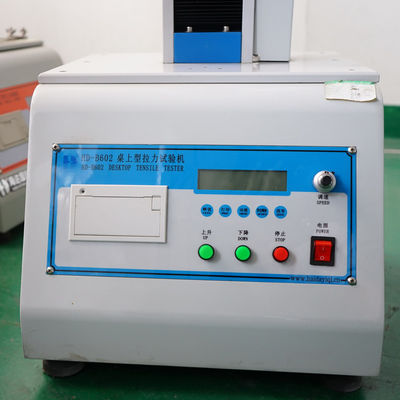

4. Microcomputer Display 2KN Material Tensile Testing Machines is with build-in printer, can print the testing date, time, maximum, average and minimum value.


                                                                           Microcomputer Bend Strength Tensile Testing Machine 0
