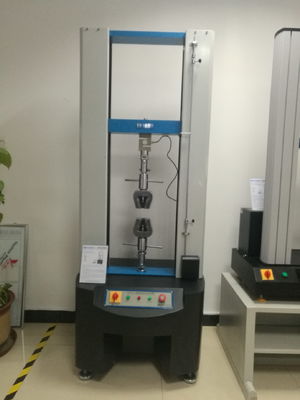

Computer Control Tensile Testing Machines , 5T Compression Tensile Strength Tester

Computer Control Tensile Testing Machines , 5T Compression Tensile Strength Tester
Computer Control Tensile Testing Machines , 5T Compression Tensile Strength Tester
video play

Large Image :  Computer Control Tensile Testing Machines , 5T Compression Tensile Strength Tester

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HAIDA
Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
Model Number: HD-B615-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida
Detailed Product Description
Power: Electronic Sensor: Load Cell
Port: LOAD CELL Strength Sensor Capacity: 5T
Unit Switch: G,kg, N, LB Display Configuration: Computer Display
High Light:

universal tensile testing machine

,

compressive strength testing machine

Computer Control Tensile Testing Machines , 5T Compression Tensile Strength Tester





Product Description:


Computer Control Tensile Testing Machines , 10T Compression Tensile Strength Tester is used to detect the physical and mechanical strength of a variety of materials, performance testing. Configured with intelligent operating system, the test force value, especially for high-strength materials, stretching the length of the trip.

Detection Function:

  1. Universal test
  2. Tensile strength test
  3. Bending strength test
  4. sheatring test
  5. Tear fatigue test
  6. 3 points bending test
  7. Compressive test
  8. Other functional testing ...

Application Industry:


1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others...


Benefit Features:

  1. TM 2101 intelligent automatic detection of the operating system, (can adapt to all current PC)
  2. High-tech, low noise
  3. Humanized industrial design, easy to place and transport
  4. The world famous brand core precision components
  5. Security protection system
  6. Valid test trip length (modifiable)

Instruction:


1. Power switch: main switch of the machine
2. Power indicator light: The power indicator light will be on when power on. It will be off when power off or electricity is not ok.
3. Emergency switch: This key can help to stop the machine immediately when there is an abnormality.
4. Speed adjuster: the speed adjust button to pull the upper fixture
5. Upper and lower fixture
6. Length sensor: it will sensor the resistant strength when the lower panel goes upward, and will output the strength to the display screen.


Specification Table:



Item Description
Max. Force 5T (50KN)
Load cell Germany brand load cell for high accuracy
Control system PC with windows 7 system
Motor Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Stoke 1000mm including fixture
Load cell Resolution 1/250,000
Load Precision within ±0.5%
Test speed 0.1~300mm/min (adjustable)
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features

E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat


Computer Control Tensile Testing Machines , 5T Compression Tensile Strength Tester 0




TEST SOFTWARE – TM 2101


Universal testing machine TM2101 control system data display:
1. Max. force, 2. speed, 3. sample information, 4. strength(Kpa, Mpa, N/mm, N/mm2) etc…

1. Load- elongation, 2. Elongation-time, 3. Time-elongation, 4. Stress-strain.

Computer Control Tensile Testing Machines , 5T Compression Tensile Strength Tester 1
