Brand Name:	HAIDA
Model Number:	HD-B604-S
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Display Device:

Accuracy:

±0.5%

Capacity:

100,300,500, 1000, 2000KG

Elongation Accuracy:

0.001mm

Motor:

Panasonic Servo Motor

Sensor:

Celtron Load Cell|load Cell

Test Speed:

0.1-500mm/min (adjustable )

Type:

Tensile Tester

Supply Ability:

300 Sets per Month Haida

Highlight:

electronic universal testing machine

compressive strength testing machine

Product Description

Multifunction Servo Tensile Strength Testing Machine Of Electric Tensile Tester

Application:

Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
Deformation under defined load: Test deformation under defined load of tested sample
Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Product Features:

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation

3. Data transmission: RS232

4. Displacement resolution: 0.001mm

Main Technical Parameter:

Items	Specification
Sensor	Celtron load cell
Capacity	100,300,500, 1000, 2000KG
Unit Switchover	G, KG, N, LB
Display Device	PC
Resolution	1/250,000
Load Accuracy	≤0.5%
Max. Stroke	1200mm (excluding fixture)
Test Speed	0.1-500mm/min (adjustable )
Motor	Panasonic Servo Motor
Screw	High Precise Ball Screw
Elongation Accuracy	0.001mm
Power	1∮, AC220V, 50HZ
Weight	Approx.155kg
Accessories	One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual

Pictures:

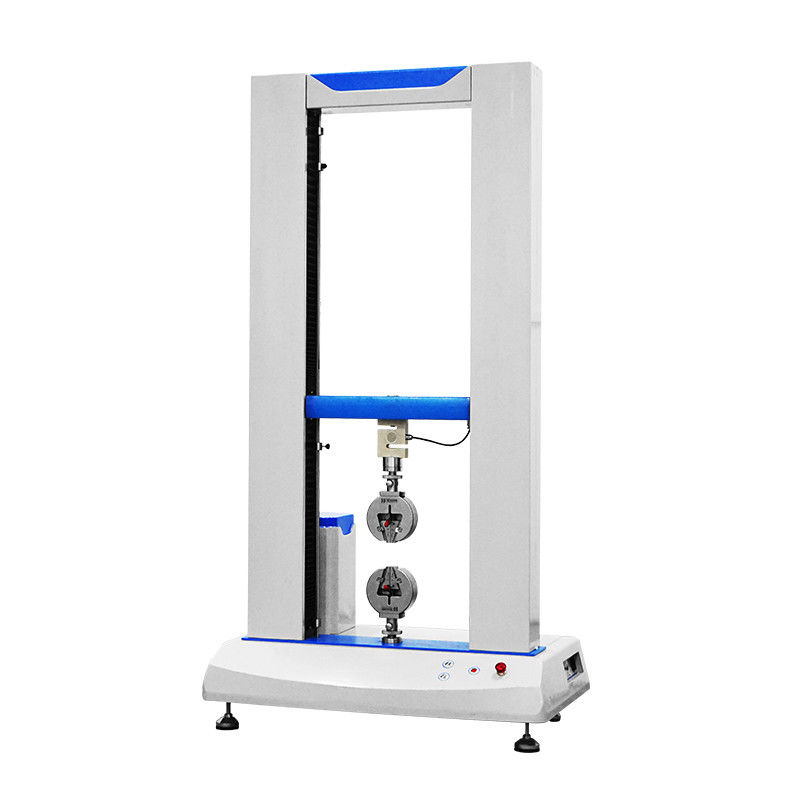

Multifunction Servo Tensile Strength Testing Machine Of Electric Tensile Tester 0
