| Load Accuracy: | ≤1% | Capacity: | 5, 10, 20, 25, 50kg |
|---|---|---|---|
| Elongation Accuracy: | 0.001mm | Max. Stroke: | 900mm (including Fixture) |
| Motor: | AC Motor | Power: | High Precise Ball Screw |
| Resolution: | 1/100,000 | Sensor: | Load Cell |
| Type: | Tensile Tester | Port: | 0.001mm |
| High Light: | universal tensile testing machine,compressive strength testing machine |
||

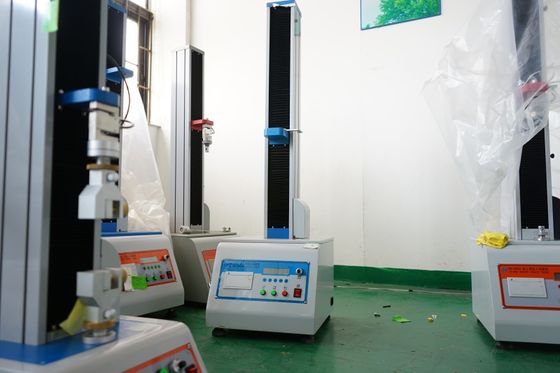

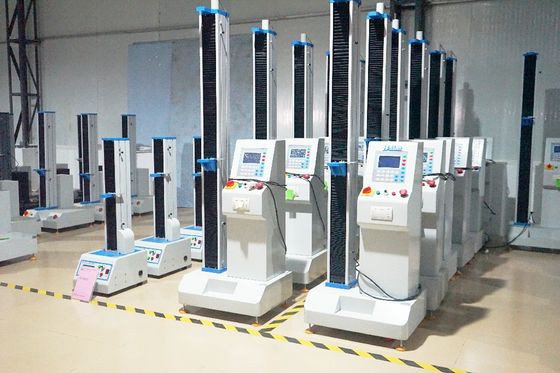

High Precise Ball Screw Tensile Testing Machines 50kg With Microcomputer Display Device
Main Technical Parameter
| Item | Description |
| Max. Force | 50 kg (500N) |
| Load cell | China brand load cell |
| Control system | Controller with LED |
| Motor | AC Motor, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 900mm including fixture |
| Load cell Resolution | 1/100,000 |
| Load Precision | ≤1% |
| Test speed | 20~300mm/min (adjustable) |
| Data display | Max. break force |
| Safety features |
Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Product Description:
High Precise Ball Screw 2KN Widely Used Tensile Testing Machine is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.
Use:
ensile Testing Machine is suitable for all kinds of physical and mechanical properties of plastic sheet, pipe, profile, plastic film and rubber, wire and cable, steel, glass fiber, rope and chain. Different performance of the universal testing machine equipped with different fixtures using different materials
Product Features
1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)
2. Control system: Microcomputer
3. Displacement resolution: 0.001mm
4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.
Optional Accessories :
Clamps:
Calibration Certificate
Start-Up
Start-up and training
Start-up, training and instrument calibration for the above equipments
Ø Start-up of the system by a qualified service technician
Ø Training session on the operation and maintenance of the system
Ø Calibration with certificate
