Single Column Leather Tensile Testing Machines 2KN With Microcomputer Display

Brand Name:	HAIDA
Model Number:	HD-B602
MOQ:	1 Set
Price:	Negotiable
Packaging Details:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China (Mainland)

Certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Accuracy:

±0.5%

Capacity:

5, 10,15, 20, 25, 50, 100, 150,200kg

Elongation Accuracy:

0.001mm

Max. Stroke:

900mm (including Fixture)

Motor:

AC Motor

Power:

50-300mm/min (adjustable )

Resolution:

1/100,000

Sensor:

Load Cell

Type:

Tensile Tester

Port:

1000mm (including Fixture)

Supply Ability:

300 Sets per Month Haida

Highlight:

electronic universal testing machine

compressive strength testing machine

Product Description

Single Column Leather Tensile Testing Machines 2KN With Microcomputer Display

Main Technical Parameter:

Items	Specification
Capacity	5, 10, 15,20, 25, 50, 100,150, 200kg
Unit Switchover	G, KG, N, LB
Display Device	Microcomputer
Resolution	1/100,000
Accuracy	±0.5%
Max. Stroke	900mm (including fixture)
Test Speed	50-300mm/min (adjustable )
Motor	AC Motor
Screw	High Precise Ball Screw
Elongation Accuracy	0.001mm
Power	1∮, AC220V, 50HZ
Weight	Approx.40kg
Accessories	One set tensile clamp, one piece English software CD, one piece operation video CD, one piece English user manual

Product Description:

This Tensile Testing Machines is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.

This series of Tensile Testing Machines is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

Product Features:

1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)

2. Control system: Microcomputer

3. Displacement resolution: 0.001mm

4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.

Product images:

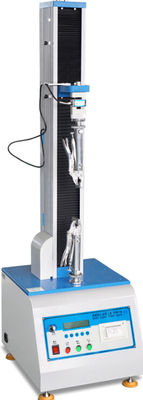

Single Column Leather Tensile Testing Machines 2KN With Microcomputer Display 0

Single Column Leather Tensile Testing Machines 2KN With Microcomputer Display 1
