Product Details:
Payment & Shipping Terms:
|
| Display: | LCD | Exterior Dimension: | 110x120x167cm |
|---|---|---|---|
| Humid. Range: | 20 %~ 98% R.H. | Interior Dimension: | 50×75×60cm |
| Material: | Stainless Steel Plate(SUS304) | Product Name: | Thermal Cycling Device |
| System: | Balanced Temperature & Humidity Control System | ||
| High Light: | humidity temperature test chamber,humidity and temperature controlled chamber |
||

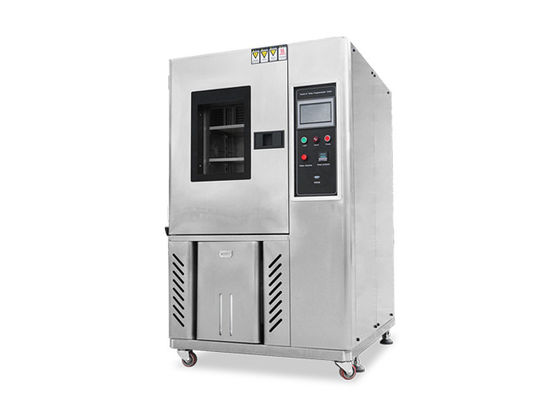

LCD Touch Screen Temperature Humidity Chambers In Testing Electrical Appliance
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 1300*1570*1950mm
Power supply source: three-phase, 380V±10%, 50Hz (can be appointed)
Gross Weight: 400kg
HS Code: 8479899990
STANDARD FEATURES
| Model | HD-E702-225B Thermal Cycling Device |
| System | Balanced Temperature & Humidity Control System |
| Temp. range | -70°C~150°C,-20℃～150℃,-40℃～150℃ |
| Humid. range | 20% ~ 98% percent R.H. |
| Temp. & Humid. deviation | ± 0.5°C; ± 2 percent RH |
| Temp. & Humid. average difference | ± 2°C; ± 3 percent RH |
| Resolution | 0.1°C, 1 percent, P.I.D control |
| Heating rate | ≤2.5℃/min |
| Cooling rate | 0.7~1.2℃/min |
| Interior dimension(W×D×H) | 50×75×60cm |
| Exterior dimension(W×D×H) | 110x120x167cm |
| Interior material | Stainless steel plate(SUS304) |
| Exterior material | Stainless steel plate(SUS304) |
| Insulation | Rigid foam |
| Refrigeration system | Air cooled, Hermetic compressor, single stage refrigeration system. |
| Display | LCD |
| Safety devices | No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm |
| Accessories | Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp. |
| Weight | Approx. 300 kg |
| Power | AC220V±10 percent 50/60Hz |
APPLICATIONS
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
CHAMBER DESIGN FEATURES
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain
PROGRAMMABLE CONTROLLER
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
HUMIDITY RANGE
| (climatic chamber chamber)Related Products: | |||
| Model / Link | Interior Dimensions(W x D x H) | Temperature Range | Humidity range |
| HD-E702-100 | 400*500*500mm | -70~+150℃ | 20~98%R.H. |
| HD-E702-150 | 500*500*600mm | -70~+150℃ | 20~98%R.H. |
| HD-E702-225 | 500*600*750mm | -70~+150℃ | 20~98%R.H. |
| HD-E702-408 | 600*800*850mm | -70~+150℃ | 20~98%R.H. |
| HD-E702-1000 | 1000*800*1000mm | -70~+150℃ | 20~98%R.H. |
