Product Details:
Payment & Shipping Terms:
|
| Frame Capacity: | 500kg | Load Cell Brand: | Load Cell Brand Germany Brand Load Cell For High Accuracy 500kg (5,10,50,100,200kg Are Optional) |
|---|---|---|---|
| Control System: | LCD With Build-in Printer /PC With Windows 7 System | Motor: | Panasonic Servo Motor W/AC Variable Speed Drive System, High-precision Mechanical Ball Screw Rod |
| Force Reading: | Kgf, Ibf, N, KN, T Etc | Vertical Test Space: | 1400mm Including Fixture |
| Test Speed: | 0.1~500mm/min (adjustable) | Software: | TM 2101 |
| Curves Display: | Load- Elongation, Elongation-time, Time-elongation, Stress-strain | Data Display: | Max. Force, Speed, Sample Information, Strength(Kpa, Mpa, N/mm, N/mm2) Etc… |
| High Light: | Electronic Universal Testing Machine,Single Column Universal Testing Machine,Bending Resistance Tensile Testing Machines |
||

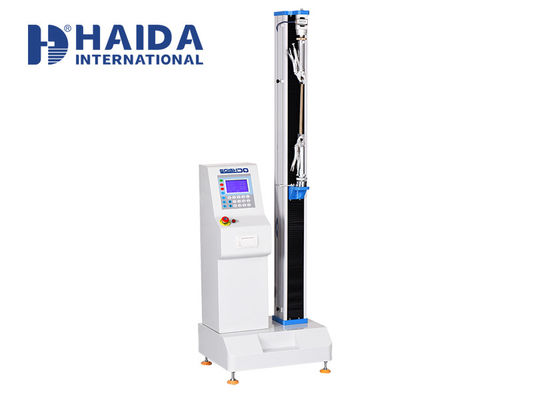

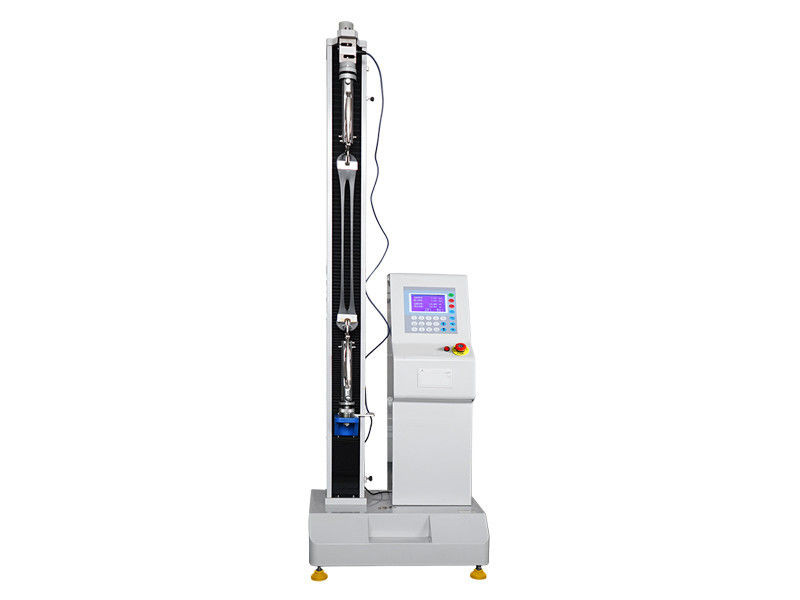

Single Column Metal Bending Resistance Electronic Tensile Testing Machine
APPLICATIONS
Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
Deformation under defined load: Test deformation under defined load of tested sample
Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
STANDARD FEATURES
| Item | Description |
| Frame capacity | 500kg |

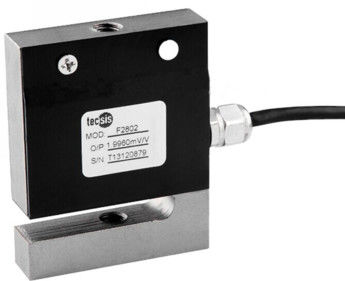

| Load cell brand |
Germany brand load cell for high accuracy 500kg (5,10,50,100,200kg are optional) |
| Load accuracy | 0.5% F.S |
| Control system | LCD with build-in printer /PC with windows 7 system |

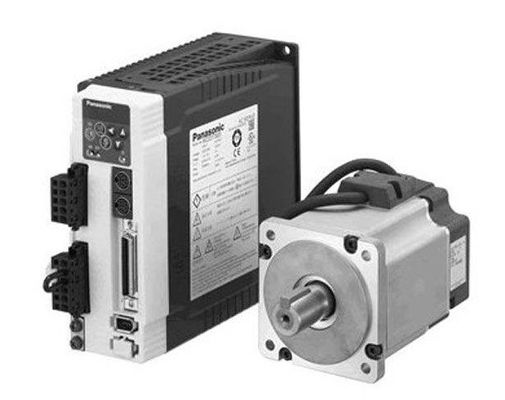

| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1400mm including fixture |
| Test speed | 0.1~500mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
User setting page
Curves display picture
Test result picture
Test curve page
