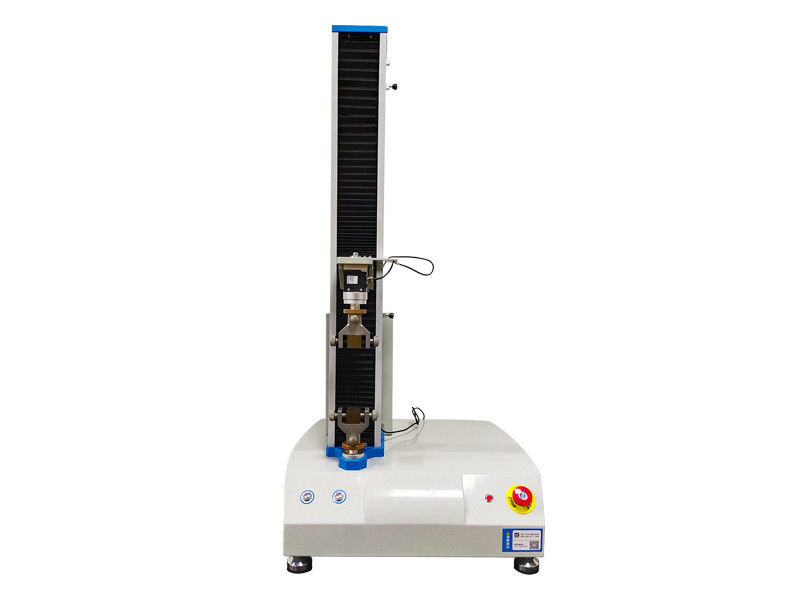

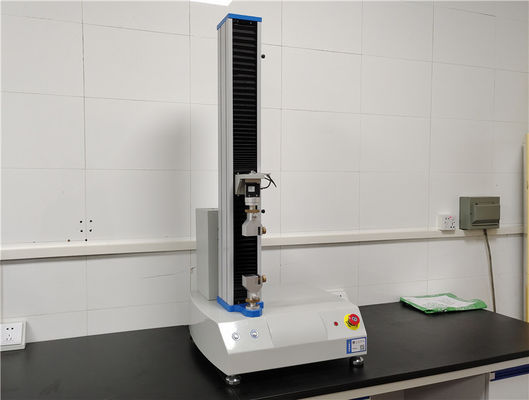

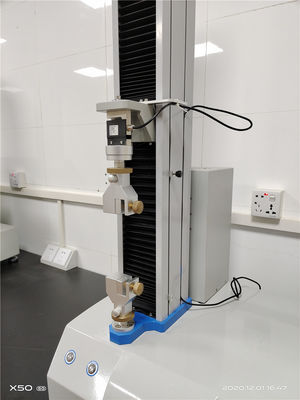

Double column Computer Servo Universal Testing Machine Compression Test For Low Viscosity Tests
Application:
HD-B609C-S has a wide range of applications and can be equipped with more than 100 different fixtures for users to choose from, which can meet the test requirements of more than 1,000 materials; according to the different materials of users, Haida also provides customized services to meet different users Test requirements.
HD-B609C-S computer servo tensile testing machine is professionally suitable for releases stretching, peeling, deformation, tearing, bonding, piercing force, opening force, low-speed unwinding force, pull-out force and other performance tests of plastic films, protective film, composite materials, flexible packaging materials, plastic hoses, adhesives, adhesive tapes, stickers, medical patches, medical equipment, combination cover, metal foil, diaphragm, backing material, non-woven fabric, rubber, paper and so on products.
Features:
Component improvement and upgrade, functional structure optimization
l The selection of high-quality components such as small-capacity sensors, Panasonic servo motors(multi-function type) and matching driver, as well as Muteng planetary reducer(silent type) to make the low-viscosity testing data more accurate and reduce errors
l Improve abnormal noise to meet the requirements of low viscosity test
l Cancel the touch screen and connect only to the computer to avoid the interference of test data
l Design the operational function and mark of manual ascent and descend to make the instrument more convenient to use
Standards:
TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3, GB/T4857.4
Technical Parameters:
Item | Description |
Capacity | 5kg Transcell load cell(USA) |
Motor | 400w Panasonic servo motor |
Driver | 400w Panasonic servo driver |
Screw | Ball screw |
Control mode | Computer & Software |
Speed | 0.1-500mm/min, adjustable |
Stroke | 900mm(excluding fixture) |
Load resolution | 1/250,000 |
Load accuracy | ≤0.5% |
Testing force range | 1g-5kg |
Unit | gf/kgf/N//kN/LBf/T |
Dimension | (L*W*H)515*520*1250mm |
Load cell capacity | 5KG |
Bearing/Bearing steel | 32004(Imported NSK) |
Protective cover | Nylon cloth with size of 110*15*1500mm |
Circuit board | HD-002-A |
Weight | About 68KG |
Power supply | 1∮ AC 220V |
Configuration:
Configuration | Name | Description |
Standard accessories | Document | Qualification certificate*1, operation manual*1, warranty card*1 |
Power cord | National standard / British standard / European standard / American standard / South Africa, etc. | |
Load cell | Transcell 5KG | |

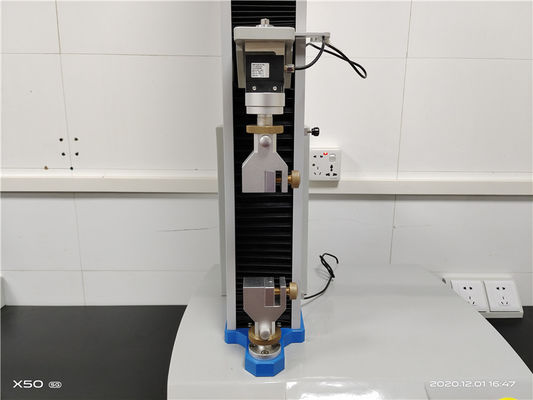

Aluminum plane fixture (180 degree peeling fixture) | Without teeth (adjustable on both sides) | |
USB cable | YDL | |
U Disk(YDL software) | Haida 1G | |
Optional accessories | Computer | E96X: CPUG4900/ original memory stick 4G/ hard disk 1TB/ display 19.5 inches |
90 degree peeling fixture (lower fixture) | Upgrade | |
Initial adhesion testing fixture | Steel sheet type | |
Peel test steel sheet | 1.5mm thick | |
Manual cutting knife | 5 sets of 25mm upgrade | |
Manual rolling roller | Upgrade | |
Protective cover | Fixture protective cover | |
U Disk | Haida 4G | |
Notes | Recommend load cells and fixtures according to customer needs |
Explanation and conclusion of low viscosity test comparison
Comparison group 1 | Measured value | |||||
Testing item | Comparison condition 1 | Comparison condition 2 | Sample force range | Min. peeling force(gf) | Average peeling force(gf) | Conclusion |
180º peeling comparison | KJ1065A | KJ peel test steel sheet | 2 gf | 0.300 gf | 1.139 gf |
There is little difference between Haida and KJ low viscosity test results: 1. The minimum peel force is not equal to 0 and very close, the test force value is not broken 2. The average peel force is close, and the performance is close |
HD-B609C-S
|
HD peel test steel sheet
|
2 gf | 0.305 gf | 1.31 gf |
Product upgrade comparison and icons

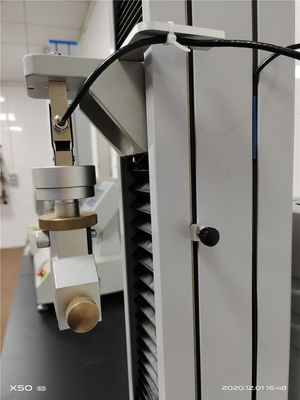

1,About structural upgrade——limited switch
Limit switch and electric board support frame interference | Move the position away, and the interference is removed |
Modification: The circuit design has been changed to upper and lower layers, and a support base has been added |
2,About structural upgrade——Up and down operation button
No operation button on the machine | Add up and down buttons to improve operation convenience |
New: original touch screen, no manual operation |

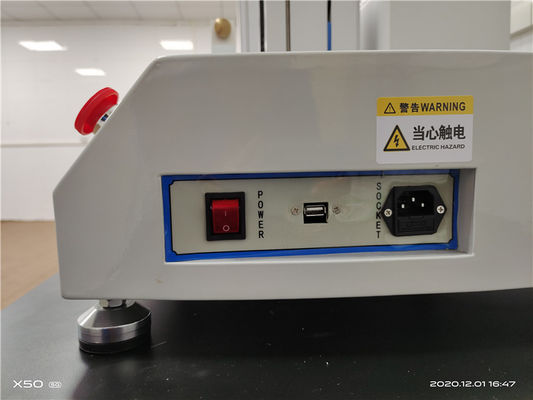

3,About structural upgrade——switch panel
It’s not convenient for maintenance as interference occurs | Changed to a drawer-type partition design, which is convenient for maintenance and disassembly; it can effectively isolate strong and weak electricity |
Modification/new addition: The original single circuit power distribution design is not convenient for maintenance; there is no better separation between strong and weak currents |
4,About structural upgrade-bottom plate
The bottom ribs block the space above | Remove |
Reduction: Originally designed to strengthen the base, it is not very useful now; it hinders maintenance |
5,About fixture upgrade——90 degree peeling fixture
Modification: 1. Add mounting holes to ensure that the length of the beam is 90 degrees to the fixture
3. Add auxiliary lines to ensure that the sample can move at a constant speed |
6.About fixture upgrade——180 degree peeling fixture
Single side adjustable aluminum alloy-AL6061 | Double-sided adjustable aluminum alloy-AL7061 |
Modification: 1. The fixture design is adjustable on both sides to ensure that the upper and lower fixture centers are on the same line 2. Material changes, improve the appearance of the fixture surface 3. Increase the scale of the fixture to clearly adjust the size |
