Product Details:
Payment & Shipping Terms:
|
Humidity Temperature Test Chamber: | -50c To +100c | Humidity Range: | 40% To 98% Rh |
---|---|---|---|
Dimension (Internal) (w X D X H): | 1500 X 1500 X 3000 Mm | Dimension (External) (w X D X H): | 2850 X 1700 X 3200 Mm |
Ramp: | Variable, Temp. 0~5c / Min & Humidity 0~5%/Min | Accuracy: | Temp. ±1c, Humidity ±2.5%Rh |
Interior Walls: | Stainless Steel 304 | Exterior Walls: | Cold Rolled Stell Plate With Baking Finish |
Highlight: | Walk In Temperature Humidity Chambers,Temperature Humidity Chambers High Precision,Simulated Temperature Humidity Chambers |

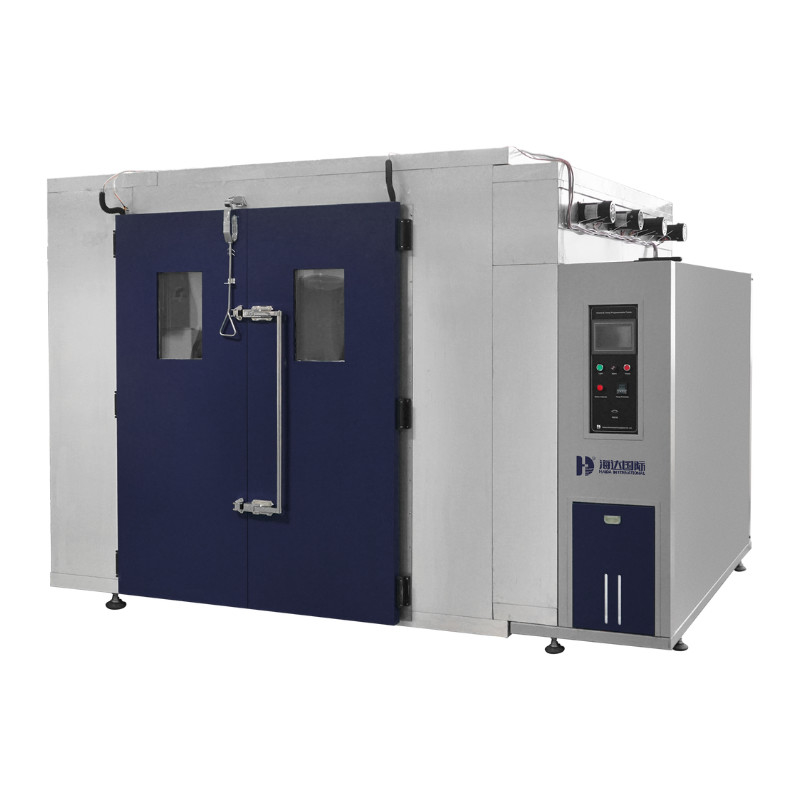

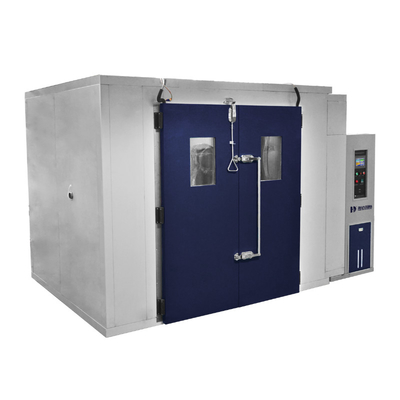

High Precision Large Environmental Simulated Walk-In Humidity Temperature Test Chamber
Product Description:
Walk-in Temperature Humidity Testing Room are environmentally conditioned rooms that may be configured to almost any size or footprint. We also called Environmental Chambers. Walk-in chambers are useful when testing large objects and performing batch testing. Of all environmental test chambers, Walk-in chambers are typically the largest in size.
Specification |
HD-E705-8 |
Temperature Range |
-50c To +100c |
Humidity Range |
40% To 98% Rh |
Dimension (Internal) (w x d x h) |
1500 x 1500 x 3000 Mm |
Dimension (External) (w x d x h) |
2850 x 1700 x 3200 Mm |
Ramp |
Variable, Temp. 0~5c / Min & Humidity 0~5%/Min In Average, No Load |
Accuracy |
Temp. ±1c, Humidity ±2.5%Rh |
Interior Walls |
Stainless Steel 304 |
Exterior Walls |
Cold Rolled Stell Plate With Baking Finish |
Temperature & Humidity Measurement And Controller |
32 Bit Control And Monitoring System. Interface Facility With Rs232 Programmable Temp. Humid. Controller |
Viewing Window |
Multi Pane Glass Window Size |
Port Holes |
50 Mm Diameter For Wire Routing |
Power Supply Requirement |
Three Phase, Ac380 v ± 10 %, 50 Hz |
Sound Pressure Level |
<72db (a) |
Condenser Cooling |
Water Cooled |
Product Performance & Features:
1. Temperature humidity test room has a big temperature / humidity range and can meet user’s entire requirement. It adapts to unique balance thermoregulation & humidifying way and can get a safety, precise temperature humidity environment. It has stability, balance heating, humidifying function and also can proceed in high precision, high stability temperature humidity control.
2. Temperature humidity test room is equipped with high precision intelligentized thermoregulator, temperature and humidity adapt LCD display control 7551 program instrument ( it also can use OYO-5461 according to user requirement), can choose the temperature humidity recode instrument.
3. The interior door is equipped with big observation window which convenient for viewing the test status of specimen.
4. Temperature humidity test room can choose computer for remote control according to the function
5. Automatic select the refrigerating circuit, the automatic control instrument can automatic choose operate refrigerating circuit’s function according to the temperature set value, and direct-on line starting refrigerating machine in high temperature condition which can cooling directly.
6. This product is equipped with advanced safety protection device --- residual current device; overheat protector, phase failure protector, water-break protector.
General Technical Specification
15 thermal cyclic chamber
15.1 chamber with internal air circulation, and all the heaters and cooling coil located behind/below the false sheet of the chamber and outside the working space
16 interior
16.1 the conditioning with air circulation to maintain uniform temperatur
16.2 interior have provision for arranging stainless steel
17 insulation
17.1 insulation is asbestos-free csc-free, with low thermal conductivity, polyrthene pu foam
18 cooling system
18.1 cascade type, refrigeration system with hermetically sealed refrigeration
cycles with environment and ozone friendly and chloride free refrigeration
19 door
19.1 lockable front opening, with double door latch easy to open
