CE 220V Customized Single Column Universal Test Machine

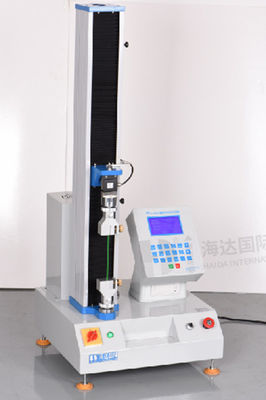

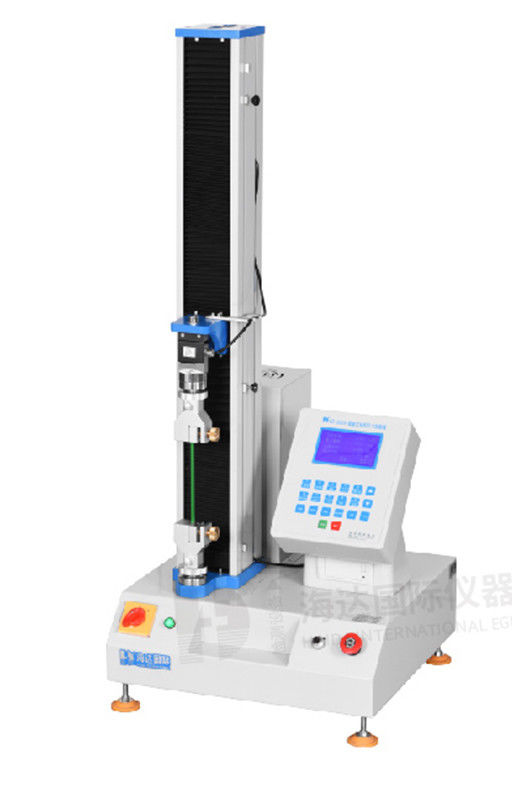

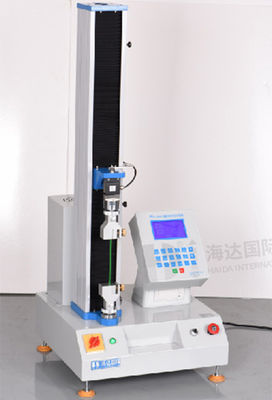

Large Image : CE 220V Customized Single Column Universal Test Machine

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	Haida
Certification:	CE ISO
Model Number:	HD-B609

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Export wooden case
Delivery Time:	15 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30 Sets per Month Haida

Contact Now

Detailed Product Description

Frame Capacity:	200kg	Load Cell Brand:	China Brand, 200kg (5,10,50,100kg Are Optional)
Load Accuracy:	1% F.S	Control System:	LCD With Build-in Printer /PC With Windows 7 System
Vertical Test Space:	900mm Including Fixture
Highlight:	Customized Universal Test Machine , 220V Universal Test Machine , Customized Single Column Universal Test

Economic Table Type Electrical Single Column Universal Test Machine

GENERL SPECIFICATIONS

Estimated Packaging Dimensions: (W*D*H) 630*630*1400mm

Power supply source: single-phase, 220V, 50/60Hz (can be appointed)

Estimated Gross Weight: 120kg

HS Code: 9024800000

STANDARD FEATURES

Item	Description
Frame capacity	200kg
Load cell brand	China brand, 200kg (5,10,50,100kg are optional)
Load accuracy	1% F.S
Control system	LCD with build-in printer /PC with windows 7 system
Motor	Adjustable-speed motor with reduction box, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Vertical test space	900mm including fixture
Test speed	50~300mm/min (adjustable by rotary knob)
Software	TM 2101
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm²) etc…
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

APPLICATIONS

Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
Deformation under defined load: Test deformation under defined load of tested sample
Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

HAIDA TEST EQUIPMENT TEST STANDARDS FOR SHARING

Adhesives Tape/Pressure Sensitive Tape

EN 1719: Loop Tack Test
ASTM D3654: Shear Adhesion Test
ASTM D3759: Tensile &Elongation Test
FTM: 180&90 Degree Peel Test, Loop Tack
EN 1939, ASTM D3330: 180&90 Degree Peel Test
ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test

Adhesive

ASTM D903: Peel & Stripping Test
ASTM D1002: Shear Strength (Adhesive for metal to metal)
ISO 4587: Tensile lap-shear strength (Rigid-to-rigid bonded assemblies)

Film/ Plastic Film

ASTM D882: Tensile Test
ASTM F1306: Puncture Test
ASTM D1938: Trouser Tear Test
ASTM D2732: Thermal Shrinkage Test
ASTM D1709, ISO 7765-1: Free-Falling Dart Method
ASTM D1894: Static and Kinetic Coefficients of Friction
ASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test

Plastic& Plastic Pipe

ISO 180: Izod Impact Test
ISO 9966: Ring Stiffness Test
ISO 179: Charpy Impact Test
ISO 4892: Weathering Aging Test
ASTM D3163: Plastic Lap-Shear Test
ISO 4422, ISO 3127: Pipe Impact Test
ASTM D4565, ISO 11357, EN 728: DSC/OIT
ISO 75: Heat Deflection Temperature (HDT)
ASTM D1598: Hydrostatic Pressure and Burst Test
ISO 1133, ASTM D1238: Melt Flow Rate Test (MFR/MVR)
ASTM D790, ISO 178, ISO 14125, ASTM D6272: Bend Test
ISO 306, ASTM D1525: Vicat Softening Temperature (VST)
ASTM D882, ASTM D 638, ISO 527, ASTM D1708: Tensile Test
