Product Details:
Payment & Shipping Terms:
|
| Max. Force: | 400~3000Lb | Control System: | Touch Screen Controller, Windows 7, RS-232 Interface |
|---|---|---|---|
| Load Precision: | Within ±0.25% | ||
| High Light: | 3000Lb clamp force tester,600kg clamp force tester,3000Lb force test machine |
||

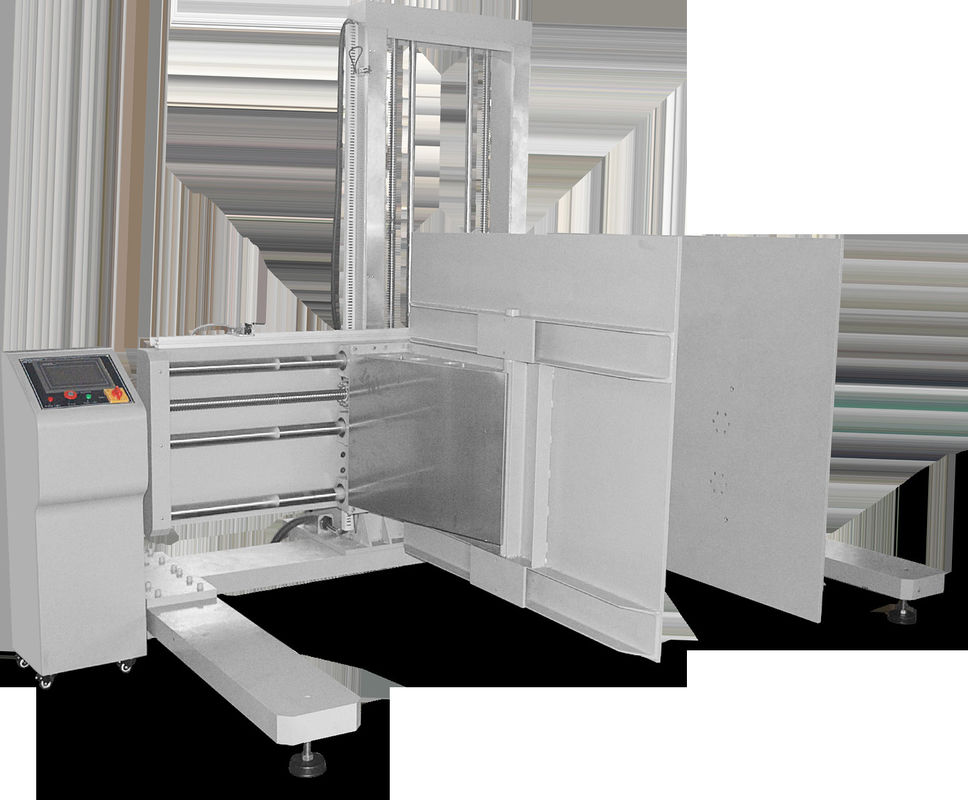

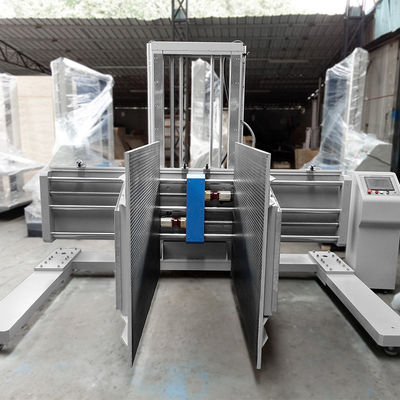

Customized Electrical Clamp Force Test Machine
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 2240*2920*2320mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 3640kg
STANDARD FEATURES
| Item | Description |
| Max. Force | 400~3000Lb |
| Maximum specimen weight | 600kg (can be customized) |
| Load cell | 4 load cell for highest accuracy |
| Control system | Touch screen controller, Windows 7, RS-232 interface |
| Motor | Panasonic servo motor w/DC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Load cell Resolution | 1/250,000 |
| Load Precision | within ±0.25% |
| Parallelism of Platens | Parallel within±2.5mm |
| Clamping plate size | Height 48inchX depth 48inch |
| Clamping plate adjustable height | 0~1000mm |
| Clamping plate adjustable width | 200~2000mm |
| Base plate dimension | 2200X 2100mm |
| Test speed | 0.25-2.5mm/sec (according ISTA 6- SAMS CLUB) |
| Software | TM 2101 |
| Data display | Load, displacement, speed, loading rate and elapsed time |
| Function | The clamp can be up and down |
| Clamping plate requirement | Make the two clamping boards flat and non-deform under work condition (2000 Pounds) and make clamping boards’ parallel and clamping board and land vertical. Clamping board is thicker than 25mm. |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
DESIGN STANDARDS
ASTM D642 ISTA 6- SAMS CLUB ISTA 3J
Contact Person: Kelly
